RADIAL ENGINEERING  |  SKU: 15850

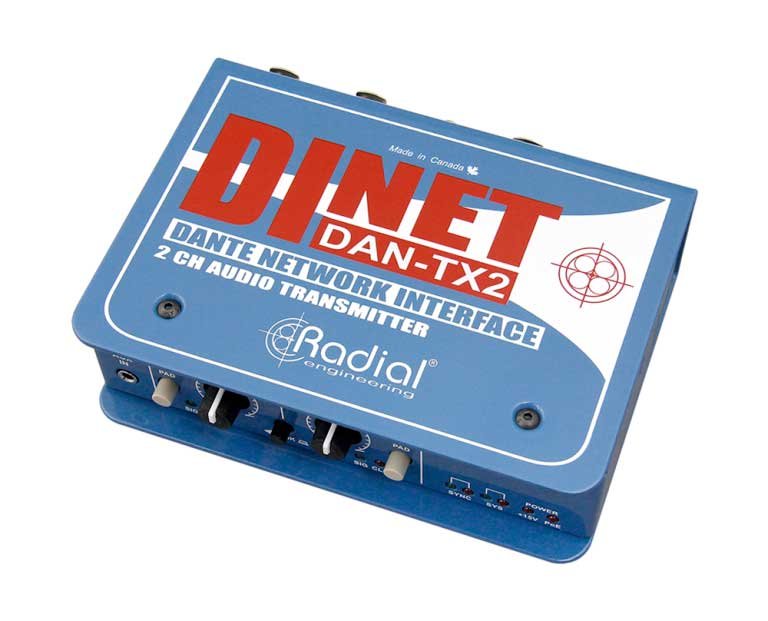

DiNET DAN-TX2

Dante network transmitter, stereo line level XLR/TRS inputs with level controls


$689.99 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Seamless network integration The DiNET DAN-TX2 makes it easy to transmit two channels of high quality analog audio over a Dante or AES67-compliant network. Multiple input options are provided, with Balanced XLR/TRS connectors for professional audio sources, RCA jacks for line level consumer devices, and a 3.5mm aux input for connection to laptops, smartphones, and tablets. Trim controls and pad switches are included for each channel, with a link switch to simplify control for stereo sources. The RJ45 network connection is compatible with Neutrik etherCON connector carriers to prevent accidental disconnection and protect cable terminations, and redundant powering is available for critical applications by using the included external power supply and Power over Ethernet (PoE) simultaneously. The DAN-TX2 can be mounted in 19" equipment racks with the optional SA series rackmount adaptor kit.

Features

Connect any line level source to a Dante network

XLR, 1/4 TRS, RCA and 3.5mm input jacks

24bit/96kHz analog to digital conversion

Handles signal levels up to +24dBu

Compliant to AES67 spec

Specifications

Specifications


Audio circuit type: High current balanced active input device
Number of channels: 2
Frequency response: 20Hz-20kHz
Dynamic range: >103dB
Total harmonic distortion: 0.008% @ -6dBfs
Intermodulation Distortion: 0.0017% -10dBfs
Input Impedance: 40kOhm (Balanced); 20kOhm (Unbalanced)
Equivalent Input Noise: -98dB
Noise: 44.1kHz, 48kHz, 88.2kHz, and 96kHz
Maximum Input: +28dBu

Features

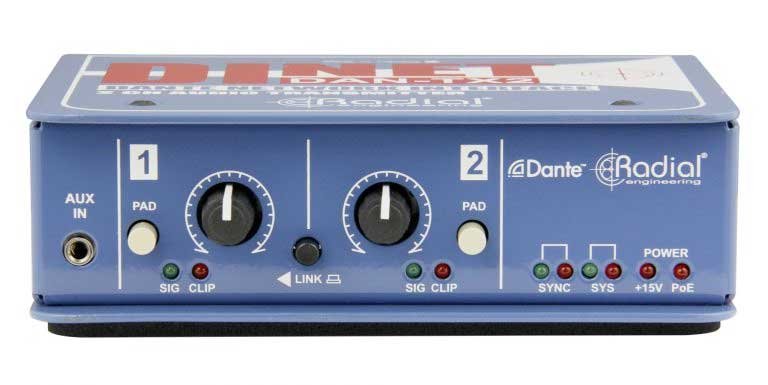

Input pad

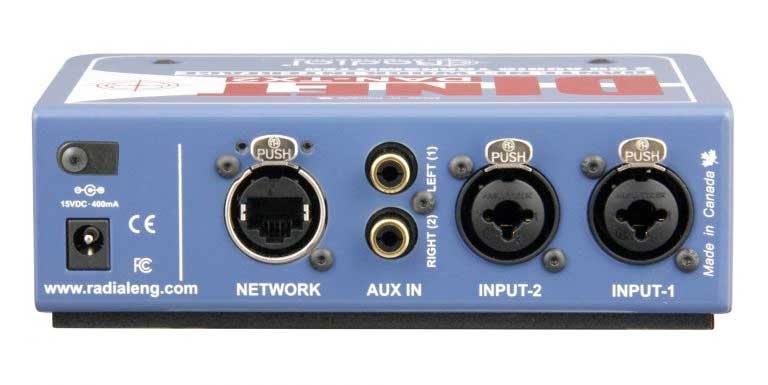

Input Connectors: 2x XLR/TRS combo, 3.5mm TRS, 2x RCA
Output Connectors: RJ45 Ethernet with locking etherCON
Extras: Bit Depth: 24 bit; Idle Channel Noise: -108dB; Channel Separation: >85dB; Power Consumption: 1.25W; Power over Ethernet (PoE): Class 1 IEEE 802.3af

General


Construction: 14-gauge steel
Finish: Durable powder coat
Size (L x W x D): 4.5" x 2" x 6" (121 x 6 x 147mm)
Power: 15VDC 400mA (included) or PoE
Conditions: For use in dry locations only between 5C and 40C
