UPC/EAN #676101044351     MPN #R800 8022

$279.99

Save 16.7%, MSRP $336.00
Free shipping in Canada. Conditions

4ch transmitter, with balanced i/o, uses shielded cat-5



TX4 - RX4

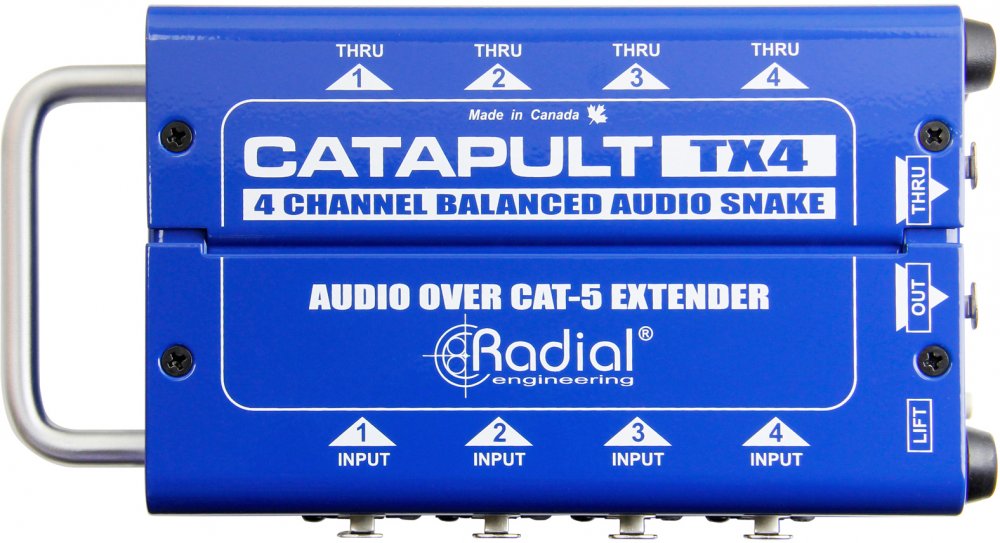

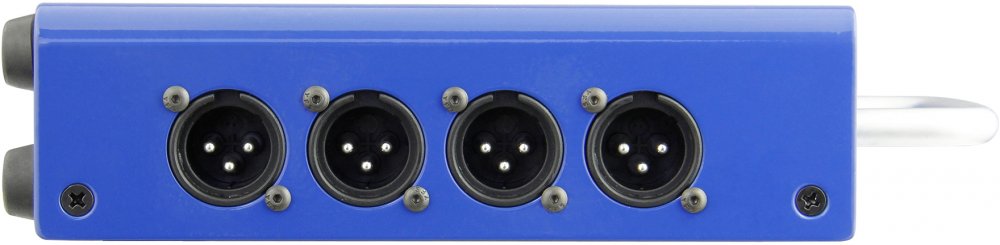

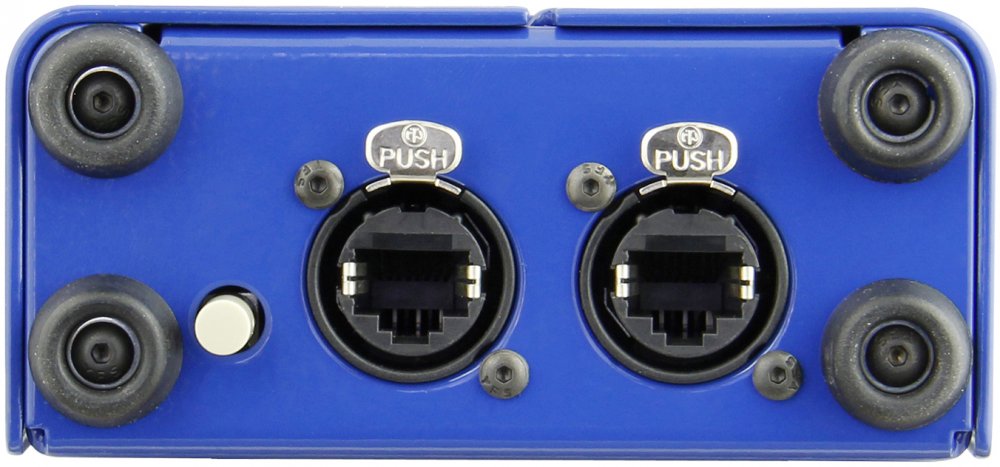

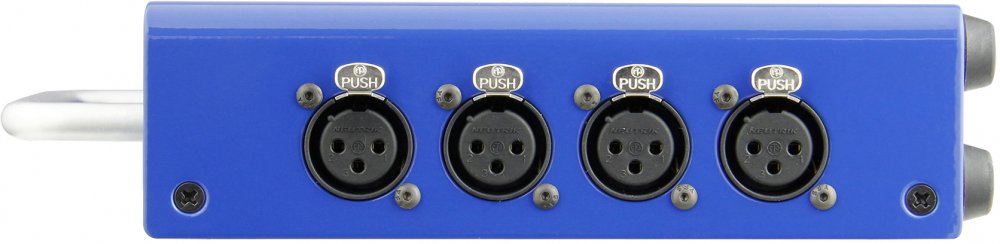

The Catapult TX4 and RX4 are four-channel audio snakes that allow you to send analog and AES digital audio signals over standard Cat 5 shielded twisted pair cable. This allows for the use of existing Cat 5 or Cat 6 cable infrastructure to connect audio signals from one part of a building to another, or to run sub-snakes over long distances with inexpensive and lightweight cable. The TX4 has four XLR-F inputs and four XLR-M outputs, while the RX4 has two sets of four XLR-M outputs. Both units feature an RJ45 type Ethercon input and thru-put, and include ground lifts to help eliminate buzz and hum caused by ground loops. Their rugged design, exceptionally flat frequency response, and low noise make the TX4 and RX4 excellent options for transmitting analog or AES audio in critical situations.

Analog audio over Cat 5 wiring
The Catapult TX4 and RX4 act like a typical four-channel analog audio snake; they allow you to send mic or line-level signals from one location to another without signal loss, noise, or interference, and without any digital audio conversion needed. What makes the Catapult system unique is that it utilizes Cat 5 Ethernet cable, which is widely available, lightweight, and economical. Simply connect a shielded Cat 5 cable between any two Catapult modules and they will use the analog conductors in the cable to deliver four balanced audio lines to any destination.

Straight-wire passive operation
Catapult modules require no power to operate, and since they keep the signal in the analog realm, no digital conversion is necessary. Straight-wire connection from the XLRs to the RJ45 connector on a Cat 5 cable ensures that your audio passes through without coloration or distortion.

Utilize pre-existing cable installations
As many buildings are already pre-wired for Cat 5, you can take advantage of this to transmit audio between distant rooms without the need to install or supply new cabling. This eliminates the need for bulky and expensive multi-channel audio cable, and allows contractors to benefit from installed network cable and easily connect from one room to another.

Mix & Match to add transformer isolation
All of the Radial Catapult modules are compatible with each other, and each is sold individually, so you can select whichever combination best suits your needs. The Catapult RX4 and TX4 can be used together as a pair, creating a 4-channel audio snake. However, if you need transformer isolation to prevent hum and buzz when splitting audio signals, two additional models of Catapults are available. The TX4L and RX4L have line level isolation transformers for splitting playback tracks or outputs to amp racks, while the TX4M and RX4M can be employed when splitting mic signals on stage. Use any combination of these six models, along with the compact Catapult Mini RX and TX to create a custom snake designed for your unique application.
  • Send four channels of analog audio over a single Cat 5/6 cable
  • Works with a building's existing cable infrastructure
  • Choice of direct-wired or transformer isolated splits
  • Economical Cat 5/6 cable replaces bulky multi-channel audio snakes
  • Specifications
    Audio circuit type: Passive splitter
    Frequency response: 7Hz ~ 20KHz
    Dynamic range: 140dB
    Total harmonic distortion: 0.0005% @ 1kHz
    Common Mode Rejection Ratio: >103dB
    Maximum Input: +35dBu

    Features
    Ground lift
    Input Connectors: XLR, RJ45
    Output Connectors: XLR, RJ45

    General
    Construction: 14 gauge steel chassis & outer shell
    Size (L x W x D): L: 8 1/8 x W: 4 1/8 x H: 2
    Weight: 2.6 LBS
    Shipping size (L x W x D): L: 11 x W: 5 x H: 2.75
    Shipping weight: 2.9 LBS
    Power: Passive, no power required
    Conditions: For use in dry locations only between 5°C and 40°C
