UPC/EAN #684284071163     MPN #KS112

$1859.00

Save 17.7%, MSRP $2260.00
Financing available

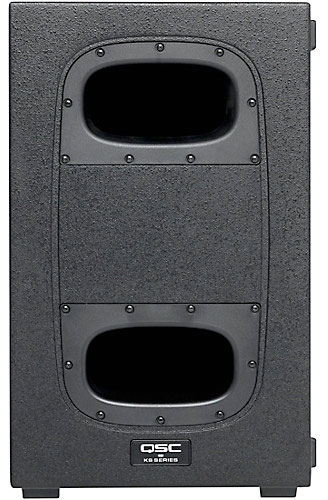

The KS112 is an ultra-compact powered subwoofer for installation and highly portable entertainment applications



The KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 Watt peak power Class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low noise casters.

Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).
  • High Output in an ultra-compact form factor
  • 2000 Watt Class D amplifier module
  • 12-inch, long-excursion driver; 6th order bandpass design
  • Intrinsic Correction? tuning and loudspeaker management
  • Refined, professional appearance looks great in any application
  • Rugged painted wood enclosure for long life and lasting durability
  • Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings
  • Optional KS-LOC security cover prevents unauthorized tampering of controls
  • Complete EASE & CAD information available online
  • Configuration: 6th-Order Bandpass Subwoofer
    LF Transducer: 12-inch (305 mm), Cone
    Frequency Response (-6 dB): 41 Hz - 108 Hz
    Frequency Range (-10 dB): 38 Hz - 121 Hz
    Maximum Rated SPL: 128 dB @ 1 m (peak)
    Amplifier
  • Class D
  • 2000W (peak)
  • Cooling: Low-noise, variable speed fan

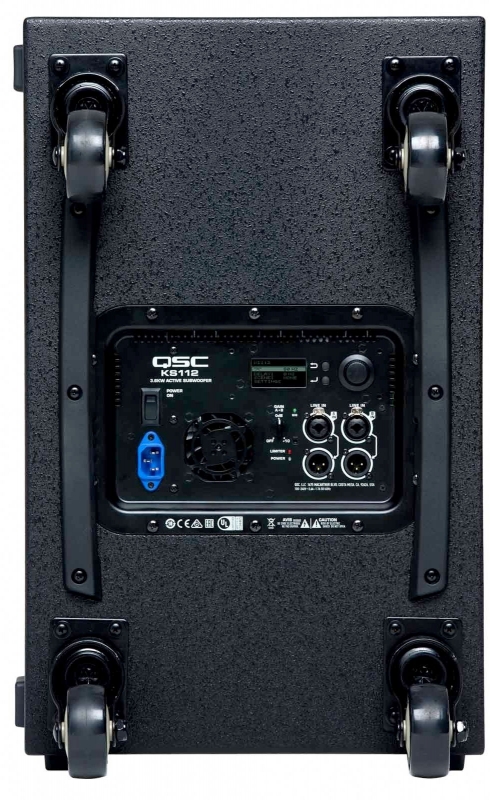

    Controls
  • Power On/Off
  • Gain Control
  • Rotary encoder
  • 2 x selection buttons
  • Indicators
  • 2 x Power LED (front and rear)
  • Input Signal LED
  • Limiter Active LED
  • Connectors
  • 2 x locking XLR/F 1/4-inch combo
  • 2 x XLR/M (Loop-thru Output)
  • 1 x locking IEC power connector
  • AC Power Input: Universal power supply 100 - 240 VAC, 50 - 60 Hz
    AC Power Consumption: 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A

    Enclosure Details
    Enclosure: 15 mm Birch Plywood
    Color: Black (RAL 9011)
    Grille: Internal woofer cover
    Dimensions (HWD) inches: 24.5 x 15.5 x 24.25
    Dimensions (HWD) mm: 622 x 394 x 616
    Net Weight: 28.4 kg (62.6 lbs)
    Shipping Weight: 34.5 kg (76 lbs)
    Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
    Included Accessories: 4 x Low-Noise, Heavy Duty Casters
    Optional Accessories: KS112 CVR Transport Cover, KS-LOC Lock-Out Cover, SP-16X Extension Pole, SP-36 Extension Pole
