PSC PowerStar LiFE Zeus
MPN #FPSC0026ZEUS
Power distribution center with 60 AMP/HR life battery, two 8A outputs, two 5A outputs, seven 3A outputs. Individual filtering & overload protection dedicated inverter power output

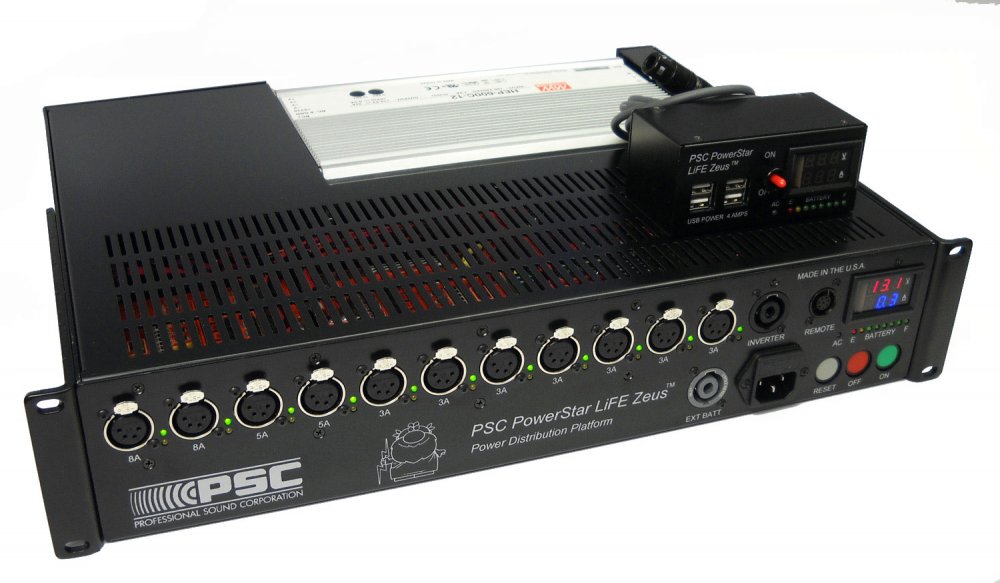

The PSC Power Star LiFE Zeus is our ultimate high power rechargeable power supply and distribution platform. Engineered using our 30 years of power supply experience, this new two rack space rechargeable power supply will provide you with the ultimate power solution for your sound or video cart.
LiFE BATTERY PACK:
The heart of the system is our custom, triple redundant 12.8 volt, 60 amp hour Lithium Iron Phosphate battery pack. Each of the three onboard 20 amp battery packs contain individual cells that were chosen for their high capacity, and ability to be rapidly charged or discharged. While other cells can only be charged and discharged at a 0.7C amp hour rate, ours are rated at a full 3C rate. Additionally, our cells are factory measured, graded and matched into precision sets for a better quality battery. Unlike other brands, the PSC LiFE battery pack contains built in cell balancing electronics for a long life.
AC SUPPLY and CHARGER:
The PSC Power Star LiFE Zeus is built around a highly integrated 600 watt, switching power supply/charger. The AC input is fully filtered for common mode and differential noise, harmonic content and spikes. This supply contains a built in current limiting function to further protect itself under extreme conditions. In addition, our charger has been designed to provide clean, quiet charging power so as to not cause you noise problems in the field.
POWER DISTRIBUTION and OUTPUT FILTERING:
The DC path of our Power Star LiFE Zeus has been designed to provide clean, quiet, reliable DC power for all of your audio and video equipment needs. Each output has its own dedicated output filter that contains both audio and RF frequency filters. Each output is also individually Poly-fuse protected and monitored via easy to read front panel LED indication. There are a total of eleven outputs: two (2) 8 Amp Outputs, two (2) 5 Amp Outputs and seven (7) 3 Amp Outputs. To lower internal power losses and extend battery life, our circuit boards are made with 4oz copper, 4 times the industry standard and a PSC exclusive feature!
REMOTE CONTROL-METER:
Every PSC Power Star LiFE Zeus comes with a small remote control box. The use of the remote control allows the Power Star LiFE to be mounted down and out of the way on your sound cart if desired. This remote contains an additional set of "On and Off" controls, an additional battery "Fuel Gauge", digital LED Volt and Current meters and also four (4) USB charging ports. The PSC Power Star LiFE Zeus can be operated with or without the remote control box.
COOLING:
The PSC Power Star LiFE Zeus is convection cooled without the use of any fans.
RACK MOUNTING:
The PSC Power Star LiFE Zeus is equipped with multiple point rack rail mounting brackets. These brackets can be mounted from either the front or the rear of the Power Star LiFE Zeus and can be offset to provide clearance for XLR connectors in tight rack space environments.
Features
60 Amp Hour LiFE Battery
35 Amp High Capacity AC Power Supply
Dedicated "Inverter" Power Output
Two 8A Outputs, Two 5A Outputs, Seven 3A Outputs
Properly Engineered System Cooling
Rapid Recharge LiFE battery
Individual Output Monitoring
Exclusive PSC Silent Power Technology
4 Amps of USB Charging Current Available
Convenient Multi-Colored "Fuel Gauge"
Digital LED Volt and Current Meters
Built In Battery Cell Balancing for Longer Battery Life
PSC Has Been Providing Reliable Power Solutions Since 1986
Specifications
Size: 17.50" wide, 13.50"deep, 3.5" high
(44.5cm x 34cm x 7.6cm)
Weight: 31 lbs (14Kg)
Temperature Range: Use: -4F to +124F (-20C to +50C)
AC Input: 100 - 240Vac, 47Hz -63Hz
AC Input Fuse: 15Amp, slow blow, 5 x 20 mm Glass
Outputs: 4P XLRs: 2 x 8Amp, 2 x 5Amp, 7 x 3Amp
4P SpeakOn for Inverter: 18 Amps
Output Voltage: 12.8Vdc Nominal
Output Current: On LiFE Battery, 60 Amps. AC only, 35 Amps
Charging Time: Typical Cart 3 hours, No Load (all equipment off) 1.5 to 2 hours
USB Charging Port: 4 Ports, Total Output 5Vdc at 4 Amps
LiFE Battery Capacity: 12.8 Volts @ 60 Amp Hours (768 watts)
Battery Connector: SpeakOn 2 Pole (Mating connector Neutrik NL2FC)
Inverter Connector: SpeakON 4 Pole (mating connector Neutrik NL4FC)
Warranty Electronics and Case, 1 year, Limited
Life cells, 6 Months, Limited
Includes: Remote control with battery level meter and 4 USB charging ports
