PSC Power Star LiFE
MPN #FPSC0026LIFE
Rechargeable power distribution system with rapid recharge LiFE battery and highest capacity AC power supply

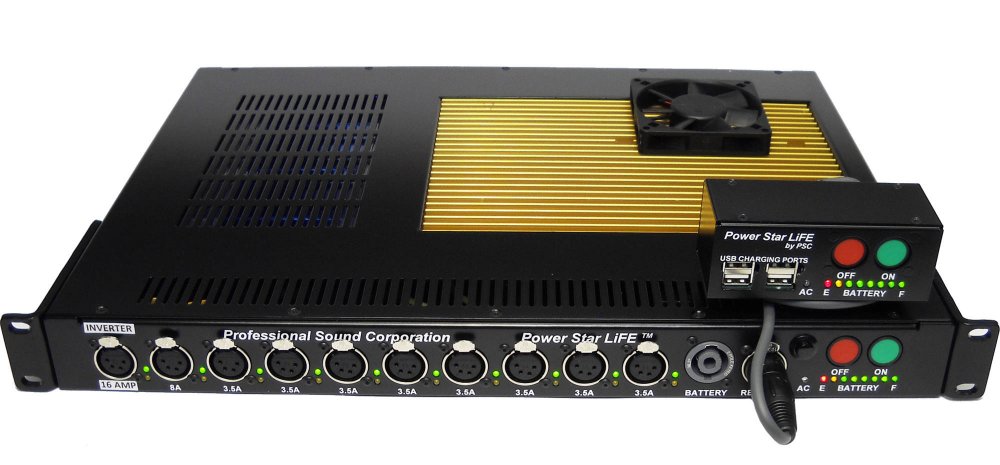

The PSC Power Star LiFE is the new gold standard of power distribution products. Engineered using our 26 years of power supply experience, this new single rack space rechargeable power supply will provide you with the ultimate power solution for your sound or video cart.
LiFE BATTERY PACK:
The heart of the system is our custom, 12.8 volt, 20 amp hour Lithium Iron Phosphate battery pack. The individual cells were chosen for their high capacity, and ability to be rapidly charged or discharged. While other cells can only be charged and discharged at a 0.7C amp hour rate, ours are rated at a full 3C rate. Additionally, our cells are factory measured, graded and matched into precision sets for a better quality battery. Unlike other brands, the PSC LiFE battery pack contains built in cell balancing electronics for a long life.
AC SUPPLY and CHARGER:
The PSC Power Star LiFE is built around a highly integrated 500 watt, switching power supply. The AC input is fully filtered for both common mode and differential noise, harmonic content and spikes. We designed and built in a current limiting function to further protect our power supply under extreme conditions. In addition, our charger has been designed to provide clean, quiet charging power so as to not cause you noise problems in the field.
POWER DISTRIBUTION and OUTPUT FILTERING:
The DC path of our Power Star LiFE has been designed to provide clean, quiet, reliable DC power for all of your audio and video equipment needs. Each output has its own dedicated output filter that contains both audio and RF frequency filters. Each output is also individually Poly-fuse protected and monitored via easy to read front panel LED indication. There are a total of ten outputs: two (2) 8 Amp Outputs and eight (8) 3.5 Amp Outputs. To lower internal power losses and extend battery life, our circuit boards are made with 4oz copper, 4 times the industry standard and a PSC exclusive feature!
REMOTE CONTROL-METER:
Every PSC Power Star LiFE comes with a small remote control box. The use of the remote control allows the Power Star LiFE to be mounted down and out of the way on your sound cart if desired. This remote contains an additional set of "On and Off" controls, an additional battery level meter and also four (4) USB charging ports. The PSC Power Star LiFE can be operated with or without the remote control box.
COOLING:
The PSC Power Star LiFE is convection cooled using a custom made, high capacity aluminum heat sink extrusion. This heat sink provides more than 375 square inches (2419 square cm) of heat dissipation surface. It has been anodized gold for long service life in the field.
RACK MOUNTING:
The PSC Power Star LiFE is equipped with multiple point rack rail mounting brackets. These brackets can be mounted from either the front or the rear of the Power Star Life.
Features
Highest Capacity AC Power SupplyProperly Engineered System CoolingRapid Recharge LiFE batteryIndividual Output MonitoringExclusive PSC Silent Power Technology4 Amps of USB Charging Current AvailableConvenient Multi-Colored "Fuel Gauge"Built In Battery Cell Balancing for Longer Battery LifePSC Has Been Providing Power Solutions Since 1986
Specifications
Size 17.50" wide, 13.00" deep, 1.75" high
(44.5cm x 33cm x 3.8cm)
Weight: 13.8Lbs (6.27Kg)
Tempurature Range: Use -4F to +122F (-20C to +50C)
AC Input: 100 - 240Vac, 47Hz -63Hz
Outputs: 2 x 8Amp, 8 x 3.5Amp
Output Voltage: 12.8Vdc Nominal
Output Current: On LiFE Battery, 25 Amps. AC only, 24 Amps
Charging Time: Typical Cart 1.5 hours, No Load (all equipment off) 1 hour
USB Charging Port: 4 Ports, Total Output 5Vdc at 4 Amps
LiFE Battery Capacity: 12.8 Volts @ 20 Amp Hours (256 watts)
Battery Connector: SpeakOn 2 Pole (mating connector Neutrik NL2FC)
