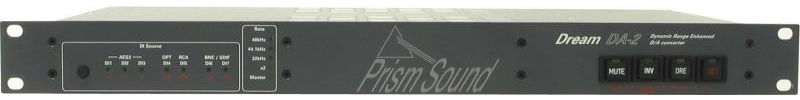

Prism Sound Dream DA-2



The Prism Sound Dream DA-2 is a 24-bit 96kHz D/A & Sample Rate Converter, providing the most accurate rendition of an audio event whether it be early music, classical, jazz, big band, a club mix or hard rock. The DA-2 conversion system provides an audio stream of such exceptional quality that will be relied upon for years to come as the definitive source for productions on CD, DVD, Super Audio CD or other formats as they become available.

Performance
The Prism Sound DA-2, 96kHz, 24-bit D/A converter provides ultimate-quality monitoring of digital audio signals. Its exceptional linearity and rock-steady clock generation and recovery ensure the highest conversion precision available for recording and mastering applications.

The DA-2 combines truly state-of-the-art audio performance with the advanced features needed by the professional to provide the most revealing, most transparent and most flexible digital to analogue conversion unit available.

Musicality
Of particular importance is the ability of the DA-2 to avoid the unpleasant effects of jitter: The exceptionally stable PLL has high jitter-attenuation, and the DA-2's digital outputs can provide a de-jittered digital feed-through for reliable digital transfers. The DA-2 also has a unique 'master clock' mode in which the effects of incoming clock jitter are eliminated completely.

The DA-2 will interface easily with other digital audio equipment; it features both high-speed and two-wire interfacing options at input and output for 88.2kHz and 96kHz rates.

The DA-2 analogue output offers simplicity and high performance with its fully-floating, electronically balanced format with precision attenuators offering an operating range that covers both professional and consumer voltage levels.

Compatible with all wordlengths from 16 to 24 bits
The DA-2 is fully compatible with recordings made at any wordlength up to 24-bits, with or without noise shaping. No adjustment is needed for sources driving only 16 bits on the interface.

Monitor the new high-rate (e.g. 96kHz) digital interface formats
The DA-2 provides support for both two-wire and double-speed AES variants now in use for higher-rate recording projects (typically 96kHz 24-bit).

Use the DA-2 as the basis of a studio monitoring system
The 7-way input selector and feed-through output (for example: driving a digital PPM) of the DA-2 can be used as the heart of your digital audio monitoring system.

Easy transfer between tape and disk
The DA-2 can act as a format converter and jitter attenuator using its array of input formats and its digital outputs. For example, it can convert between AES3 and SDIF-2 or from TOSLINK optical to AES3. It can also convert from double speed AES (typically 96kHz) to the two-wire interface format.

Use the DA-2 as your studio clock reference
The DA-2 can operate in Master Clock mode where the D/A converter timing is generated internally from a precision reference, by-passing the synchronizing PLL system altogether. If your external equipment supports it, you can use the DA-2 in this mode for the ultimate in D/A conversion quality.


Prism Sound Dream DA-2's specifications




D/A CONVERTER SPECIFICATIONS


Full Scale Input signal level
+5dBu to +28dBu in steps of 1dB and 0.05dB


Output impedance
Differential: 47 Ohm
Single-ended: 24 Ohm


Common mode voltage range
70V


Dynamic range
>111dB unweighted RMS


High-level THD+N
< -104dB unweighted RMS


Intermodulation distortion
< -90dB


Spurious aharmonics
< -125dBFS


Crosstalk
< -100dB 20Hz to 20kHz


Level dependent linearity
<<3dB at -144dBFS


Sample Rates
32, 44.1, 48, 88.2, 96kHz 0.15%


Non-standard ranges:
30-50kHz, 60-100kHz


Jitter


Attenuation slope
80dB/decade


Corner frequency
approx. 80Hz


Attenuation above 500Hz
greater than 60dB


Intrinsic
less than 18 picoseconds RMS






DIGITAL INPUTS


DI1
AES/EBU 110 Ohm
supports higher-rate sampling (HRS: e.g. 96kHz) at double speed


DI2 & 3
AES/EBU 110 Ohm
These inputs support HRS at double speed and in two-wire format


DI4
TOSLINK Optical
S/PDIF high and low rates


DI5
RCA/Phono
S/PDIF high and low rates


DI6 & 7
BNC L & BNC R - AES3-id
75 Ohm
Both support HRS double speed or two-wire and SDIF-2 at high and low rates.






DIGITAL OUTPUTS


DO1 & 2
AES/EBU 110 Ohm
Both support HRS (e.g. 96kHz) double speed or two-wire


BNC L and BNC R
SDIF-2 high and low rates


TOSLINK Optical
S/PDIF high and low rates


RCA/Phono
S/PDIF high and low rates






PHYSICAL


Dimensions


Height
1 rack unit (44mm)


Width
19-inch rack (438mm)


Depth
10.25 inches (260mm)


Weight
8.8lb (4kg)


Power


Voltage
External selector for: 90-110V, 110-30V, 190-220V, 220-260V


Consumption
30W
