Primacoustic Broadway Broadband Panels Square 24"x48", 2", Black
UPC/EAN #676101037339
MPN #F102-2448-00

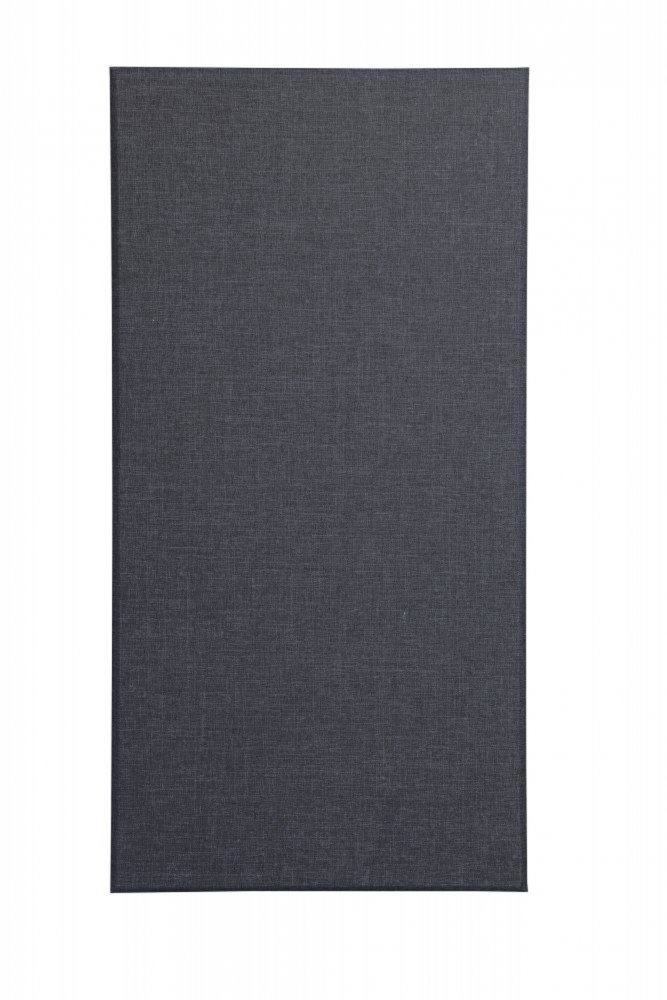

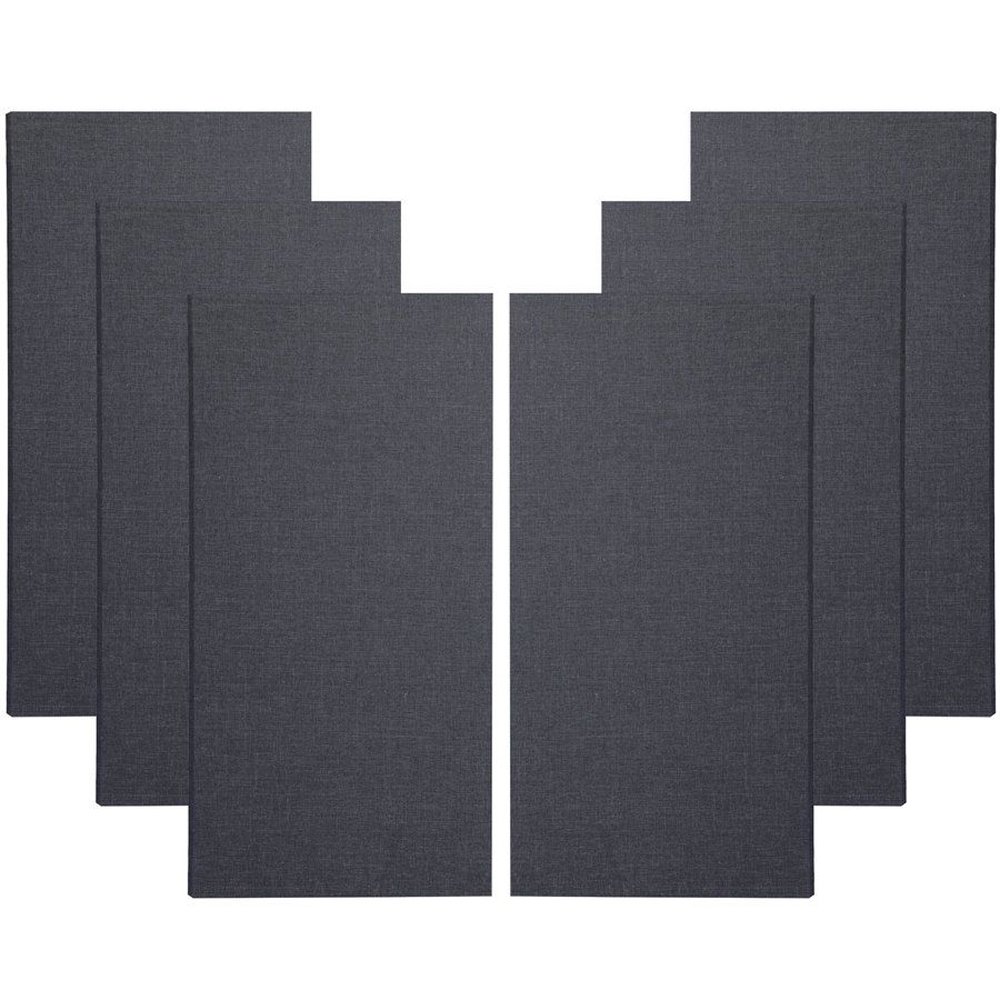

Pack of 6 square-edge panels, 2" thick, dimensions: 24"x48". Superior noise absorption with a clean, modern design in black.
Made from high density six pound per cubic foot glass wool, the larger 24" x 48" (60.96cm x 121.92cm) Broadband features an increased surface area for great absorption. This makes it particularly effective at improving itelligibility in larger installations where the reverberant filed and echo is excessive.

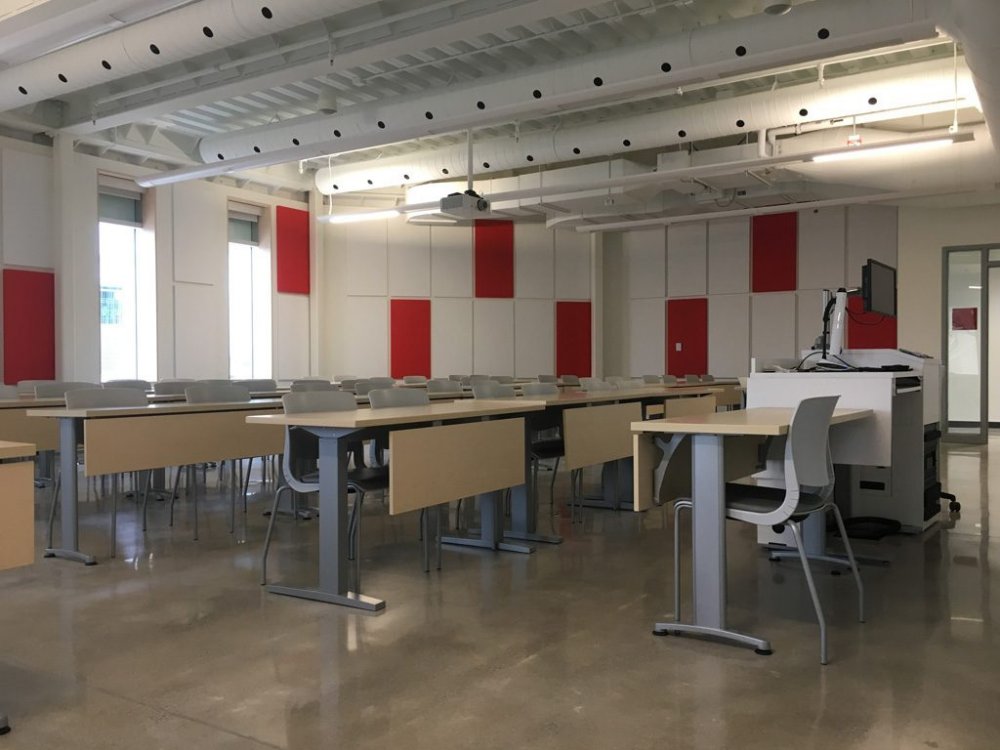

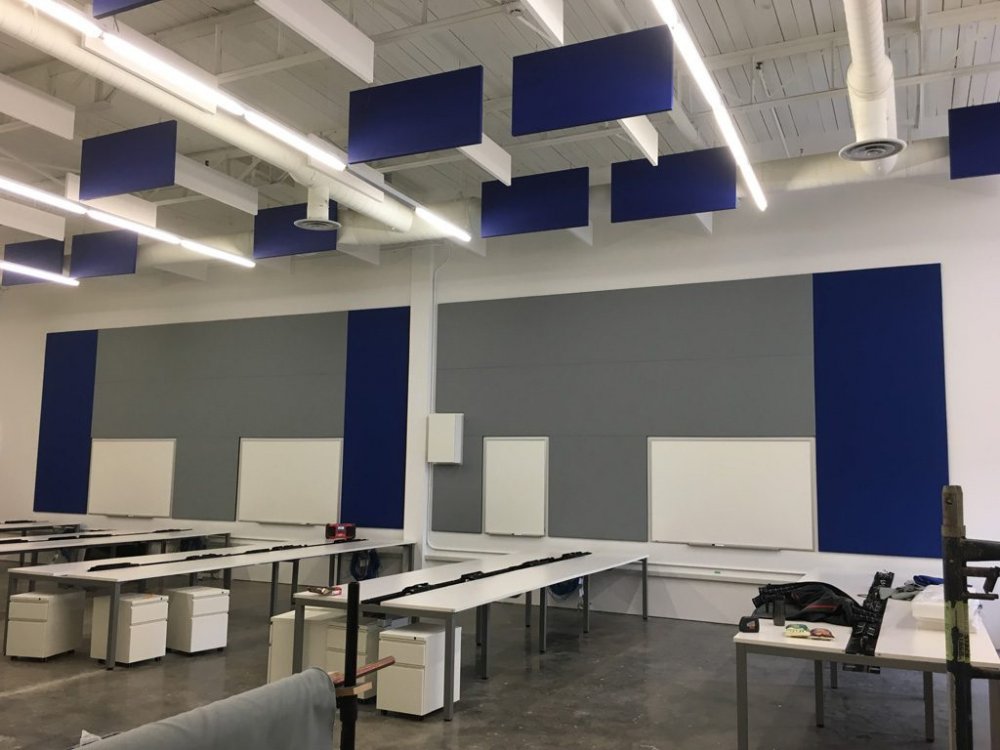

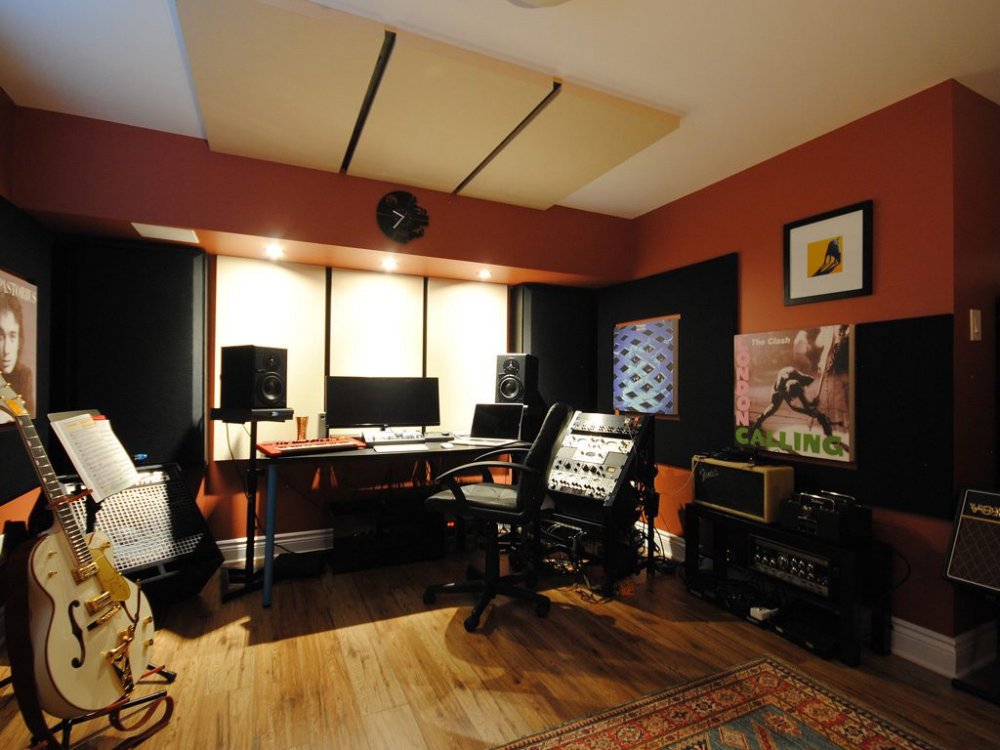

Broadband Absorbers are flush mounted on the wall using Primacoustic Surface Impalers and can be 'butted-up' for complete wall coverage for maximum absorption or sread in an array to retian a sense of 'air' or natural ambiance in the room. This makes the Broadband particularly well suited to attenuate the reverberant flied and improve the working environment in commercial installations such as noisy offices, call centers and boardrooms. The larger panel design also lends itself to other applications such as bass management. For instance, mounting Broadband Absorbers using Primacoustic Off-Set Impalers introduces an air space behind the panel which can increase bass absorption by as much as one octave. When mounted using Primacoustic Corner Impalers, bass absorption extends down to 75Hz making it an ideal bass trap for controlling the low end response in a studio or home theatre installation.
Broadway Broadband Absorbers come in a choice of 1-inch, 2-inch and 3-inch thick panels with your choice of a square or bevelled edge. Color options include black, grey or beige.
Mounting
Mounting Broadband Absorbers is easy and quickly accomplished using Primacoustic Surface Impalers. Most installations only require three impalers per panel. For areas with higher traffic, four or more impalers may be used. For extra security, add a dab of construction adhesive on the impalers to secure the panel in place. This is recommended in classrooms or public places.
Should additional bass attenuation be required, mounting Broadband Absorbers using off-set impalers can increase the performance by as much as one octave in low frequency region. Bass absorption can be extended further using Corner Impalers and stacking the panels.
Features
Full size panels provide maximum absorptive surfaceRectangular shape integrates with most room designsSurface, Off-Set, Corner or Push-On mounting optionsCombine with Accent panels for architectural flare!
Specifications
Core Material: Formed, semi rigid inorganic glass fibersDensity: 6.0 lbs. per cubic foot (96 kg/m3)Fabric Facing: Acoustically transparent polyester tweedEncapsulation: Micromesh on front and rear surface, resin treated edgesAbsorption H2O: < 2% by weight @ 120F (49C), 95% relative humidityTemperature: -20F ~ 150F (-29C ~ 66C)Fire Rating: Class-A (ASTM E 84 / CAN/UL-S102 see details below)Mounting optional: Galvanized steel impalers
