PMC PMC8-2 SUB-L
MPN #PMC8-2 SUB-L

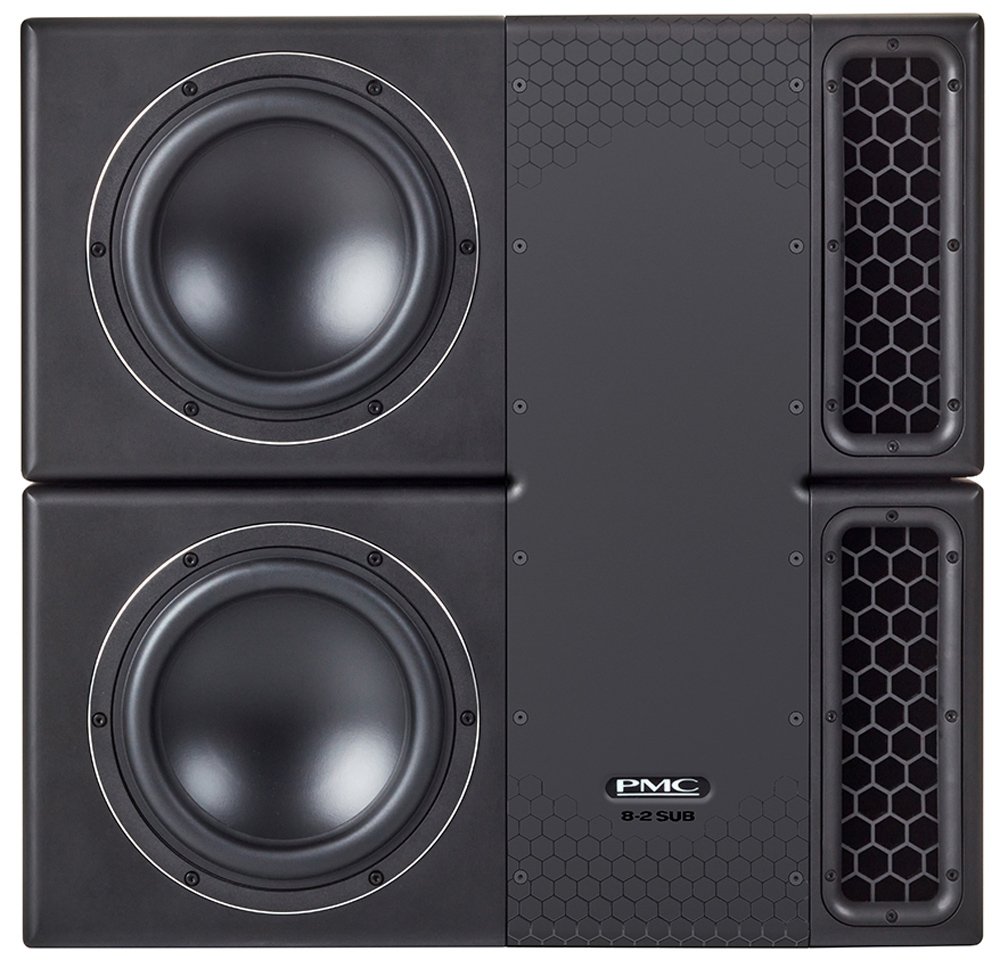

Active sub with 2 x 8 inch bass units for use as dedicated sub or to complete the Left channel of a 6-2 or 8-2 XBD system
The PMC 8-2 SUB is a true low-frequency monitor like the PMC8 SUB and offering the same DSP engine and seamless integration with surround and immersive systems, the PMC8-2 SUB betters the spec of its smaller sibling, offering higher maximum SPL output down to 25Hz.

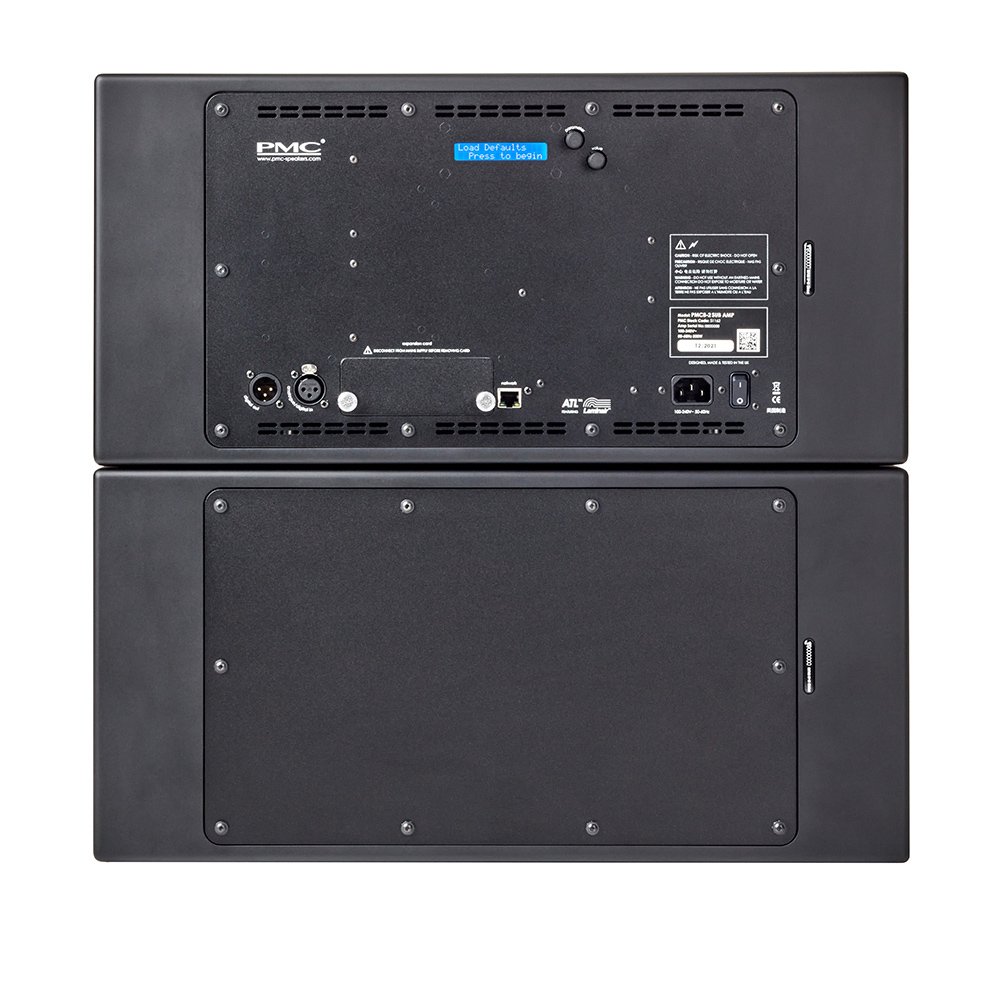

With the same dimensions as the PMC8-2 midfield monitor, the PMC8-2 SUB's twin eight-inch bass drivers are powered by independent 400W Class-D amplifiers. The same configuration options are available as on the PMC8 SUB, likewise accessible on the speaker's rear panel or by using the browser-based SoundAlign? software via a LAN-connected tablet, smartphone or computer.
The PMC8-2 SUB can be used as a standalone subwoofer for multichannel and immersive sound systems, or as an XBD cabinet with either PMC6-2 or PMC8-2 s, creating a system of awesome power and dynamic range. The sub is available in either left- or right-handed cabinet versions (PMC8-2 SUB-L or PMC8-2 SUB-R), to allow placement of the bass drivers on the outside edges of a stereo array, matching the arrangement of the main monitors.
Features
Active subwoofer with twin 8-inch bass drivers and ATL bass loadingFrequency response: 25Hz - 500Hz (- 3dB) (@1m full space, on-axis)Max. cont. SPL: 115dB @1m (quarter space value calculated as +3dB from half space measurement.Unweighted input,20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)State-of-the-art Class-D amplifier: 2 x 400WAnalogue/AES3 digital input (16/24-bit, 18 -192kHz sample rate)Digital ?through' output (AES3 24-bit, 96kHz)SoundAlign network control interface for single or group EQ & settingsSophisticated DSP driver protection, EQ, and delay/phase optionsDedicated XBD configuration mode
Specifications
Type:
Active subwoofer with twin 8-inch bass drivers and ATL bass loading
Drive Unit Complement:
LF PMC 200mm (8") studio 8 driver
Effective ATL Length:
3m (9.8ft)
Frequency Response:
25Hz - 500Hz (- 3dB) (@1m full space, on-axis)
Sensitivity:
+4dBu input signal = 98dB SPL @ 1m
Max continuous SPL:
115dB @1m
(Quarter space value calculated as +3dB from half space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
Max Peak SPL:
121dB @1m
(Quarter space value calculated as +3dB from half space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
Input:
XLR switchable between analogue & digital AES3
Analogue input
- +20/+24dBu max. input level (selectable)
- 22K ohm input impedance Digital input - 16/24-bit AES3 signal, left, right or left + right
- 18 - 192kHz Sample Rate
- 110 ohm input impedance Expansion card slot
- For future connectivity upgrades
Output:
XLR digital AES3 (fixed 24-bit @ 96kHz)
Network RJ45 for use with PMC SoundAlign web interface
Features:
Level Trim (+/-10dB)
High-pass/Low-pass filter (20 - 200Hz, 12dB/Oct)
Delay (0 - 30mS)
Phase (normal or inverted)
LF & HF shelving filters (20Hz - 20kHz, +/- 10dB, Q 0.707)
Parametric EQ (5 bands, 20Hz - 20kHz, +/- 10dB)
User presets (3 + factory defaults)
Latency:
2.4mS
Amplifier power per channel:
300Wrms
Mains:
100 - 240VAC auto-switching, 50-60Hz (IEC C14)
Power consumption (idle):
25W
Power consumption (max):
300W
Cabinet dimensions:
H 266mm (10.5")
W 551mm (21.7")
D 440mm (17.3")
Weight:
18.5kg (40.8lbs) each
Available Finishes:
Studio black
