PMC ci140
MPN #ci140

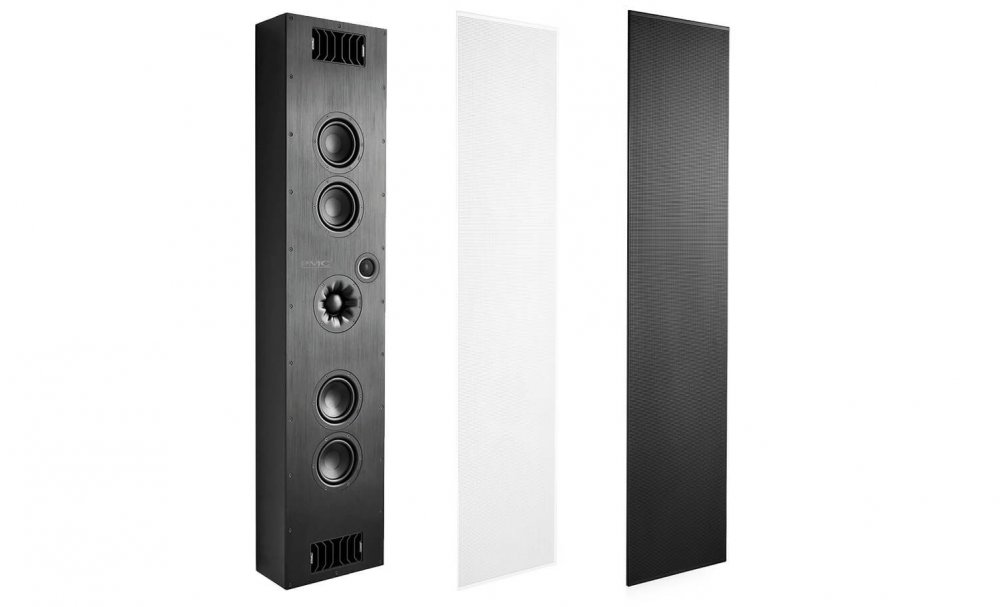

On-wall speaker supplied with white grille, H 1400mm x W 300mm x D 153mm
With a complement of four 130mm (5.25") LTXTM long-throw woofers, the Laminair-enhanced Advanced Transmission Line, a 50mm (2") soft-dome mid-range unit and a 27mm (1.1") tweeter from PMC's professional studio monitors, it presents an audio soundstage as big as the movie you're watching. Powerful bass, ultra-clear mids and exquisite highs all combine to put you right in the heart of the action, with all the detail and nuances the director imagined brought to life by this sublime speaker.
VOCAL REALISM LIKE NO OTHER
PMC's larger professional speakers are renowned for their mid-range dome drivers, which deliver critical detail and realism in the vocal and instrumental range. The three-way ci140 is the only model in the new ci series to feature a mid- range driver, which was custom-made for this flagship. The all-new 50mm (2") dome features n-compassTM technology - a new dispersion flange geometry for a flat-frequency response and phenomenal off-axis performance. This makes the driver ideal for horizontal or vertical placement, as in a cinema LCR system, providing an identical immersive audio experience from all listening positions. The wide audio picture created by the mid-range unit provides unrivalled vocal and instrumental clarity and realism, keeping the dialogue distinct from the score for the "real" movie experience.
HIGH-FIDELITY HIGHS
The professionally proven tweeter derives from PMC's studio nearfield monitors. The ferrofluid-cooled neodymium magnet, with built-in heatsink, allows for reliable, consistent high- power handling, and the 27mm soft dome is mounted within a custom waveguide and dispersion grille that integrates perfectly with the mid-range unit and produces a consistent off-axis response, delivering incredibly realistic high-frequency reproduction no matter where you are in your listening room. The HF driver is offset to eliminate edge reflections and work optimally whether your speaker is mounted horizontally or vertically.
TRULY IMMERSIVE SOUND
The ultra-wide dispersion of the ci series makes the listening experience truly immersive from all room positions, for the perfect inclusive home listening environment, whether it's an open-plan living space or dedicated home theatre.

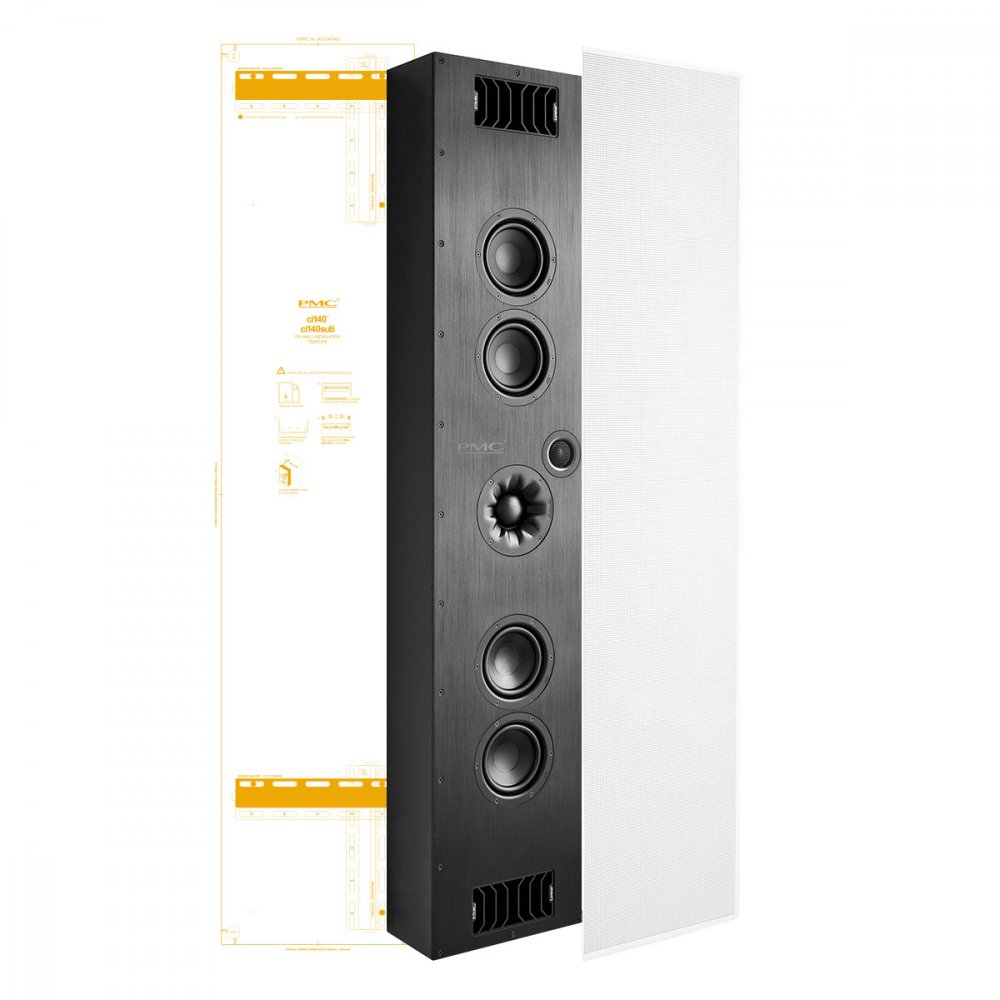

QikfireTM IN-WALL INSTALL
The speed of the QikfireTM in-wall mounting system makes the entire range very "installer-friendly". The ci30, ci45, ci90slim and ci65 are fitted with Qikfire, a spring-loaded mounting system which allows the loudspeaker to be fixed in position with a simple twist of a screwdriver and permits post-installation micro-adjustment. Removal, is just as easy as installation, with a twist.
WALL MOUNTING

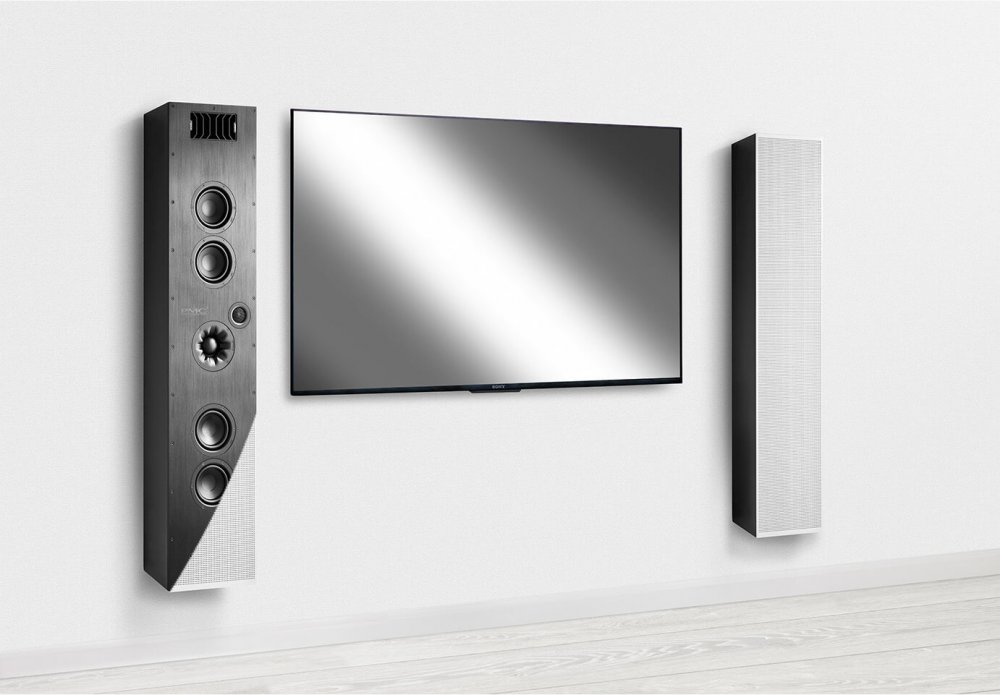

On-wall mounting is just as straightforward as in-wall mounting, using the supplied interlocking bracket, which is designed to also offer pin-point level adjustment. An optional mounting sleeve may be fitted around the cabinets to conceal the in-wall mounting system creating an elegant and discrete on-wall loudspeaker. A precision-perforated, bezel-less front grille, which is affixed magnetically, adds the final stylish touch.
NO ESCAPE FROM PERFORMANCE
All ci series cabinets are enclosed at the rear, ensuring that sound leakage to adjoining rooms is kept to an absolute minimum. Unlike inferior open-back speaker designs, it is not necessary to rely on the cavity construction of the wall to enhance the sound; the ci series cabinets, with their defined volume and robust construction, have everything they need to deliver awesome cinematic sound at all listening levels.
Specifications
Freq response: 32Hz(-3dB), 29Hz(-6dB)-25kHz
Sensitivity: 93dB (2.83v @1m)
Effective ATL: 2.3m (7.5ft)
Impedance: 4 Ohms
Drive units:
LF 4 x 133mm (5.25") Natural Fibre LTxTM
MF 50mm (2") PMC55 n-compassTM
soft dome
HF 27mm (1") soft dome
Input connectors: 1 pair 4mm sockets
Dimensions:
H 1400mm (55")
W 300mm (11.8")
D 153mm (6")
Weight ea.: 25kg (55lbs)
*Black grilles are available as an optional extra
