PMC BB6S-A-C
MPN #BB6-A-C

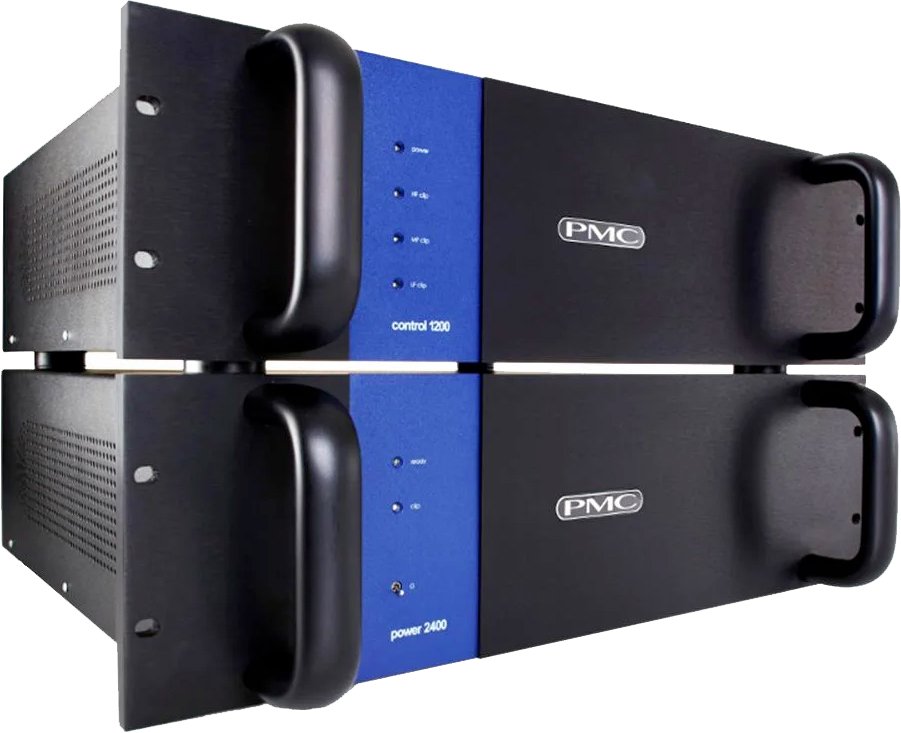

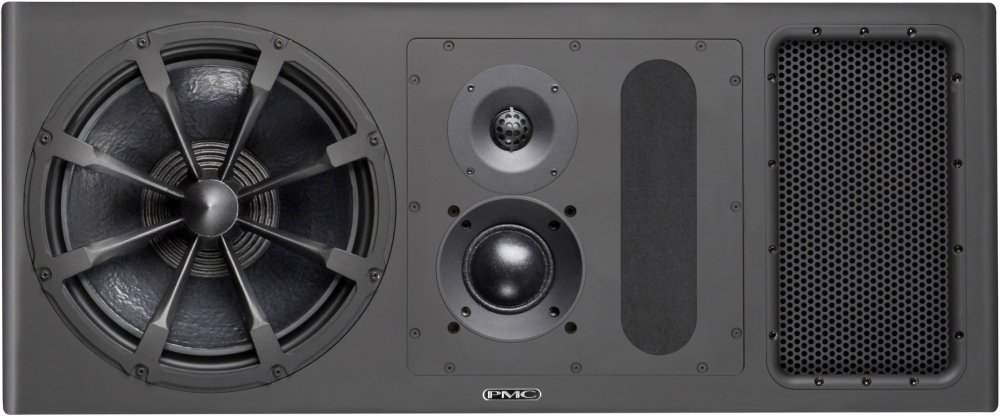

Dedicated 3 way ATL centre channel speaker for the BB6-A with 15-inch Radial bass drivers, PMC Control 1200, and PMC Power 2400
Building on the unique heritage and 25-year success of PMC's BB5, the BB6 offers the same wide dynamic range and frequency response, 15-inch Radial bass driver, unwavering tonal consistency at all output levels and high maximum SPL (up to 128dB) of its predecessor, but with the additional power and flexibility of PMC's proprietary Class-D amplification and DSP control. Flat down to a truly profound 17Hz and extending to beyond the limits of human hearing at 25kHz, the BB6-A may be used in larger recording, mixing, mastering or outside broadcast applications, and is equally at home in a tower configuration or mounted in soffits - although soffit-mounting is not essential, as the ATL bass response is sufficient without the LF gain achieved by soffit-mounting.
As with the smaller MB3-A, the BB6-A can form part of a multi-channel loudspeaker system, for which the separate BB6-C-A is available. Subwoofers are not a necessity, as the BB6-A speakers already cover the 20-60Hz sub-bass range with plenty of headroom. Dedicated 'PointOne' LFE inputs are therefore included on each Power 2400 amplifer for use with multi-channel content, including film soundtracks.
Features
Type: 3-way ATL active reference monitorFrequency response: 17Hz-25kHzPower per channel: 3225W (HF 275W, MF 550W, LF 2400W)Effective ATL length: 4 metresMaximum SPL: 128dB
Specifications
Available Finishes: Studio black
Crossover Frequency: 380Hz & 3.8kHz
Dimensions: H 1040mm (40.9") x W 432mm (17") x D 790mm (31.1")
Drive Units:

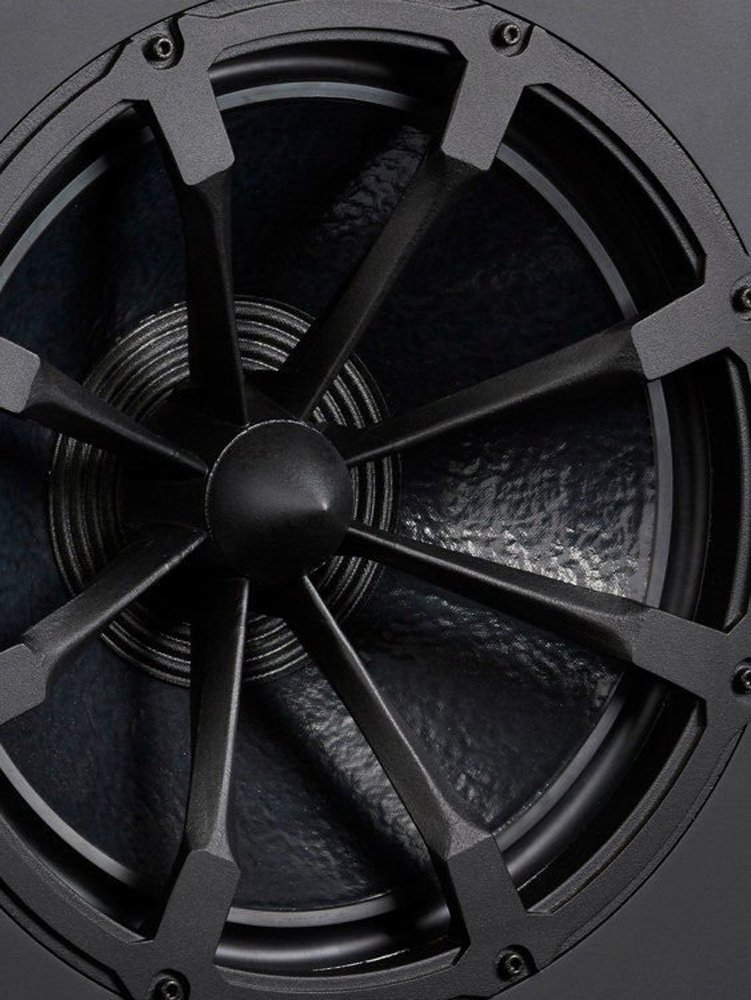

LF - PMC 380mm (15-inch) Radial driverMF - PMC hand built 75mm soft-dome driverHF - PMC 34mm soft-dome tweeter with acoustic radiator
Effective ATL Length: 4m (13ft)
Frequency Response: 17Hz - 25kHz
Impedance: Input Impedance 20k Bal
Input Connectors: AES3, 24-bit, 192kHz
sensitivity: Adjustable +4 to +20dBu
Weight: 73kg (161lbs) each
Amplifier Power per Channel:
LF - 1 x 2400WrmsMF - 1 x 550WrmsHF - 1 x 275Wrms
