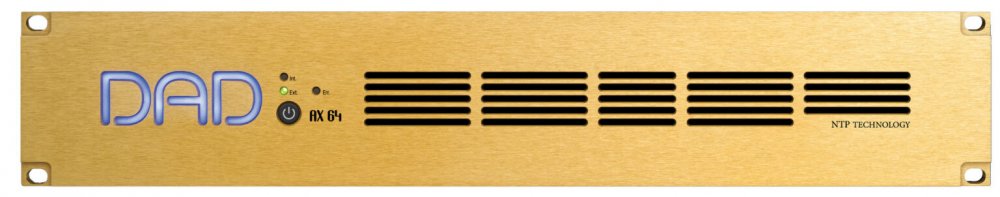

NTP Technology DAD AX64 - Base Unit
MPN #DADAX64BASE
Modular multi-format audio interface with up to 1,744 channels, 8 audio I/O cards slots providing up to 64 analogue input or output, and built-in SPQ processing
Please meet our new, versatile and modular multi-format audio interface with 8 slots for the acclaimed audio I/O cards known from the AX32 and Penta product family.
Up to 8 analogue cards can be installed, providing 64 analogue input or output audio channels with the renowned DAD high-end sonic quality.
With tons of channels, a wide palette of digital connectivity, built-in SPQ processing, Eucon control compatibility, internal summing engine and drivers for macOS and Windows 10, it is a pristine digital audio interface by any measure and is suited for just about any application.
In short, AX64 is the ultimate modular multi-format interface, which is ready to take on a wealth of tasks in the Post Production, Studio, Live Music and Installed Audio spheres.
DAW Interfacing
With Dante, MADI and ADAT ports onboard, native interfaces and versatile and flexible DADman routing control available, it is a stellar A/D, D/A and D/D converter that can grab any digital audio channel - convert it if needed - and route it anywhere.
Another application would be as a dedicated audio interface for your DAW.
Whether you run Pro Tools, Logic Pro, Nuendo, Cubase, Ableton Live, Digital Performer or any other DAW, AX64 is your super low-latency entrance. With the ADAT, MADI and Dante connectivity, you can easily add analog preamps or insert points to the mix.
Overview
1,744 Input and Output ChannelsMulti-Format Audio A/D, D/A and D/D ConverterRouter and Monitoring Interface Thunderbolt 3 I/O (256 Ch.)Dante AoIP I/O (256 Ch.)MADI I/O (64 Ch.)ADAT I/O (16 Ch.)8 Slots for Optional Multi-Format DAD I/O Cards512-64 Ch. Pro|Mon Summing and Speaker EQ Processing
I/O cards sold separately
Features
The basic I/O configuration for the AX64 multi-format interface is:2 Thunderbolt 3 Ports (each w. 15W power)256 Bidirectional Channels at 48 & 96 kHzASIO / Core Audio Thunderbolt PCIe DriversMADI/BNC-Optional 2 x SFP/BNC MADIADAT /Litepipe (16 Ch.)DANTE: 256 Ch. at 48 kHz, 128 Ch. at 96kHz (IP Core)WC I/O ? SPQ: 64 Ch. with 16 FiltersPro|Mon Support ? Summing Processor 64 Output / 512 Input BussesInternal Router: 4096 x 409632bit Floting Point Processing8 Slots for Any Available Expansion CardsAvid Eucon Enabled Devices via DADmanApple Silicon M1 and Intel Compatible SoftwareControl via Ethernet or Thunderbolt ConnectionDual 110/240V AC Power Connection as Option
Specifications
2 x Thunderbolt 3 Ports w. 15W Power Source Each256 Bidirectional Channels at 44.1/48 kHz256 Channels at 88.2/96 kHz128 Channels at 176.4/192 kHz64 Channels at 352.8/384kH
