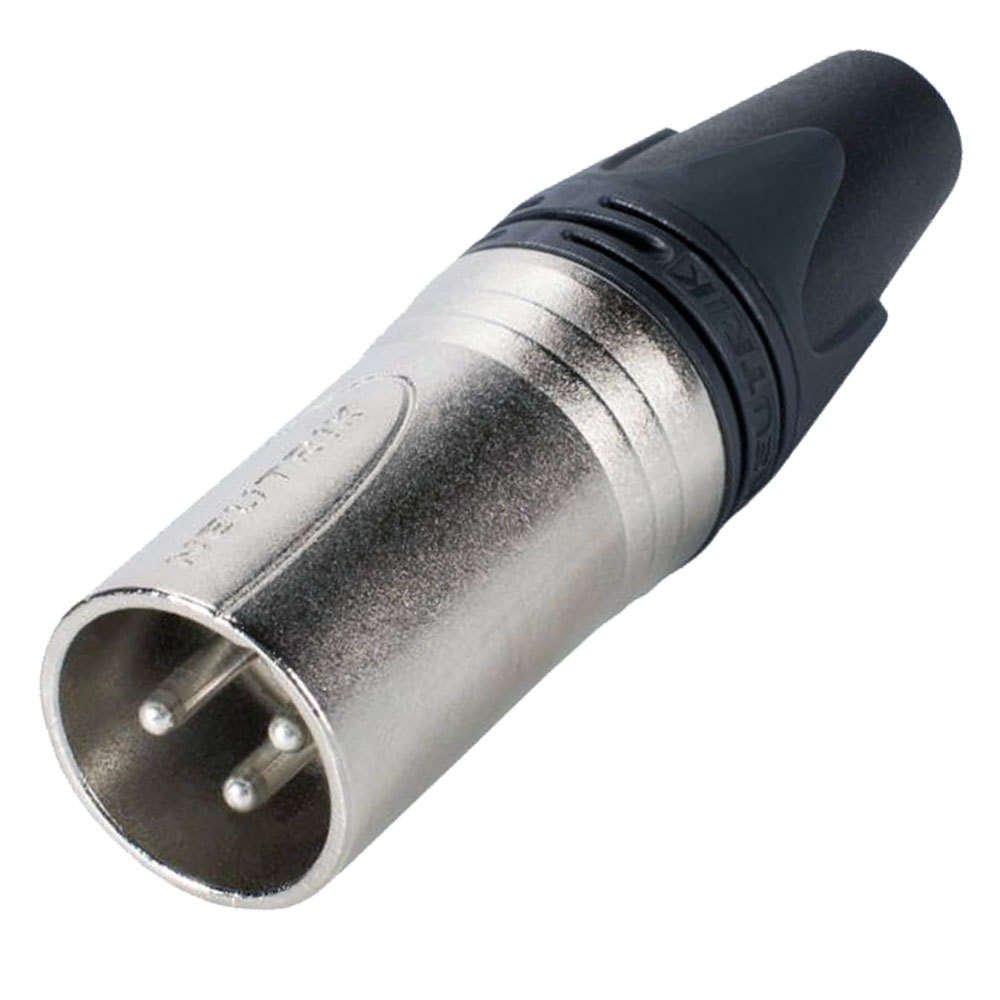

NEUTRIK  |  SKU: 259

NC3MXX

Connectors

Three-pole XLR male, nickel shell, silver contacts, latch lock, solder terminals, zinc diecast housing, strain relief boot, supports up to 16 amps, IP40 rated

$5.55 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The NC3MXX is a 3-pole male XLR cable connector with a nickel-plated zinc diecast housing and silver-plated brass contacts, designed as the next generation of the industry-standard X series. Built for durability and reliability, it features an improved locking recess, rugged shell construction, and a chuck-type strain relief system that ensures higher pull-out force and easier assembly.

A polyurethane boot with gland protects against cable bending stress, while optional colored rings and boots allow for easy coding or identification. Engineered for professional audio applications, the NC3MXX is rated for over 1000 mating cycles, with 16 A current capacity, <=3 m ohm contact resistance, and full compliance with IEC 61076-2-103 standards.

Features

Reliable Male XLR Connector: Designed for balanced audio connections, offering consistent signal transfer and improved contact integrity.

Durable All-Metal Housing: Rugged zinc diecast shell with nickel plating ensures long-lasting performance in demanding environments.

Enhanced Locking Mechanism: Updated latch lock design without side window provides secure connections and greater durability.

Improved Strain Relief: Chuck-type strain relief and flexible polyurethane boot reduce cable stress and increase pull-out resistance.

Easy and Fast Assembly: Internal threading and ergonomic design make the connector simple to assemble and user-friendly.

High Electrical Integrity: Low contact resistance, high insulation resistance, and solder contacts for dependable performance.

Versatile Cable Compatibility: Supports cable outer diameters from 3.5 mm to 8.0 mm and accommodates wire sizes up to 14 AWG.

Customization Options: Compatible with colored rings and boots for easy identification and coding in complex setups.

Specifications

General Specifications:

Product name: NC3MXX

Connector type: 3-pole XLR cable connector

Gender: Male

Housing: Nickel-plated zinc diecast

Contact plating: 2 micrometer silver

Contact material: Brass (CuZn39Pb3)

Shell plating: Nickel

Locking device: Latch lock

Wiring type: Solder contacts

Lifetime: Greater than 1,000 mating cycles

Compliance: IEC 61076-2-103

Electrical Specifications:

Capacitance between contacts: Less than or equal to 4 picofarads

Contact resistance: Less than or equal to 3 milliohms

Dielectric strength: 1,500 volts DC

Insulation resistance: Greater than 10 gigaohms (initial)

Rated current per contact: 16 amperes

Rated voltage: Less than 50 volts

Mechanical Specifications:

Cable outer diameter compatibility: 3.5 millimeters to 8.0 millimeters

Insertion force: Less than or equal to 20 newtons

Withdrawal force: Less than or equal to 20 newtons

Maximum wire size: 2.5 square millimeters

Maximum wire size: 14 American Wire Gauge

Strain relief: Improved chuck type with polyacetal construction

Material Specifications:

Boot material: Polyurethane

Insert material: Polyamide (PA66)

Locking element material: Zinc diecast (ZnAl4Cu1)

Shell material: Zinc diecast (ZnAl4Cu1)

Shell plating: Nickel

Strain relief material: Polyacetal (POM)

Environmental Specifications:

Flammability rating: UL 94 V-0

Protection class: IP 40

Operating temperature range: minus 30 degrees Celsius to plus 80 degrees Celsius

Solderability standard: Complies with IEC 68-2-20
