Neumann TLM 103 MT Stereo Set
UPC/EAN #615104085022
MPN #008502
$3625.00
Save 19.6%, MSRP $4509.00

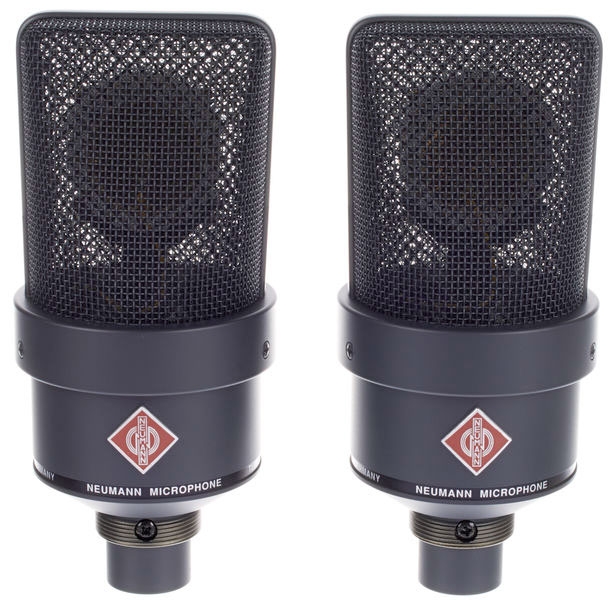

Stereo pair of TLM 103, Large-Diaphragm Cardioid Condenser Microphone with K 103 capsule, includes EA 1 mt suspension shockmount and aluminum case. Black finish
The TLM 103 is the ideal large diaphragm microphone for all professional and semi-professional applications requiring the utmost in sound quality on a limited budget.
By utilizing the tried and true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet unattained low self-noise and the highest sound pressure level transmission. The capsule, derived from that used in the U 87, has a cardioid pattern, is acoustically well-balanced and provides extraordinary attenuation of signals from the rear.
The TLM 103 is available in satin nickel and matte black. Delivery includes an SG 1 metal swivel mount and a wooden jeweler's box.
Applications
Due to the universal cardioid pattern, straightforward handling, extremely low self-noise level, and finally, the price, the TLM 103 is predestined for all demanding applications from home recording to professional broadcasting and commercial recording studios.
Polar pattern
The TLM 103 is equipped with a large diaphragm capsule with cardioid pattern. By focusing on this pattern used in most recording situations the attenuation of unwanted rear sound has been optimized. Off-axis sounds are rendered naturally while isolation is increased. This also leads to a high feedback suppression when the microphone is used in live situations or where loudspeaker playback is a factor.
Acoustic features
The TLM 103 is addressed from the front, marked with the red Neumann logo on the microphone body. The K 103 large diaphragm capsule is based on the K 87, well known from the U 67 / U 87 microphones.The capsule has a flat frequency response up to about 5 kHz, and above that, a wide flat 4 dB presence boost.
The large wire mesh headgrille protects the capsule from plosive sounds and effectively prevents pop noises. These characteristics are achieved without resorting to corrective resonance effects.
Therefore, the microphone maintains an excellent impulse response and reproduces the finest details of music and speech without coloration.
Electrical features
With just 7 dB-A / 17.5 dB CCIR the self-noise level of the TLM 103 is so reduced that even the smallest signals are reproduced basically noise-free. As it is capable of handling sound pressure levels up to 138 dB without distortion, the TLM 103 provides a dynamic range of 131 dB, according to DIN/IEC 651.The letters TLM stand for "transformerless microphone". With TLM technology the usual output transformer is replaced by an electronic circuit. As with traditional transformers, it ensures good common mode rejection, and prevents RF interference that may influence the balanced audio signal.
Operational safety
The entire internal construction is elastically mounted to attenuate any structure borne noise that could interfere with the TLM 103's operation. Furthermore the capsule is set on an elastic mount. The frequency range reaches below 20 Hz and thus even very low bass signals are reproduced without coloration.
Due to this low frequency extension, the TLM 103 is more sensitive to structure borne interference and wind noise. For such cases, the elastic suspension EA 1 and the windscreen WS 87 are available as accessories. For close vocal use, the PS 10 or PS 20 pop screens are recommended.
Features
Large diaphragm cardioid microphonePressure gradient transducer with with one-diaphragm capsuleTransformerless circuitryExtremely low noise: 7 dB-AIncludes swivel mountStraightforward handling for homerecording and professional studiosHigh-quality professional equipment for limited budgets
Specifications

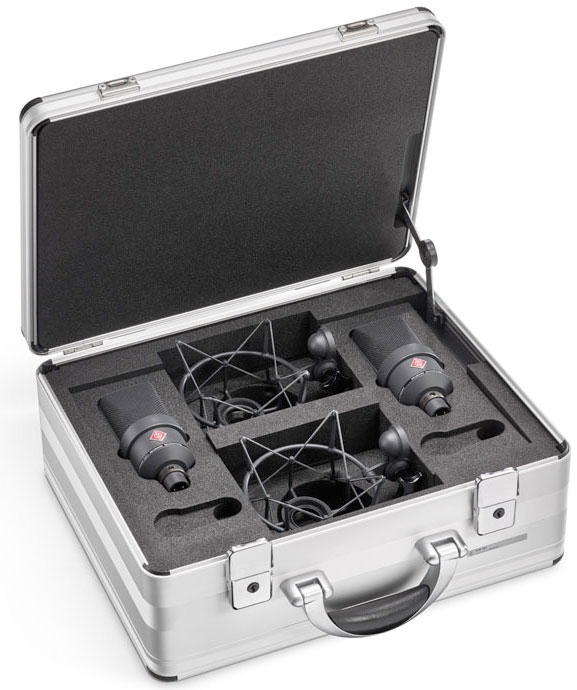

Includes: 2 x TLM 103 (mt) Microphone, 2 x EA 1 (mt) elastic suspension, Aluminium caseAcoustical operating principle: Pressure gradient transducerDirectional pattern: CardioidFrequency range: 20 Hz ... 20 kHzSensitivity at 1 kHz into 1 kohm: 23 mV/PaRated impedance: 50 ohmsRated load impedance: 1 kohmsEquivalent noise level, CCIR1): 17.5 dBEquivalent noise level, A-weighted1): 7 dB-ASignal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 76.5 dBSignal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 87 dBMaximum SPL for THD 0.5%2): 138 dBMaximum output voltage: 13 dBuSupply voltage (P48, IEC 61938): 48 V ± 4 VCurrent consumption (P48, IEC 61938): 3 mAMatching connector: XLR3FWeight: approx. 450 gDiameter: 60 mmLength: 132 mm
