Neumann TLM 103 Mono Set
UPC/EAN #615104085084
MPN #008508
$1950.00
Save 18.7%, MSRP $2399.00
Large-Diaphragm Cardioid Condenser Microphone with K 103 capsule, includes EA 1 Suspension Shockmount and Aluminum Case. Nickel finish
The new standard for home recording and the music industry. The mic for everyone who, despite budget limitations, does not want to do without the uncompromising Neumann sound.
By utilizing the tried and true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet unattained low self-noise and the highest sound pressure level transmission. The capsule, derived from that used in the U 87, has a cardioid pattern, is acoustically well-balanced and provides extraordinary attenuation of signals from the rear.

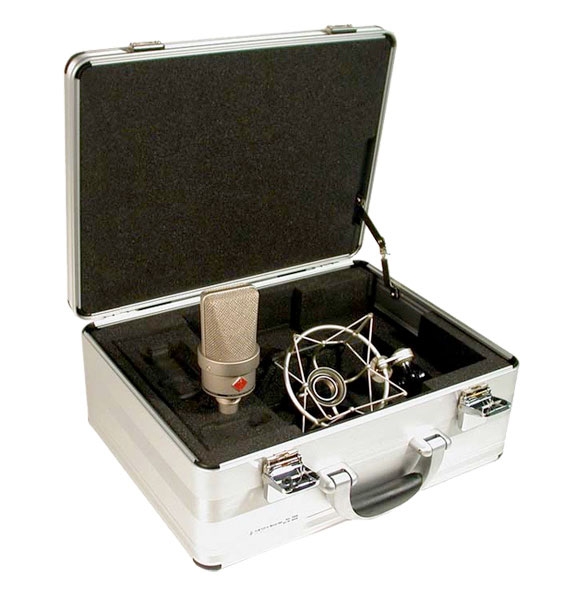

The TLM 103 is available in satin nickel and matte black. Delivery includes an EA1 Microphone suspension and an aluminium case - suitable for 2 microphones and 2 shock mounts
Applications
Due to the universal cardioid pattern, straightforward handling, extremely low self-noise level, and finally, the price, the TLM 103 is predestined for all demanding applications from home recording to professional broadcasting and commercial recording studios.
Polar pattern
The TLM 103 is equipped with a large diaphragm capsule with cardioid pattern. By focusing on this pattern used in most recording situations the attenuation of unwanted rear sound has been optimized. Off-axis sounds are rendered naturally while isolation is increased. This also leads to a high feedback suppression when the microphone is used in live situations or where loudspeaker playback is a factor.
Acoustic features
The TLM 103 is addressed from the front, marked with the red Neumann logo on the microphone body. The K 103 large diaphragm capsule is based on the K 87, well known from the U 67 / U 87 microphones.The capsule has a flat frequency response up to about 5 kHz, and above that, a wide flat 4 dB presence boost.
The large wire mesh headgrille protects the capsule from plosive sounds and effectively prevents pop noises. These characteristics are achieved without resorting to corrective resonance effects.
Therefore, the microphone maintains an excellent impulse response and reproduces the finest details of music and speech without coloration.
Electrical features
With just 7 dB-A / 17.5 dB CCIR the self-noise level of the TLM 103 is so reduced that even the smallest signals are reproduced basically noise-free. As it is capable of handling sound pressure levels up to 138 dB without distortion, the TLM 103 provides a dynamic range of 131 dB, according to DIN/IEC 651.The letters TLM stand for "transformerless microphone". With TLM technology the usual output transformer is replaced by an electronic circuit. As with traditional transformers, it ensures good common mode rejection, and prevents RF interference that may influence the balanced audio signal.
Operational safety
The entire internal construction is elastically mounted to attenuate any structure borne noise that could interfere with the TLM 103's operation. Furthermore the capsule is set on an elastic mount. The frequency range reaches below 20 Hz and thus even very low bass signals are reproduced without coloration.
Due to this low frequency extension, the TLM 103 is more sensitive to structure borne interference and wind noise. For such cases, the elastic suspension EA 1 and the windscreen WS 87 are available as accessories. For close vocal use, the PS 10 or PS 20 pop screens are recommended.
Features
Sound design inspired by the legendary U 87Broad presence boost, perfect for demanding vocal and instrumental recordingsExtremely low self-noise, captures even the faintest nuances
Specifications
Acoustical operating principle: Pressure gradient transducer
Directional pattern: Cardioid
Frequency range: 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm: 23 mV/Pa
Rated impedance: 50 ohms
Rated load impedance: 1 kohms
Equivalent noise level, CCIR1): 17.5 dB
Equivalent noise level, A-weighted1): 7 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 76.5 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 87 dB
Maximum SPL for THD 0.5%2): 138 dB
Maximum output voltage: 13 dBu
Supply voltage (P48, IEC 61938): 48 V 4 V
Current consumption (P48, IEC 61938): 3 mA
Matching connector: XLR3F
Weight: approx. 450 g
Diameter: 60 mm
Length: 132 mm
