NEUMANN  |  SKU: 13913

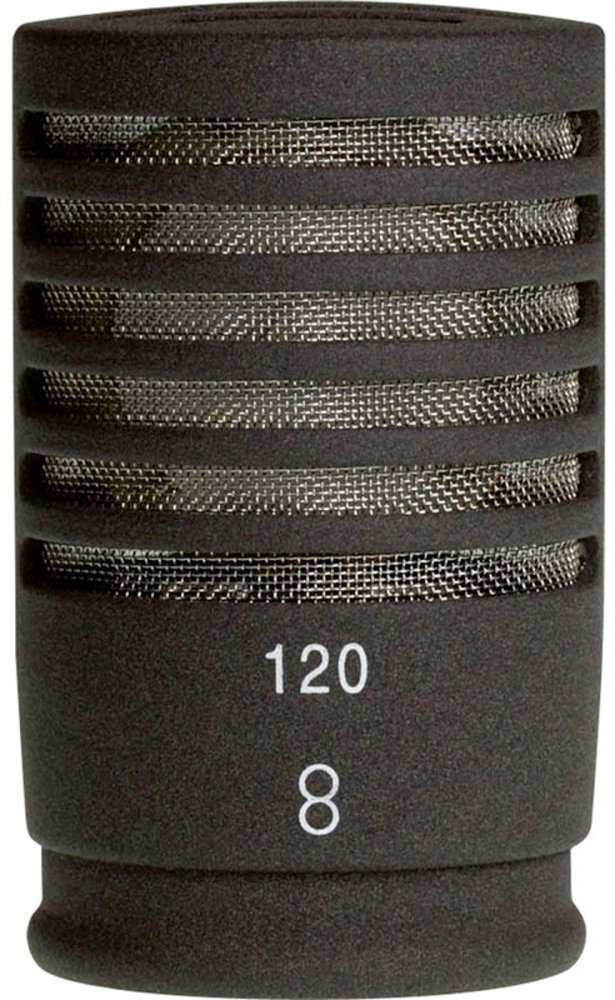

KK 120 NX

Condensor Microphones

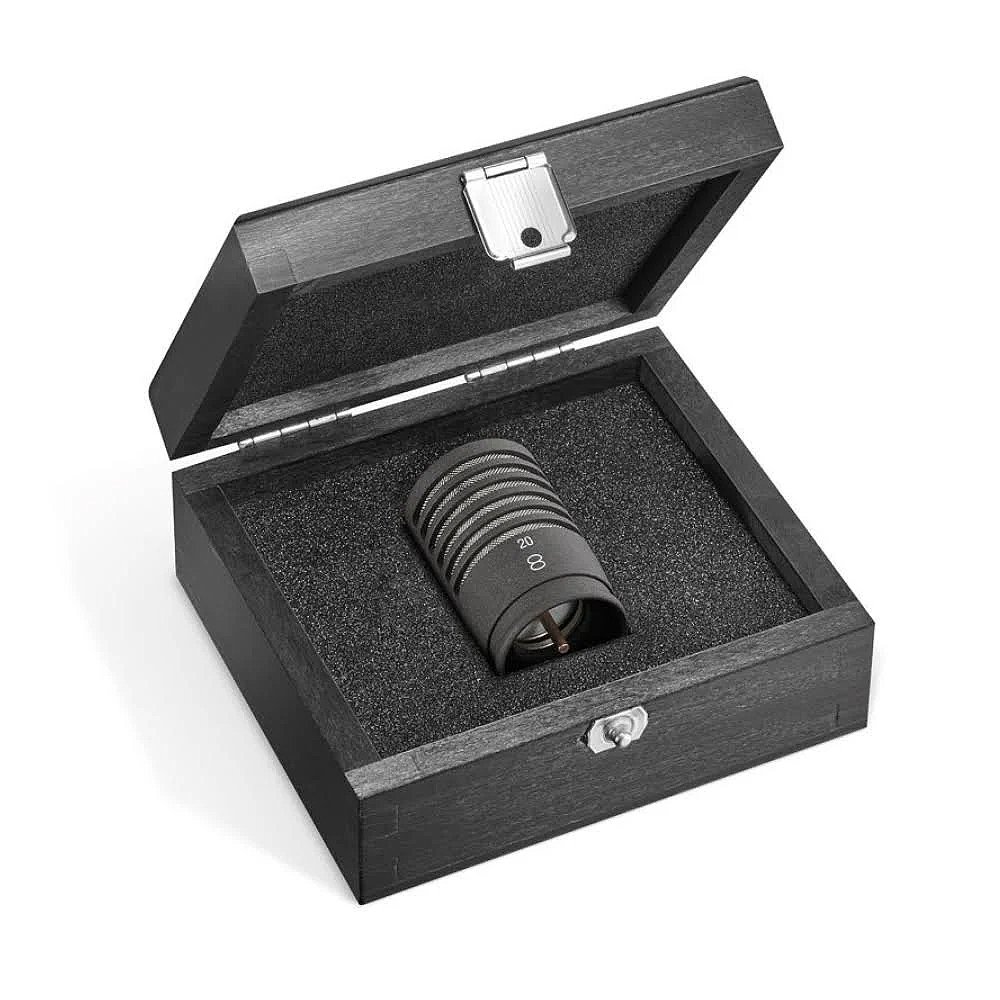

Figure-8 capsule head in woodbox. Compatible with KM A (analog) and KM D (digital) output stages, black color

$1,825.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The KK 120 is a pressure gradient transducer with figure-8 characteristic, side-addressed. The figure-8 pattern is realized with a single 16 mm diaphragm. Thus, all sound field components reach the diaphragm directly. As a result, the frequency response curves and sensitivities for 0 and 180are identical. The KK 120 capsule may be combined with other capsules/microphones for MS-stereo recording.

Features

Figure 8 Polar Pattern

For KM D and KM A Output Stages

Specifications

Acoustical operating principle: Pressure gradient transducer
Directional Pattern: Figure-8, side-fire
Frequency Range: 20 Hz...20 kHz
Sensitivity at 1 kHz into 1 kohm: 12 mV/Pa
Rated Impedance: 50 ohms
Rated load impedance: 1000 ohms
Equivalent noise level, CCIR 1: 25 dB
Equivalent noise level, A-weighted 2: 15 dB-A
Maximum SPL for THD 0.5% 3: 140 dB
Maximum SPL for THD 0.5% with preattenuation 4: 150 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL) 5: 69 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 6: 79 dB
Supply voltage (P48, IEC 61938): 48 V
Current consumption (P48, IEC 61938): max. 3.5 mA
Matching connector: XLR 3 F
Weight (output stage): 70 g
Weight (capsule only): 37 g
Diameter: 24 mm
Length (capsule only): 40 mm
Length (microphone): 130 mm
