MOTU  |  SKU: 10957

24Ai

USB

USB2/AVB Ethernet audio interface with 24 channels of analog input and DSP

$1,424.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

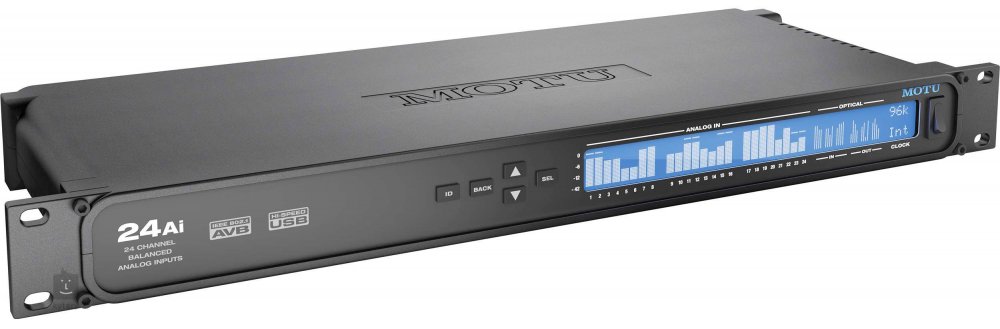

The 24Ai from MOTU is a single rack space USB 2.0 interface with industry-standard AVB networking for sub-millisecond network latency, and offers twenty-four channels of analog audio input combined with three banks of ADAT optical, for a total of seventy-two channels of I/O. The unit connects to a computer through USB 2.0, which provides more than enough bandwidth for the twenty-four analog channels, and when connected through AVB networking, supports hundreds of network channels.

All devices on an AVB network can stream audio to and from a computer, and everything can be controlled simultaneously from any computers, tablets, and smart phones connected to the network. The interface delivers excellent analog performance with digitally controlled analog trim on the analog inputs, and includes a forty-eight-channel software mixer modeled after large format mixing consoles, DSP effects with 32-bit floating point precision, flexible matrix-style routing and splitting, stand-alone operation, and Wi-Fi control.

Features

24 Balanced Analog Inputs

48 Channels ADAT I/O

Wordclock I/O

Onboard DSP

Digital Mixer with Effects

Expansive Matrix Routing

USB 2.0 and AVB Compliant

Standalone Mixing with Wireless Control

Up to 24-bit/192 kHz Resolution

Includes AudioDesk DAW Software

Specifications

Sample rates :


44.1, 48, 88.2, 96, 176.4, 192 kHz

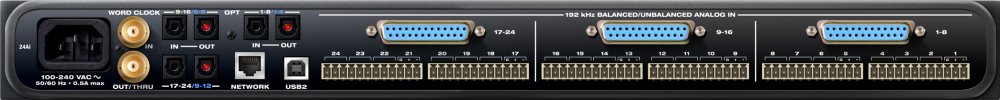

24Ai analog :


inputs 24 channels (balanced/unbalanced)
3x DB-25 D-sub and 6x 12-pin Phoenix
Max level: +24 dBu (digitally adjustable -96 to +22)

24Ao analog outputs :


24 channels (balanced, DC coupled)
3x DB-25 D-sub and 6x 12-pin Phoenix
Max level: +20 dBu (digitally adjustable -24 to 0 dB)

Digital I/O :


3 banks (24 ch) of ADAT optical at 1x sample rates
3 banks (12 ch) of SMUX optical at 2x sample rates
Stereo TOSLink (optical S/PDIF) on Bank A (optional)

Total I/O :


24 analog + 48 digital (72 total) at 1x rates
24 analog + 24 digital (48 total) at 2x rates
24 analog + 0 digital (24 total) at 4x rates

Computer I/O :


1 x USB 2.0 audio class compliant, USB 3.0 and iOS compatible
1 x AVB Ethernet (requires OS X Yosemite)

Computer I/O channels :


USB 2.0 (44.1 to 48 kHz): 64 in/out
USB 2.0 (88.2 to 96 kHz): 32 in/out
USB 2.0 (176.4 to 192 kHz): 24 in/out
AVB Ethernet: 16 to 128 in/out, depending on host computer speed

Sync I/O :


1 x word clock in
1 x word clock out

Front panel :


5 x switches

menu navigation

324 x 24 pixel LCD for level meters / menu nav
1 x AC power switch

Power :


International 100-240V autoswitching supply
50-60 Hz

0.5A max


Mac System Requirements

1 GHz Intel-based Mac or faster

2 GB RAM; 4 GB or more recommended

Mac OS X version 10.8 or later

Available high-speed USB 2.0 or AVB Ethernet port*

A large hard drive (at least 500 GB for recording)

*AVB Ethernet audio interface operation requires OS X Yosemite


Windows System Requirements

1 GHz Pentium-based PC compatible or faster

2 GB RAM; 4 GB or more recommended

Windows 7, 8 or 10

Available USB 2.0 or 3.0 port

Available Ethernet port for firmware updates

A large hard drive (at least 500 GB for recording)
