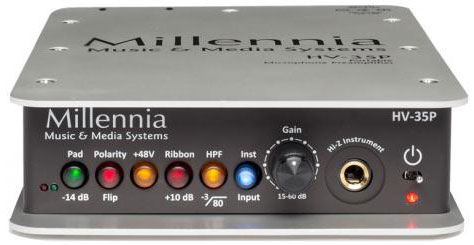

HV-35P

Continuously variable gain control

Front panel instrument input

DC coupled ribbon mic with 10dB gain boost setting

80 Hz rolloff filter

48V phantom power

14 dB Pad

Polarity flip

12 to 15V operation - 100 to 240V line lump power supply, 12V output, included

Minimum Gain:

14.5 dB, 1dB with Pad

Maximum Gain (continuously variable):

60 dB (70 dB in Ribbon Mode)

Frequency Response (-3 dB):

< 10 Hz to > 200 kHz
typical -1.0 dB @ 10 Hz
typical -1.5 dB @ 200 kHz

Noise (60 dB Gain, 10 Hz - 30 kHz, Inputs common):

-130 dB EIN

Total Harmonic Distortion + Noise (35 dB Gain, 10 Hz - 20 kHz bandwidth, +24 dBu Out):

< .003%, Typical < .001%

Intermodulation Distortion (50 Hz & 7 kHz) 35 dB Gain:

< .0006% +12 dBu Out < .001% +20 dBu Out

Phase Response (35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out):

< 2 degrees deviation

Common Mode Rejection Ratio (35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.):

> 65 dB, Typ > 85 dB

Slew Rate (35 dB Gain, +24 dBu Out):

> 25 Volts per microsecond

Maximum Input Level (20 Hz - 40 kHz):

+12dBu @ 0.02% THD+N, +18dBu @ 0.02% THD+N with pad

Maximum Output Level:

1 kHz @ 35dB of gain, THD+N is: < 0.001% at +26dBu output
< 0.05% @ +28 dBu output.

Phantom Input Impedance (1 kHz):

2,210 ohms

Output Impedance:

24.3 Ohms (x2)

Phantom Powering:

48V dc +/- 2V dc

Dimensions/Shipping Weight:

5.67" W x 1.69" H x 8.19" D, 3 lbs.
