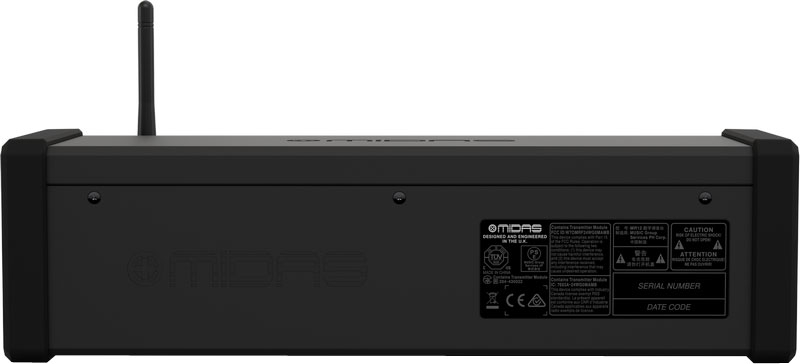

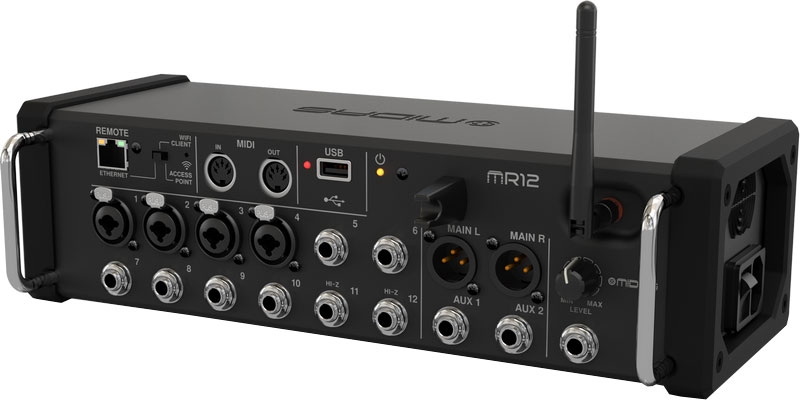

Midas MR12
UPC/EAN #748252183347
MPN #MR12
12-Input Digital Mixer for iPad/Android Tablets with 4 MIDAS PRO Preamps, 8 Line Inputs, Integrated Wifi Module and USB Stereo Recorder
The MIDAS M32 completely redefined what is possible from a digital mixer - and thousands of users are enjoying the results. Now that technology has been incorporated into the small but powerful MR12 rack-mountable mixer, which will forever change the way you record and the way you play live music.
A Mixer Whose Time has Come
Over the past few years, the world of recording and performance audio has experienced a major paradigm shift, one that requires musicians and performers alike to take advantage of emerging technologies that offer flexibility and ease of use. The MR12 is an 12-input portable mixer housed in a sturdy stage box design for use with iPad and Android tablets. It is ideally suited for both live and studio applications thanks to 4 award-winning MIDAS PRO mic preamps, integrated Wifi module for wireless control, MIDI I/O - and a USB connector for storing files or the recording and playback of uncompressed stereo WAV files. Free iOS, Android and PC apps enable you to move about the venue or the tracking room and manipulate all the parameters of your mix, and the performers have the freedom to dial-in a shared monitor mix. Advanced engineering and meticulous design combine to deliver professional-grade performance and impressive affordability - the MR12.
4 MIDAS PRO Mic Preamps
The MIDAS PRO mic amp was developed for the PRO Series mixing consoles and is also found in the M32 - and has been recognised by leading live sound and recording engineers as the very essence of the famous MIDAS sound. It is here in the MR12 that more than 40 years of design excellence has come together with premium grade components to provide unparalleled warmth and depth, subtle ambience, and immaculate spatial positioning - for more precise imaging than competing models. The award-winning MIDAS microphone preamplifier has inspired generations of live sound engineers to their best work, creating sonic landscapes that have captivated audiences worldwide. MR12 comes equipped with 4 MIDAS PRO preamps, all of which are literally ready for your input via the Neutrik combo connectors with locking latches.
Built-In Tri-Mode Wifi Router
Designed for the ultimate in mobility, the MR12 comes with an integrated Wifi module for direct control of your mixer's functions - without the need to setup and configure an external router. The MR12 gives you the freedom to focus on your mix, while allowing you to move about the venue to experience what every part of the audience is hearing. Plus you can adjust live monitor wedges from the artist's perspective - or better yet, let them mix their own IEMs and floor monitors via their own tablets.
Access Point is the easiest way to connect up to 4 clients directly and concurrently (i.e., iPad, Android smartphone/tablet or laptop). This mode should have your remote control up and running in less than a minute.
Wifi Client allows you to add your mixer to the existing wireless network where the controlling apps and devices are connected.
Alternately, wired connections can be made directly to your PC, to a local area network (LAN), or when connecting to a dedicated Wifi router, e.g., for extended range or 5 GHz applications.
Recording Simplified
MR12 features a convenient USB connector that makes it easy to store files or record and playback uncompressed stereo WAV files of your mix. Dial in the perfect monitoring mix with effects and zero-latency performance using one of the Aux buses, while recording up to 12 source signals - and send the keyboard player's MIDI notes to your DAW for recording and editing.
Whether you are making rock history in the studio, or you want to capture intimate live performances - it has never been easier to record stunning tracks with exceptional clarity.
Revolutionary Auto-Mixing
When your application calls for a multiple-microphone setup, such as an onstage panel discussion, press conference or courtroom proceeding, etc., it can become a challenge to maintain so many open mics - and preserve maximum gain and priority for the moderator.
A major first for compact audio mixers, our revolutionary M AIR Gain Sharing technology can easily manage fully automated mixes with up to 4 live microphones. Based on the legendary Dan Dugan automix system, the MR12's gain sharing paradigm automatically controls the levels of all selected microphones in real time, without any gating artifacts or noise modulation.
This function dramatically reduces the typical feedback, studio noise and comb filtering challenges that can occur when two, or more mics are in close proximity of each another. M AIR Gain Sharing technology provides a consistent system gain structure, even when multiple speakers are talking at the same time.
4 Onboard M32 Effects Engines
Equipped with the very same FX engines as the now legendary M32 Digital Mixing Console, the onboard virtual FX Rack provides access to four true-stereo (8 mono), multi-effects processors including delay, chorus, dynamics - plus the MR12 can run production-quality, true-stereo reverbs concurrently with 31-band EQ on the main and aux buses, all without the need for any additional hardware.
You can select any combination of high-end simulations of legendary studio effects, such as the Lexicon 480L and PCM70, as well as the EMT250 and Quantec QRS reverbs. Onboard processing means your computer no longer has to do the heavy lifting during a mixing session with DAW plugins, as the MR12 has a whole studio of FX under its bonnet.
Custom-designed, and physically modeled after some of the most iconic and sought-after processors, all effects run inside the low-latency environment of the M32 mix engine, ensuring flawless performance, flexible routing and the end of cable faults.
High-End FX Racks at Your Finger Tips
The immaculate tube signal path in Teletronix' LA-2A Leveling Amplifier has left its exceptional clarity, its rich and warm compression on countless albums of the past decades.
Features
iPad*/Android* tablet controlled 12-input digital mixer for studio and live application4 award-winning MIDAS PRO microphone preamplifiersBuilt-In Tri-Mode Wifi router for direct operation-no need for external routersDugan*-style Auto-Mixing automatically manages microphone gain sharingUSB connector for uncompressed stereo WAV recording and playback4 digital signal processing effects enginesRack ears and protection bumpers included for flexible rack and onstage applications6 aux buses and main LR with inserts, full dynamics processing and 6-band parametric or 31-band graphic EQ2 TRS aux outputs and 2 XLR main outputs plus phones connector40 bit floating point digital signal processingFree iOS, Android and PC/Mac*/Linux* apps available for remote operation via Ethernet, LAN or WiFiMIDI In/Out allows controlling the mixer via MIDI equipmentFuture firmware updates, incl. new FX "Plug Ins", downloadable from midasconsoles.com free of chargeAuto-ranging universal switch-mode power supplyDesigned and engineered in the U.K.
Specifications
General Specifications:

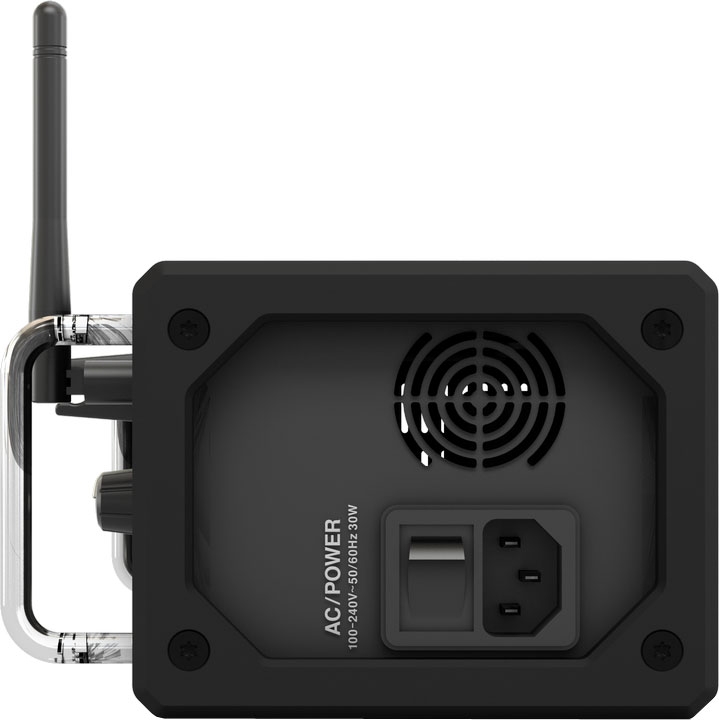

12-input digital mixerDesigned for iPad and Android tablet controlSuitable for live and studio applicationsIntegrated Wi-Fi module for wireless controlMIDI In/Out for external controlUSB connector for uncompressed stereo WAV recording and playbackAuto-ranging universal switch-mode power supply (100-240 V, 50/60 Hz)Dimensions: 333 mm (W) x 149 mm (D) x 95 mm (H)Weight: 2.9 kg
Input Channels:
4 Midas PRO microphone preamplifiers with Neutrik XLR/TRS combo jacks8 line inputsInput impedance: 10 k? (XLR), 20 k? (TRS)Maximum input level: +23.5 dBu (XLR), +21 dBu (TRS)
Output Channels:
2 XLR main outputs2 TRS aux outputs1 TRS headphone outputOutput impedance: 50 ?Maximum output level: +21 dBu
Processing:
40-bit floating-point digital signal processing4 true-stereo (8 mono) internal effects engines6 aux buses and main L/R with inserts, full dynamics processing, and 6-band parametric or 31-band graphic EQ100-band Real Time Analyzer (RTA) for all channel and bus EQsDugan-style auto-mixing for automatic microphone gain sharing
Connectivity:
Built-in tri-mode Wi-Fi router (Access Point, Wi-Fi Client, Ethernet)Ethernet (RJ45) portMIDI In/Out (DIN)USB Type-A port for recording and playback
Performance:
Frequency response: 20 Hz " 20 kHz (±0.5 dB)Dynamic range: 107 dB (analog in to analog out)A/D dynamic range: 110 dBD/A dynamic range: 111 dBTotal harmonic distortion (THD): 0.005%Latency: 0.8 ms (analog I/O, including all channel and bus processing, excluding insert effects)
