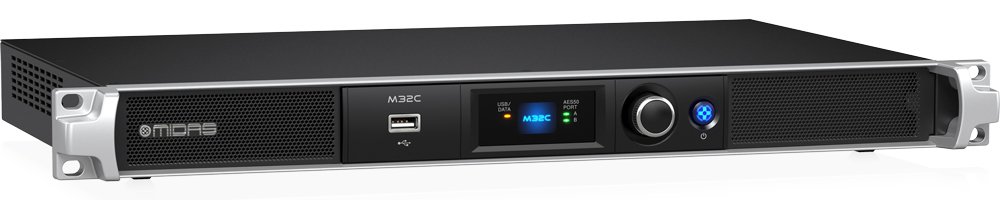

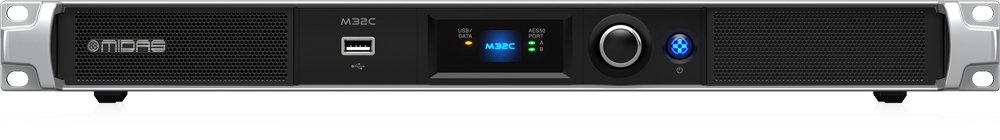

The 40-input, 25-bus M32C takes the brain of the flagship M32 Digital Mixing Console and packs it all into a high-performance aluminium and steel 1U form factor

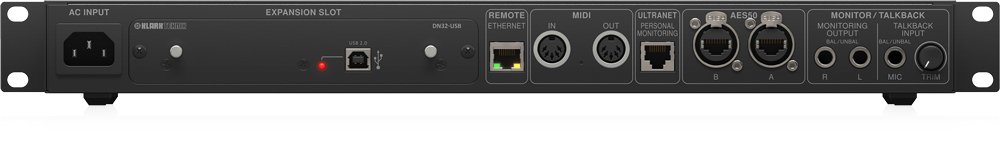

Combine the M32C with our DL16 or DL32 Stage Boxes to effortlessly run sound with high I/O counts in multiple remote locations. Dual AES50 networking CAT5 connectors allow for up to 96 remote inputs and 48 output channels to be controlled from and processed by the M32C. All of this can be managed concurrently from various locations and instances via our free remote control software applications, M32-EDIT, M32-MIX, and M32-Q.

Above all, M32C is designed to put the power of digital in your hands, without compromise. MIDAS' singular focus on a matchless value proposition means M32C integrates advanced features such as integrated personal monitor mixing and true high-speed digital audio networking as standard features.

Built for Tomorrow

The M32C is built for today, and tomorrow - its future-proof 96 kHz capable open architecture design and industry-leading 192 kHz 24 bit ADC and DAC converters provide outstanding state-of-the-art audio performance.

"Acoustic Integration" - the Live Sound Revolution

Legendary 40-year old British company TURBOSOUND, famous for producing some of the world's best speaker systems, have teamed up with MIDAS to seamlessly integrate mixer and speaker systems. We call it "Acoustic Integration". The M32C's ULTRANET bus allows streaming up to 16 channels of pristine digital audio to an array of TURBOSOUND iQ speakers - all on a single CAT5 cable, along with control data to set sound presets remotely.

Furthermore, iQ Series loudspeakers feature "True Physical Modelling" of some of the most popular speakers, which can be easily remote controlled via the M32C, allowing the sound engineer to apply different speaker models in real time from the comfort of the mixing desk.

What are AES50 and SuperMAC

AES50 simultaneously provides high channel counts, extremely low and deterministic latencies, accurate phase-aligned networked clock distribution, error detection, network redundancy, with simple deployment and ease of use to meet the needs of the live performance industry. This unique combination also benefits both live and studio recording applications, as well as post-production, broadcasting and audio routing infrastructure. SuperMAC is a proprietary implementation of AES50 owned by KLARK TEKNIK. Originally developed by Sony Pro-Audio Labs in Oxford, UK, it forms the basis of the Audio Engineering Society's AES50 open standard for digital audio networking - High Resolution Multi-channel Audio Interconnection (HRMAI), as published by the Audio Engineering Society, Inc.
  • 48 bidirectional audio channels @ 48 kHz over Neutrik etherCON-terminated shielded (STP)
  • CAT5 cable (max. length 100 meters / 328 feet)
  • Single cable duplex interconnection for audio and sample clocks
  • Ethernet physical layer audio data transmission
  • High channel count and ultra-low deterministic latency (2x3 samples = 1/8 ms per node)
  • Accurate phase-aligned clock distribution
  • Comprehensive error detection and management
  • Provision for redundant networking
  • Minimal configuration - total ease of deployment and use
  • Ethernet TCP/IP protocol-compatible auxiliary data channel

  • Virtual Effects Racks

    M32C includes an extensive array of onboard effects, rendering outboard processing racks a thing of the past. The Virtual FX rack features 8 true stereo, studio-grade effects engines each assignable to any input, group or output mix bus. Choose from high-end FX modules including a range of reverbs, delays, EQs, dynamics and much more.

    Each FX algorithm has been completely re-imagined for stunning performance - typically costing several times the price of the M32C.

    Custom-designed, and physically modeled after some of the most iconic and sought-after processors, all effects run inside the low-latency environment of the M32C mix engine, ensuring flawless performance, flexible routing and the end of cable faults forever!

    Features

  • 40-input channel, 25-bus, 1U rackmountable digital mixing core for live and installed sound application
  • 25 time-aligned and phase-coherent mix buses
  • AES50 networking allows up to 96 inputs and 96 outputs
  • Open architecture allows for future 96 kHz operation
  • High-performance aluminium and high-impact steel structure
  • 40 bit floating point digital signal processing
  • 8 DCA and 6 mute groups
  • 8 digital signal processing effects engines
  • 32 x 32 channel USB 2.0 audio interface
  • Built-in expansion port for audio interface cards or digital networking bridges
  • MIDI In/Out for remote scene recall or controlling other MIDI equipment
  • Optional wireless remote control with MIDAS Apps for iPhone* and iPad*
  • Auto-ranging universal switch-mode power supply
  • Designed and engineered in England
