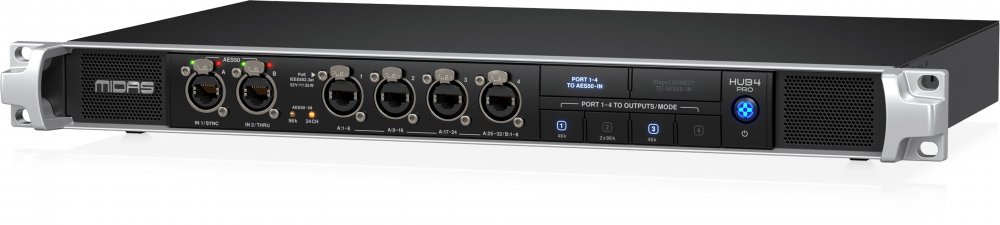

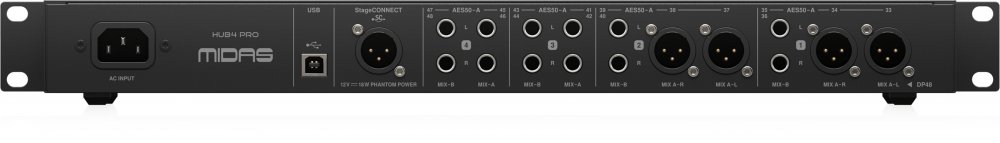

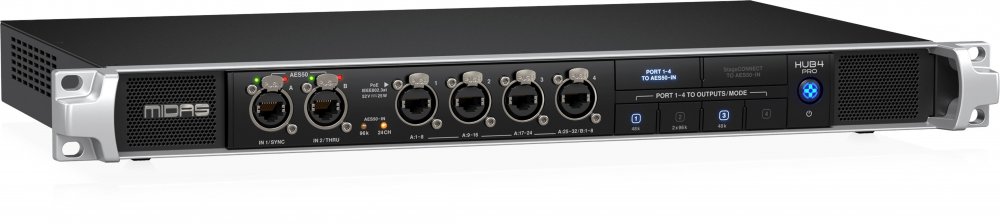

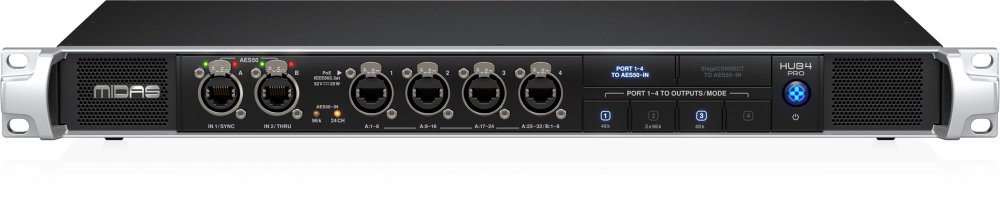

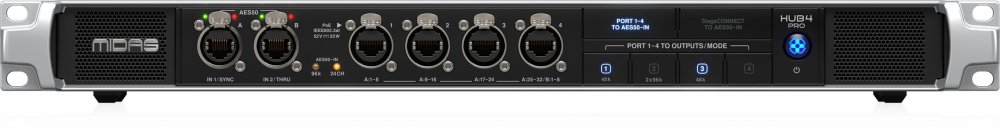

MIDAS  |  SKU: 23826

HUB4 PRO

Digital Stage Boxes

PoE for 4 mixers or stage boxes, AES50 in/thru, StageConnect I/O, 16 analog outs, 96 kHz support, rugged 1U design, global power supply

$0.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The HUB4 PRO is a versatile and powerful central monitoring hub designed for seamless integration into modern stage and studio setups. Engineered to enhance personal monitoring and simplify audio distribution, it supports up to four Midas DP48 personal mixers with Power over Ethernet (PoE) and provides 16 balanced analog outputs to connect directly to IEM transmitters in a side rack. Its dual AES50 ports allow up to 48 channels of bidirectional 24-bit audio at 44.1/48 kHz-or dual 24-channel operation at 96 kHz-making it adaptable to various professional workflows. The HUB4 PRO also enables cascading with additional hubs or stage boxes, making it ideal for complex or large-scale audio environments, including symphonic applications.

Designed for rugged performance in a compact 1U chassis, the HUB4 PRO includes intuitive front-panel controls for routing audio from personal mixers to analog outputs and managing StageConnect and AES50 upstream signals. It offers excellent flexibility with integrated StageConnect technology, which allows up to 32 additional channels of ultra-low latency audio using standard XLR or DMX cables. Additionally, the HUB4 PRO supports remote control functionality, enabling FOH consoles like the Midas M32 and Heritage D Series to configure and manage connected DP48 units. With the ability to power and interface with up to four Midas DL8 stage boxes via a single CAT5e cable per port, this unit significantly reduces stage clutter while boosting reliability and efficiency for live and broadcast audio scenarios.

Features

Supports Personal Monitoring: Powers up to four DP48 personal mixers with audio and control over a single cable.

Analog Mix Outputs: Provides 16 balanced outputs for sending stereo mixes directly to IEM transmitters.

Flexible Digital Audio Routing: Uses AES50 ports for audio input/output, mixer communication, and hub cascading.

Stage Box Integration: Connects and powers up to four DL8 stage boxes via PoE, simplifying stage setup.

StageConnect Interface: Adds 32 channels of ultra-low latency audio with one standard XLR cable.

Easy Remote Control: Transfers channel names and mix settings from compatible consoles to DP48 mixers.

Monitor and Talkback Support: Allows personal mix monitoring and includes talkback routing via channel 48.

Front Panel Controls: Includes buttons for routing personal mixes to analogue outputs or digital paths.

Durable and Portable: Built in a rugged 1U chassis, ideal for stage racks and touring.

Universal Power Supply: Equipped with an auto-switching power supply for global compatibility.

Specifications

General Specifications

Personal monitoring system hub with PoE powering for 4 DP48 mixers or DL8 stage boxes

AES50 IN and THRU ports (2 x RJ-45) for cascading or stage box integration

StageConnect master output on 1 x 3-pin XLRM

Supports 48 channels at 48/44.1 kHz or 2 x 24 channels at 96 kHz

1U rugged chassis for portable or rackmount use

Universal auto-ranging switched-mode power supply

PoE Ports and Connectivity

4 x RJ-45 ports for DP48 mixers or Midas DL8 stage boxes

IEEE 802.3at PoE support per port

Shielded CAT5e cable up to 250 ft / 80 m recommended

Analog Outputs

16 balanced line-level outputs

Outputs 1: 2 x 6.35 mm TRS jack, 2 x 3-pin XLRM

Outputs 2: 2 x 6.35 mm TRS jack, 2 x 3-pin XLRM

Outputs 3: 4 x 6.35 mm TRS jack

Outputs 4: 4 x 6.35 mm TRS jack

Output impedance: 100 ohm

Maximum output level: +21.5 dBu

Digital Audio Specifications

AES50: 48 bidirectional channels at 48/44.1 kHz or 2 x 24 channels at 96 kHz

StageConnect: 32-channel uncompressed 24-bit PCM audio

StageConnect latency: sub-millisecond

StageConnect cable type: standard XLR or 110-ohm DMX

USB Interface

Class compliant USB 2.0 Type B

Controls and Indicators

Buttons for Port 1-4 to AES50 In

Button for StageConnect to AES50 In / Update

Button for Port 1 to Outputs 1 / 48 kHz

Button for Port 2 to Outputs 2 / 96 kHz x2

Button for Port 3 to Outputs 3 / 96 kHz x1

Button for Port 4 to Outputs 4

Power On/Off button

LED indicators for 96 kHz, 24 Channel, and Power On

Remote Control and Monitoring

Channel naming and color properties from M32/HD96 consoles

Remote control forwarding between DP48 units

Summed talkback signal sent on Channel 48

Monitoring of personal mixes via AES50 upstream

Compatibility and Integration

Cascading support for additional HUB4 PRO units

Compatible with Midas DL8, DL16, DL32 stage boxes

Compatible with Midas DP48 personal monitor mixers

Control message support from Midas M32 and Heritage D Series consoles
