Midas DL32
UPC/EAN #748252156747
MPN #DL-32

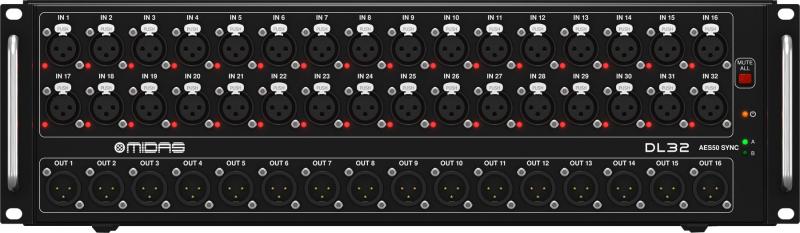

32 Input, 16 Output Stage Box with 32 MIDAS Microphone Preamplifiers, ULTRANET and ADAT Interfaces.
DL32
Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world - the I/O...
MIDAS - The Legend in Sound Quality
Ever since our formation in the 1970s, we have had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations worldwide, legendary consoles, such as the XL4 and Heritage H3000 have quickly become industry standards.
We have earned an impeccable reputation due to our no-compromise approach to audio and build quality, and in particular for our Award-winning Mic Preamps, which are considered by industry experts as the industry's best-sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality.
Massive Connectivity

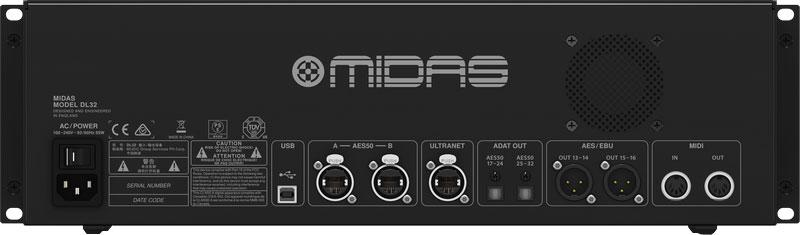

When used as part of a complete M32 system, two DL32 Stage Boxes can be cascaded via the built-in AES50 ports, providing connectivity for up to 64 mic/line inputs, 32 balanced outputs and the ULTRANET port allows direct connection to TURBOSOND iQ Series loudspeakers and the BEHRINGER POWERPLAY P-16 Personal Monitoring System - which can feed up to 48 individual monitor mixers. We also included 2 optical ADAT sockets and AES-3 (AES/EBU) for connecting to outboard devices, a convenient USB port for system updates via your PC - plus MIDI I/O for lighting systems and sound module control.
Ecosystem and Beyond
The DL32 was initially designed with our M32 Digital Mixing Console in mind, but any mixingboard with AES50 networking capability can still tap directly into the DL32's powerful feature set.For instance, a DL32 and M32C could be jointly utilised to create a remote controlled digital mixingsystem in only 4U. Another prime application might include the M32C providing independentmonitor mix duties, while also relaying and sharing all I/O with the main console - an M32, or anyother digital mixer that supports MADI, Dante, ADAT or AES50 I/O. Reasonably priced option cards to replace the standard 32 x 32 channel USB interface are separately available for that exact purpose.You can even mix the complete show from the onstage M32C via dedicated remote control apps. And since the DL32 and M32C communicate via AES50, they can be separated by up to 100 m (328')of CAT5 cabling, should that be more convenient for the venue.
Features
32 award-winning MIDAS PRO microphone preamplifiers with switchable 48 V phantom power16 electronically balanced low impedance line level outputsULTRANET personal monitoring system connectivity for in-ear applicationsDigital audio and control connectivity for TURBOSOUND speaker systems with ULTRANET networking capabilityDual AES50 SuperMAC ports for cascading additional DL16 stageboxes - no merger or router requiredAutomatic AES50 stage-split mode when connected between MIDAS M32 Series FOH and monitor consoles
Specifications
32 award-winning MIDAS PRO microphone preamplifiers with switchable 48 V phantom power16 electronically balanced low impedance line level outputsULTRANET personal monitoring system connectivity for in-ear applicationsDigital audio and control connectivity for TURBOSOUND speaker systems with ULTRANET networking capabilityDual AES50 SuperMAC ports for cascading additional DL16 stageboxes-no merger or router requiredAutomatic AES50 stage-split mode when connected between MIDAS M32 Series FOH and monitor consolesDual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputsRemote operation via shielded CAT5e cable up to 330 ft / 100 m lengthMute All function for quietly patching any inputs on stageMIDI In/Out for bidirectional communication between MIDAS M32 Series console and on-stage MIDI devicesFeatures Neutrik etherCON* AES50 and ULTRANET network portsRugged 3U rackmount chassis for durability in portable applicationsAuto-ranging universal switch-mode power supply
Write a review about the Midas DL32
![]()
4.0
Sampson
Toronto
June 21, 2019
Not enough M32?
I?m driving an M32r and this provides me with the perfect expansion. Warning... use SHIELDED Cat5 making your own unshielded cable can damage the unit.. Spend the money and get a good cable to connect to your console.
