Merging Technologies MADI128V3
UPC/EAN #615104398832
MPN #700527
$1699.00
Save 15%, MSRP $1999.00

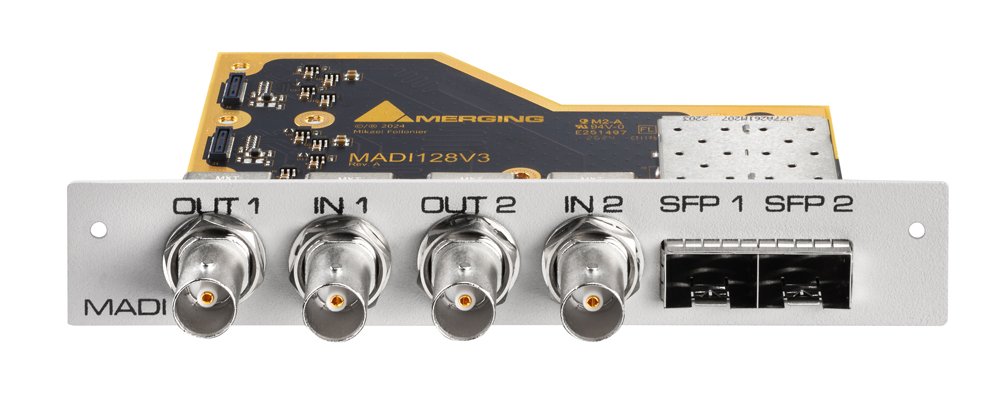

MADI Card 128 Channels with SFP cages for Hapi Mk III
The Merging MADI128V3 expansion card doubles the total MADI channel count to up to 128 inputs and 128 outputs @1FS for Hapi MkIII. The MADI128V3 is also equipped with a two slots Small Form-factor Pluggable (SFP) cages, suitable SFP modules can be fitted. SFP transceivers for optical multi-mode or single-mode for transmission or mini BNC for coaxial transmission are not included.
Features

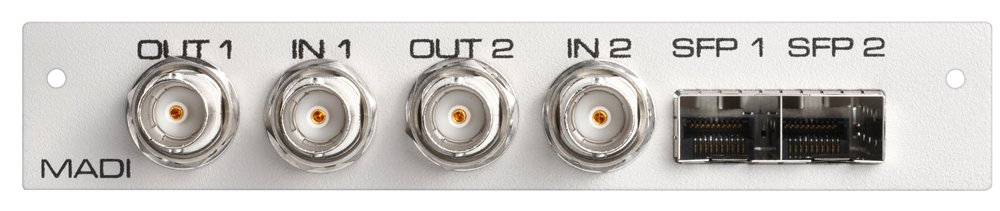

- Two pairs of MADI Coaxial inputs and outputs (4 X BNC connectors)
- 128 discrete channels of digital input and output (extended mode) at 1FS
- Up to 384 kHz sampling rate
- 24-bit resolution
- Fully compliant MADI (AES 10-1991)
- 2 x SFP Cages slots
Specifications
Coaxial:
IO Channels at 44.1/48kHz: 128
IO Channels at 88.2/96kHz: 64
IO Channels at 176.4/192kHz: 32
IO Channels at DXD/384kHz: 16
SFP:
IO Channels at 44.1/48kHz: 128
IO Channels at 88.2/96kHz: 64
IO Channels at 176.4/192kHz: 32
IO Channels at DXD/384kHz: 16
Recommended Cables for EMC Compliance:
Coaxial: 75?, typically RG7, RG59, RG179

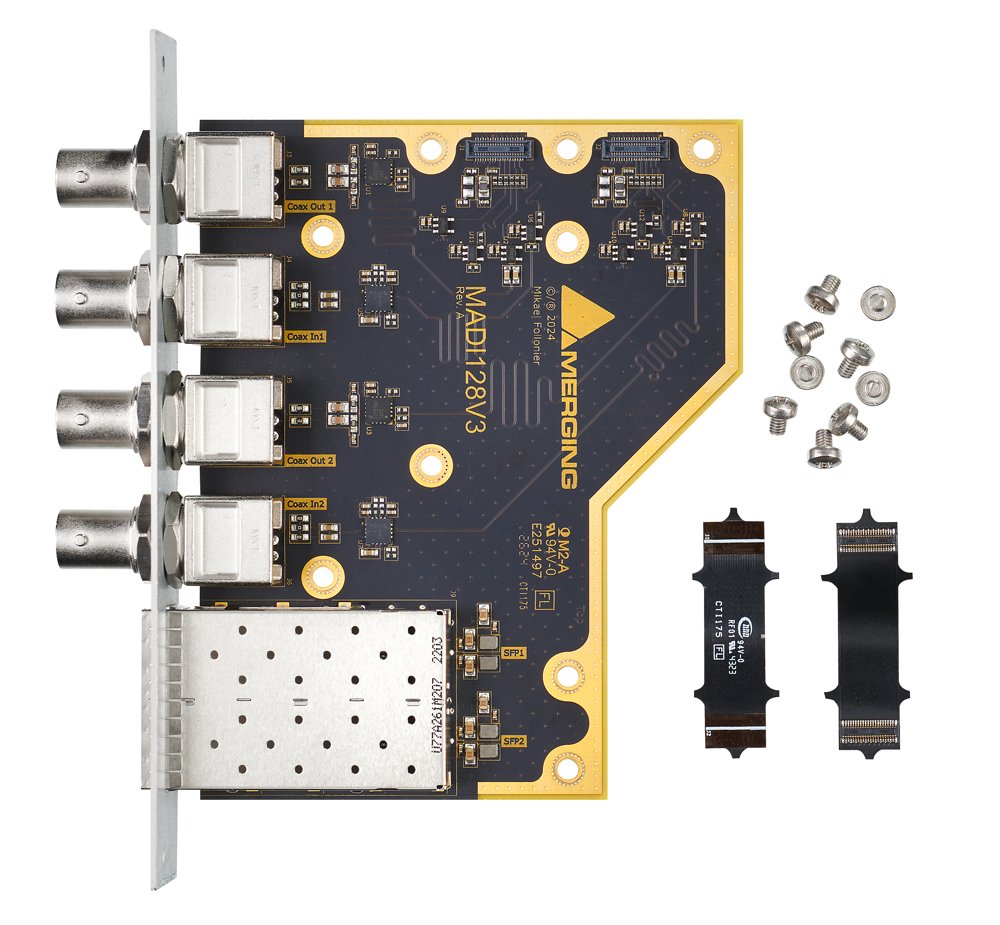

Included:
1x Hardware Card
1x MADI card Mounting Kit
