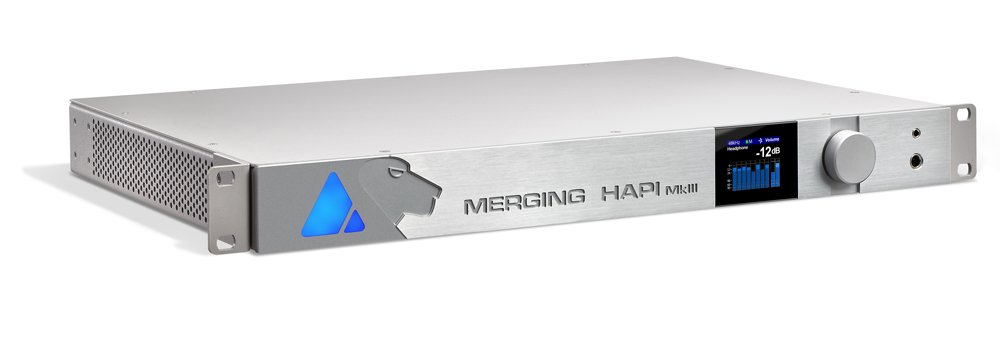

Merging Technologies Hapi Mk III

UPC/EAN #615104396906 MPN #700482

$3625.00

Save 14.7%, MSRP $4249.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

Hapi MKIII network converter, 8 channel AES I/O, 8/2 channel ADAT/SPDIF Optical I/O, RAVENNA/AES67 and Dante

Compact and customizable audio mainframe with support for multiple AoIP protocols

Modular design with two slots for Merging I/O and preamp extension cards, only 1U

Two network ports for redundancy or switch mode, RAVENNA/AES67 or Dante

Superior audio quality, resolutions up to 352.8 kHz (DXD), 384 kHz and DSD

Remote access via browser, extensive routing and connection capabilities

Ultra-Flexible Networked Audio Mainframe with Superior Sound Quality
Hapi Mk III is an exceptional audio centerpiece that effortlessly adapts to the most demanding scenarios. With its customizable I/O options, it offers unparalleled networked audio solutions, making it the perfect choice for broadcast, live events, and studios. This Swiss-made device is crafted to the highest standards and delivers audio quality that surpasses industry standards.

Features

Up to 152 input and 154 output channels, 64 streams

ADAT, S/PDIF, AES/EBU, Wordclock

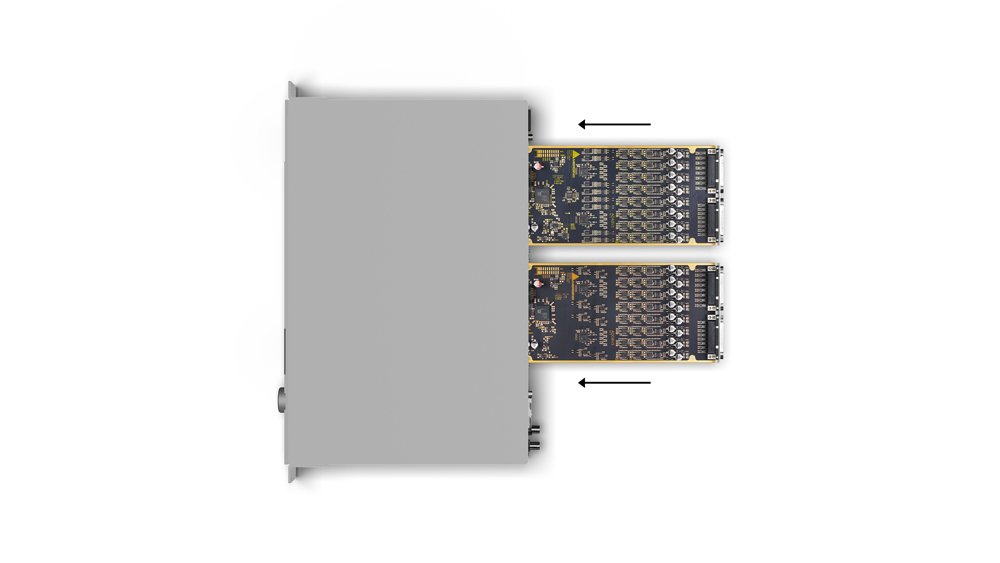

2 slots for optional I/O expansion

Near-zero latency from input to output (<1ms)

RAVENNA/AES67 with NMOS, ST2110 and ST2022-7 support

Dante Ready?, optional license available from Audinate

Standalone operation, remote control of preamps within Pro Tools, unlimited presets

Swiss design, made to extremely tight tolerances.

Specifications

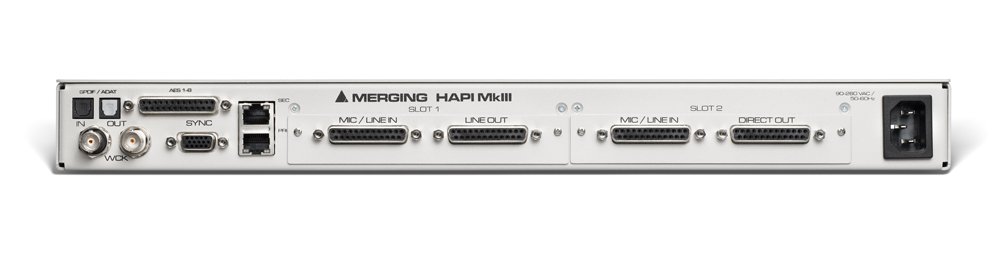

Digital I/O:
AES/EBU (D-Sub): 8
ADAT / SPDIF: 8 ADAT* or 2 SPDIF (Switchable) (*@1Fs 44.1/48 kHz)
RAVENNA/AES67 (RJ45): Over 400 bidirectional channels @1FS
Word Clock I/O: BNC

Synchronization I/O:
LTC: Balanced XLR (via Sync Cable)
MIDI: 5-pin DIN (via Sync Cable)
Video Reference: BNC (via Sync Cable)

Sample Rate Support:
44.1 " 384 kHz PCM
DXD and DSD64/128/256

User Interface:
Remote Control over LAN

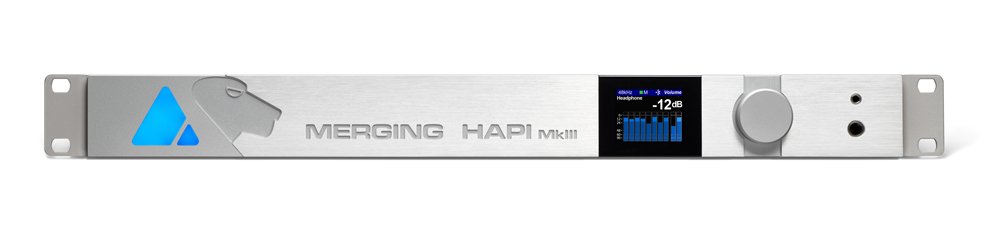

Direct Access on Unit with Rotary Control

Option Slots:
2 Option Slots for Standard or Premium Cards (Can be Mixed in Same Unit)

Dante Support:
License Required at Additional Cost
16 Inputs - 16 Outputs (at All Sampling Rates)
64 Inputs - 64 Outputs (at 1FS 44.1/48 kHz)

Included:
1x RJ45 Network Cable
1x Rack Ears pair kit
Power Cables
Important Safety and installation instructions
Quick Start Guide - Dante Flyer - Hardware
