MERGING TECHNOLOGIES  |  SKU: 17227

Anubis Pro SPS

Networked audio interface capable of sample rates up to 192 kHz with 2 x Mic/Line Inputs, 2 x Instrument/Line Inputs, 4 x Balanced Out, Ravenna/AES67 I/O and Seamless Protection Switching


$3,099.00 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

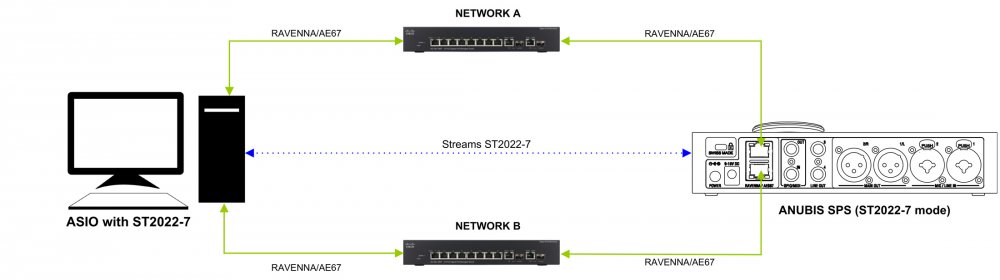

Anubis SPS Seamless Protection Switching, has been developed specifically to address the demands of broadcast facilities. SPS includes no compromise ST2022-7 class C and NMOS compliance with 2 separate Ethernet ports. Can also be configured in switch mode to alleviate the need for a network switch.

Merging Anubis has multiple workflows. A Monitor controller that also controls your network. A Music recording hub that allows you to network a whole band or orchestra.

EVOLVING MISSIONS. Houston, what's my mission today From the initial recording through to the final master, there are specific "missions" that require precision and control. If your mission of the day is to create a great mix, you need to be in complete control of your monitoring: reference monitors, nearfields, headphones, sources, surround mix, downmix, etc. Anubis gives you that "Mission Control" in a single, compact device that has unrivalled capabilities defined by the software application. But this is only one mission, MERGING+ANUBIS allows the user to choose the Mission Controller app that fits the task. Today, Anubis offers a first mission - ANUBIS+MONITOR.

NETWORK CONTROL. Anubis not only offers exceptional in-the-box features, it also allows for expanding its capabilities to any other RAVENNA/AES67 devices on the network. From stereo to 22.2 monitoring, from a four-piece rock band to a full symphony orchestra, Anubis puts you in control of any situation. Whether you are one meter from your equipment or kilometers away, take control directly from its superb touch screen, tablet or computer through the Anubis built-in web server.

MERGING QUALITY. This ultra-mobile and stylish unibody case offers astonishing A/D performance with a dynamic range of 139dB with equally impressive mic pres. Our pristine D/A technology ensures that you hear what your project deserves. Anubis come in two variants: Anubis Pro gives you exceptional performance up to 192kHz. If your mission is working in true high-resolution, Anubis Premium offers up to 384kHz and DXD plus DSD flavors up to 256. What else would you expect from Merging!

SUPERB SPECIFICATIONS. Merging has a reputation for getting it right when it comes to audio quality and we have years of experience. It would be surprising if Anubis was any less than the best we can achieve. Great sound is only part of the story, just look at the performance measurements.

Features

Scalable / Networkable: Instant network integration and expand your network IO at any time.

Studio / Mobile: Desktop compact size easy to carry on.

Direct Monitoring of any DAW on the network running on Windows, macOS and Linux

Direct RAVENNA/AES67 Sources monitoring: Easy selection of any RAVENNA or AES67 streams on the network from a list at the glimpse of the finger without the need of any dedicated routing tool

Direct decoding of Ambisonic Sources: Ambisonic sources from 1st to 7th order are automatically decoded to the active monitor speaker set

Mastering grade Preamp and Headphone Amp

Sampling rate up to 192kHz (Pro edition)

Sampling rate up to DXD / 384kHz (Premium edition)

DSD support up to DSD256 (Premium edition)

Cough Cut on every input

Plus of course all state of the art monitoring features (Bass management, Speaker alignment, Talkback, Down-mix, Crossfeed, etc...)

Specifications

GENERAL

Case Material: Premium machined and anodized aluminium

Dimensions: 200 x 128 x 40mm

Weight: 950 g

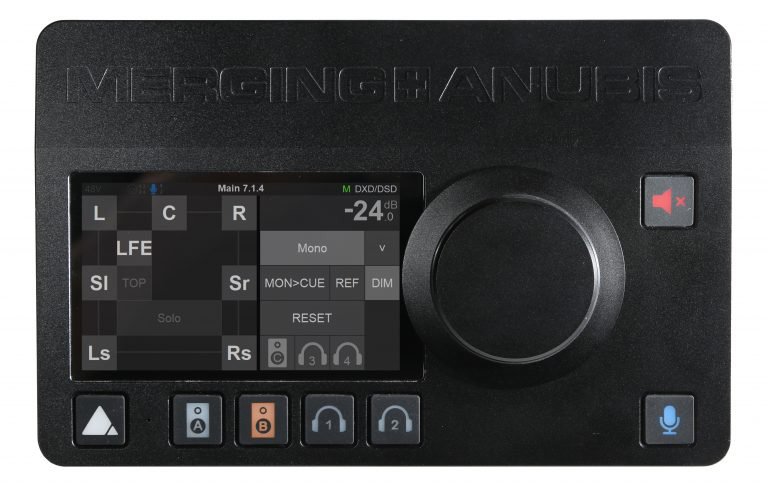

Top Panel Display: Capacitive Touch, TFT LCD 800 x 480 pixels resolution, 16:9 Aspect ratio

Rotary Encoder: Anodized aluminum + Black rubber O-ring

7 x Hardware + Soft buttons: RGB LEDs

Bottom Panel Mic stand thread: 3/8" 16BSW European thread incorporated

Note: Americas 5/8" 27UN adaptor not included

SOFTWARE SPECIFICATIONS

Windows Driver/OS: RAVENNA ASIO v12.0 (ASIO 2.2) for Win7-64bit / Win8.1-64bit / Win10-64bit

Mac Driver/OS: VAD Core Audio for MacOS 10.8.5 or higher (Intel)

Linux Driver/OS: ALSA Linux driver for RAVENNA/AES67

ANEMAN: Version 1.1.7 and above

MICROPHONE INPUTS 1-2 (COMBO)

Connector Type: Combo Locking Neutrik XLR / TRS

Dynamic Range Mic / Mic Lift: 137 dB / 128 dB (A-weighted, typ.)

Max Input level Mic Pad / Mic / Mic Lift: +24 dBu / +12 dBu / +0 dBu

Frequency response +0/-0.2dB @ fs = 48 kHz: 9 Hz - 22k Hz

Frequency response +0/-3dB @ fs = 96 kHz: 9 Hz - 46 kHz

Frequency response +0/-3dB @ fs = 192 kHz: 11 Hz - 94 kHz

THD+N Preamp + A/D 1kHz @ 0 dBFS: < -110 dB (0.0003%)

Interchannel Crosstalk @ 1kHz: < -130 dB

Equivalent Input Noise Mic / Mic Lift (150 Source): < -125 dBu / -128 dBu (A-weighted, typ.)

Common Mode Rejection Rate (20 Hz - 20 kHz): < -80 dB

Input Impedance (Differential): ~ 10k

Gain Range (Software controlled): 0 dB to +66 dB

Gain Step Coarse / Fine: 0.5 dB / 0.1 dB

Phantom Power (Software Switchable Per Channel): +48V

Phase Reverse (Software Switchable Per Channel): Yes

Low Cut filter (Software Switchable Per Channel): -12 dB/octave, 80 Hz

LINE INPUTS 1-2 (COMBO)

Connector Type: Combo Locking Neutrik XLR / TRS

Dynamic Range, ref +24 dBu: 139 dB (A-weighted, typ.)

Max Line Input Level: +24 dBu

Input Impedance (Differential): ~ 10k

THD+N Preamp + A/D 1kHz @ 0 dBFS: < - 104 dB (0.0006%)

Interchannel Crosstalk @ 1kHz: < -140 dB

Sensitivity Range for 0 dBFS (Software controlled): +24 dBu to -42 dBu

Common Mode Rejection Rate (20 Hz - 20 kHz): < -80 dB

INSTRUMENTS / HI-Z & LINE INPUTS 3-4

Connector Type: ¼" TRS Female

Dynamic Range, ref +18 dBu: 136 dB (A-weighted, typ.)

Max Input Level: +18 dBu

Input Impedance (Single ended / Differential): ~ 1M / ~ 2M

Gain Range (Software controlled): 0 dB to +66 dB

THD+N Preamp + A/D 1kHz @ 0 dBFS: < - 111 dB (0.0003%)

Interchannel Crosstalk @ 1kHz: < -150 dB

Sensitivity Range for 0 dBFS (software controlled): +18 dBu to -48 dBu

Common Mode Rejection Rate (20 Hz - 20 kHz): < -70 dB

MAIN OUTPUTS 1-2

Connector Type: Neutrik XLR Male

Dynamic Range: 123 dB (A-weighted, typ.)

Max output Level (Differential / Single ended): +24 dBu (12.2 Vrms) / +18 dBu (6.1 Vrms)

Frequency response +0/-0.2dB @ fs = 48 kHz: 6 Hz - 22 kHz

Frequency response +0/-3dB @ fs = 96 kHz: 2 Hz - 46 kHz

Frequency response +0/-3dB @ fs = 192 kHz: 2 Hz - 92 kHz

Output Impedance: < 70

THD+N 1 kHz @ 0 dBFS: < - 110 dB (0.0003%)

Output Level Matching: ±0.01 dB

Attenuation Range (Software controlled): - dB to 0 dB

Gain Step / Precision: 0.5 dB / ±0.05 dB

LINE OUTPUTS 3-4

Connector Type: ¼" TRS Female

Dynamic Range: 123 dB (A-weighted, typ.)

Max output Level (Differential / Single ended): +24 dBu (12.2 Vrms) / +18 dBu (6.1 Vrms)

Output Impedance: < 70

THD+N 1 kHz @ 0 dBFS: < - 110 dB (0.0003%)

Output Level Matching: ±0.01 dB

Attenuation Range (Software controlled): - dB to 0 dB

Gain Step / Precision: 0.5 dB / ±0.05 dB

HEADPHONES

Headphone Jacks: 2 Independent ¼" TRS Female Stereo 6.3 mm

Dynamic Range (A-weighted, typ.) High / Low: < -122 dB / - 117 dB

Max output Level High / Low: 17.1 dBu / 7.8 dBu

Frequency response +0/-0.2dB @ fs = 48 kHz: 6 Hz - 22 kHz

Frequency response +0/-3dB @ fs = 96 kHz: 2 Hz - 46 kHz

Frequency response +0/-3dB @ fs = 192 kHz: 2 Hz - 92 kHz

Output Impedance: < 0.035

THD+N 1 kHz @ 0 dBFS High / Low: < -108 dB (0.00039%) / -110 dB (0.0003%)

Attenuation Range (Software controlled): - dB to 0 dB

Gain Step / Precision: 0.5 dB / ±0.05 dB

A/D - D/A CONVERSION

Supported Sample Rates PRO: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz

Supported Sample Rates PREMIUM: 44.1 kHz up to 352.8 kHz (DXD), 384 kHz, DSD64, DSD128 & DSD256

Bit Depth Per Sample: 32

A/D Latency Sharp / Slow @ 44.1kHz to 96kHz: 19 / 7 samples

A/D Latency Sharp / Slow @ 174.6kHz to 192kHz: 15 / 8 samples

A/D Latency Sharp / Slow @ 352.8kHz to 384kHz: 7 samples

D/A Latency Sharp / Slow @ 44.1kHz to 384kHz: 35 / 9 samples

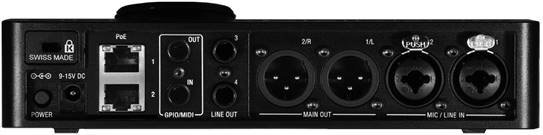

COMPLEMENTARY I/O

RAVENNA/AES67 (Gigabit Ethernet): Locking EtherCON compatible with standard RJ45 connectors

Built-in Talkback microphone: Mono omnidirectional condenser capsule

GPI/MIDI Input: ¼" TRS Female

GPO/MIDI Output: ¼" TRS Female

POWER

Power Supply Voltage (DC): 9V to 15V DC

Power Supply Connector Type: Barrel jack, int. 2.5mm/out. 5.5mm, with locking function

Power Consumption (Max): < 15W

PoE (Power Over Ethernet): IEEE 802.3af class 0 Power-over-Ethernet standard
