Merging Technologies ADA8V3S
UPC/EAN #615104398818
MPN #700525
$3250.00
Save 14.5%, MSRP $3799.00

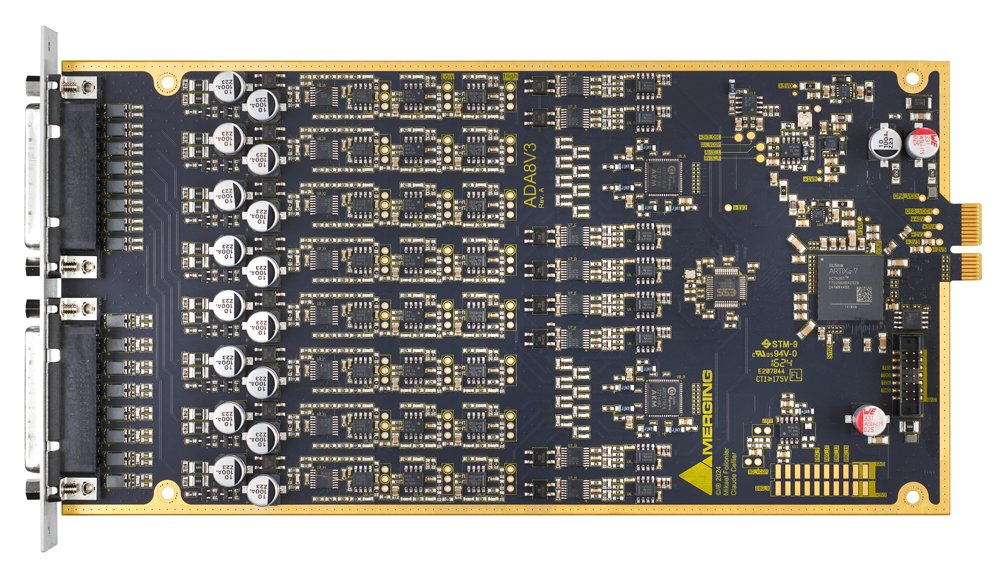

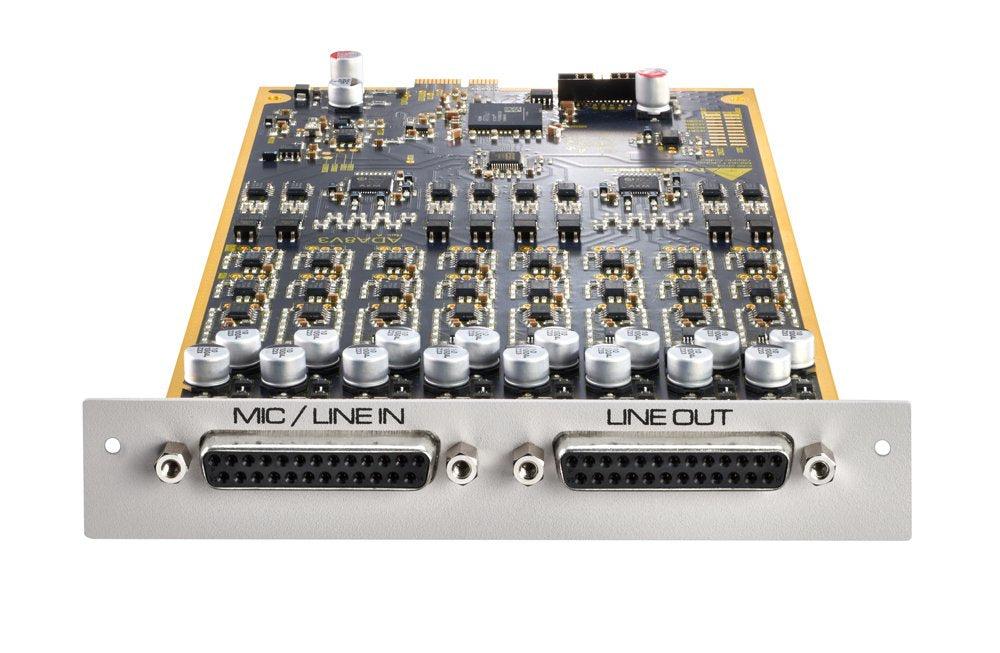

8 Channel Mic/Line A/D and D/A Card for Hapi Mk III
The ADA8V3S is a complex input and output card for the Merging audio mainframe Hapi Mk III. With eight inputs and eight outputs, it offers two-way audio conversion: analog to digital and digital to analog.
These remote controlled Mic/Line Input and Output cards feature 3rd generation Dual Gain topology, inspired by the exceptional Anubis preamps, for highest audio quality without compromise.
With two ADA8V3S 8-channel Mic/Line In and Line Out Cards you can configure Hapi Mk III for up to 16 analog I/O channels.
The ADA8V3S supports sample rates of up to 192 kHz.
Features
- 8 exceptionally transparent, Swiss designed preamplifiers plus 8 outputs
- Dynamic range of 139 dB (A-weighted, typ.) on the line inputs
- Preamps offer up to 78 dB of gain (with Boost)
- Full remote access for all parameter changes
- Dynamic range of 124 dB (A-weighted, typ.) on the line outputs
- Phantom power/polarity invert/low cut/impedance switchable per channel
- Switch to line level on a per channel basis via display or remotely via browser
- Auto-mute circuitry for "no-pop" power cycling
- Digitally controlled output trims for line-up procedures

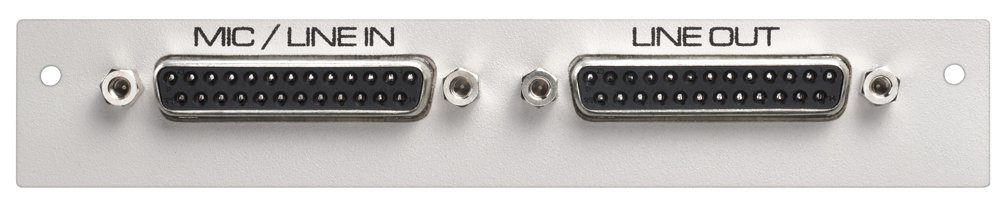

- 2x 25-pin Sub D connector
- Sample rates up to 192 kHz"
Specifications
Mic Pre-Amp + ADC Section:
Mic Pre Max Input (Mic+Pad / Mic / Mic Boost): +24 dBu / +12 dBu / +0 dBu
Input Impedance (Differential, Software Switchable Per Channel): 3 k? / 10.4 k?
Frequency Response (+0/-0.3dB @ fs = 48 kHz): 9 Hz " 22 kHz
Frequency Response (+0/-0.3dB @ fs = 96 kHz): 9 Hz " 46 kHz
Frequency Response (+0/-0.3dB @ fs = 192 kHz): 11 Hz " 94 kHz
Dynamic Range (A-weighted, typ.), ref +12 dBu: 137 dB
Dynamic Range Mic Boost (A-weighted, typ.), ref 0 dBu: 128 dB
Gain Range (software controlled): 0 dB to +66 dB
THD+N Pre + A/D (20 Hz - 20 kHz) @ -2 dBFS: < -111 dB (0.00028 %)
Interchannel Crosstalk @ 1kHz: < -130 dB
EIN @ > 40 dB Gain (150? Source Impedance, A-weighted): < -127 dBu
Common Mode Rejection Rate (20 Hz " 20 kHz): > 75 dB
Phantom Power (Software Switchable Per Channel): +48V
Polarity Invert (Software Switchable Per Channel): Yes
Low Cut Filter (Software Switchable Per Channel): -12 dB/octave, 80 Hz
Line Input:
Max Line Input for 0 dBFS: +24 dBu
Input Impedance (Differential): 10.4 k?
Dynamic Range (A-weighted, typ), ref +24 dBu: 139 dB
THD+N Line + A/D (20 Hz - 20 kHz) @ -2 dBFS: < -111 dB (0.00028 %)
Interchannel Crosstalk @ 1kHz, typ: < -135 dB
Sensitivity Range for 0 dBFS (software controlled): -42 dBu to +24 dBu
Gain Step: 0.5 dB
Common Mode Rejection Rate (20 Hz " 20 kHz): > 75 dB
Connector Pinout: DB-25 / AES59 (Tascam Ana.)
Line Output Section:
Max Output Level (software switchable for 0 dBFS): +24 dBu / +18 dBu +0/-0.5 dB
Frequency Response (+0/-0.3dB @ fs = 48 kHz): 0 Hz " 22 kHz
Frequency Response (+0/-3dB @ fs = 96 kHz): 0 Hz " 46 kHz
Frequency Response (+0/-3dB @ fs = 192 kHz): 0 Hz " 92 kHz
Output Impedance (Differential): < 80 ?
Dynamic Range (A-weighted, typ.): 122 dB / 124 dB
THD+N (1 kHz) @ 0 dBFS: < -117 dB (0.00014 %)
Interchannel Crosstalk @ 1kHz: < -139 dB
Connector Pinout: DB-25 / AES59 (Tascam Ana.)
Latencies:
Input Latency at 44.1/48kHz: 8 samples
Input Latency at 88.2/96kHz: 8 samples
Input Latency at 176.4/192kHz: 8 samples
Output Latency at 44.1/48kHz: 9* samples
Output Latency at 88.2/96kHz: 9* samples
Output Latency at 176.4/192kHz: 9* samples
Filter Setting:
Slow Roll Off Filter Option: 9 Samples
Sharp Roll Off Filter Option: 38 Samples
Includes:
1x Hardware Card
Card test measurements
