Manley Labs Variable MU with MS & T-Bar Modification Options
MPN #MSLCHPMSTBAR
Dual-channel Tube Limiter/Compressor with Stereo Link and True Variable Gain with MS & T-Bar Modification Options
The MANLEY VARIABLE MU LIMITER COMPRESSOR has been our best selling product for many years. It is one of the very few compressors that has become a real standard in Mastering studios and contributed to most hit records over the last decade and probably the next. "Mu" is tube-speak for gain, and Variable Mu is our registered trademark for this limiter compressor. It works by using the "remote cut-off" or re-biasing of a vacuum tube to achieve compression. The precious vintage Fairchild 670 also uses this technique and is one of few all-tube compressor to do so, that we know of. Even the side-chain has glowing rectifier bottles. How's it work The unique 5670 dual triode is at the center of the peak-reducing and compression action constantly being re-biased by the vacuum tube rectified side-chain control voltages which cause this tube to smoothly change its gain. Just like that.
The COMPRESS mode is soft-knee 1.5 to 1 ratio while the sharper knee LIMIT mode starts at 4 to 1 and moves to a more dramatic ratio of 20 to 1 when limiting over 12dB. Interestingly, the knee actually softens as more limiting is used. Distortion can be creatively used by turning up the Input and turning down the Output while using very little or no compression. See the gain reduction curves here!
You might notice that the Variable Mu Limiter Compressor has a ganged input control, but do not jump to conclusions that it is mono-unfriendly. Track away! There are separate threshold and output controls to make compensations with plus you can always adjust your individual source levels elsewhere, right The advantage of the stereo input control becomes dramatically clear when you switch to LINK mode, and that's what our Variable Mu Limiter Compressor does better than anything else: final mix, 2-track, or mastering limiting and compression. Like one reviewer put it: "It's like pouring a bowl of sweet cream over the mix." Mmmmmm. Yummy. Give your music a big hug.
MID/SIDE MODIFICATION (a.k.a. Vertical/Lateral, or Sum/Difference)
This modification opens the door to stereo encoding and decoding as well as exciting image enhancement processing capabilities. For instance, setting to compress only the in-phase information allows the augmentation of the stereo image as the out-of-phase content is left untouched. Or, conversely, if you need a "more-mono" mix for broadcast, or vinyl-cutting for instance, you can set it to kill off more of the out-of-phase info which leaves more in-phase material in the final result. Read more about the MS Mod in the Owner's Manual.
In order to add both M-S and the HP SC mods, we move the power switch to the rear panel and install both channels' HP SC switch to the center hole where the power switch was. The M-S switches then flank this switch.
THE T-BAR MODIFICATION
Backstory: The newer Variable Mu units use 5670 tubes instead of the 6386. By now the availability of the original USA GE 6386 is poor; we don't have any left at all, and what we do have are not usable due to noise, microphonics, bad side-to-side match, etc.
So does the 5670 sound different Well, up to about 6db of limiting it's about the same. After that point, the 5670 version tends to sound more "squashed" than the original 6386 version. Some like it better, some don't - depends on what you're trying to do.

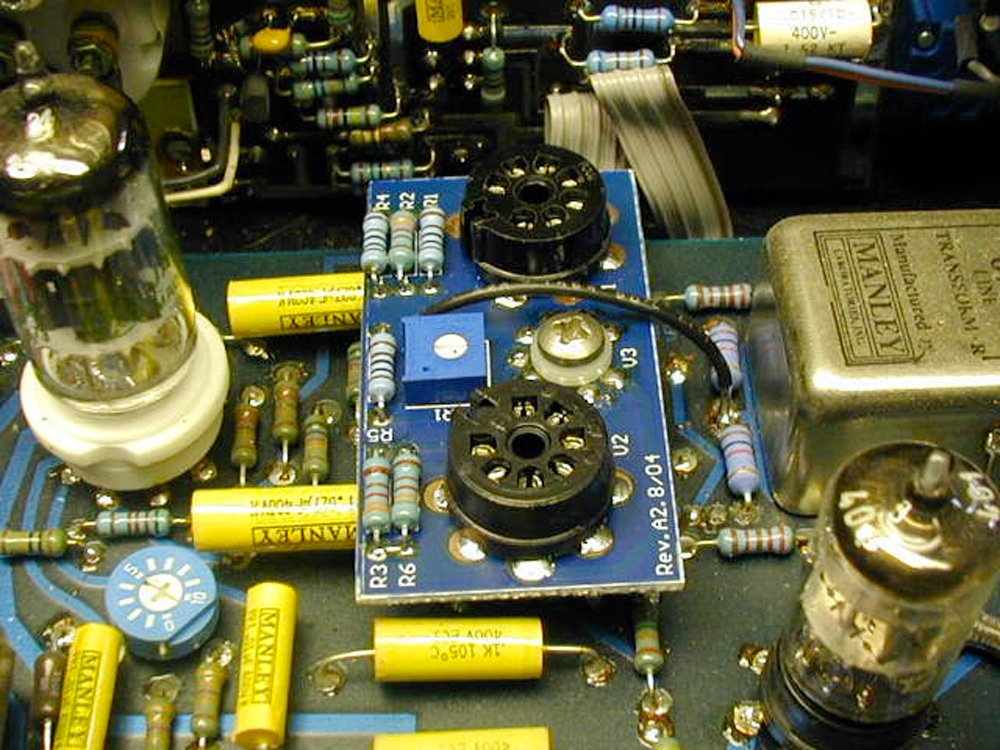

To solve all these problems, Paul came up with a really good solution: the T-Bar Mod. This uses a pair of 6BA6 pentodes wired as single triodes to replace each dual triode 5670 (or 6386). The 6BA6 T-Bar Mod is the preferred system to use in the Manley Variable Mu for reasons of ability to perfectly match each phase-halve section and each stereo set, ability to select for lo-noise and lo-microphonic sets for a low cost, and because the action of the 6BA6's so closely resemble the smooth 6386 limiting curves.

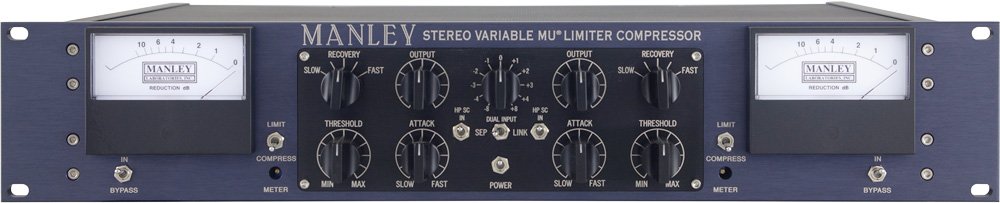

You won't see any differences on the front panel aside from different meter scaling, whose left-most number is 12dB of reduction instead of 10dB.
Specifications
RECOVERY 5 steps: 0.2s, 0.4s, 0.6s, 4sec., 8sec.Variable ATTACK: 25msec-70msecContinuously variable THRESHOLDLIMIT (4:1 to 20:1) or COMPRESS (1.5 to 1)HP SC: High Pass Side Chain Filter -3dB @ 100HzLarge ILLUMINATED Sifam METERS (older units before serial number MSLC61642 shipped before 12/2003 use: 26V 1.2W FESTOON LAMPS; Manley's Part Number: VAR016B) Order spare bulbs using our parts order form. (newest units after serial number MSLC61642 shipped after 12/2003 use white LED lighting)Maximum gain: 35dBMax. output: +30dBu (26Vrms) 26dB Headroom<0.1% THD @ 1KHz Noise floor: -85dB typicalPower Consumption (120/240VAC): 80 wattsDimensions: 19" x 3 1/2" x 10" (chassis occupies 2u) Power transformer protrudes 3.5" out the back of the chassis.Shipping Weight: 23 lbs.
