MANLEY LABS  |  SKU: 12223

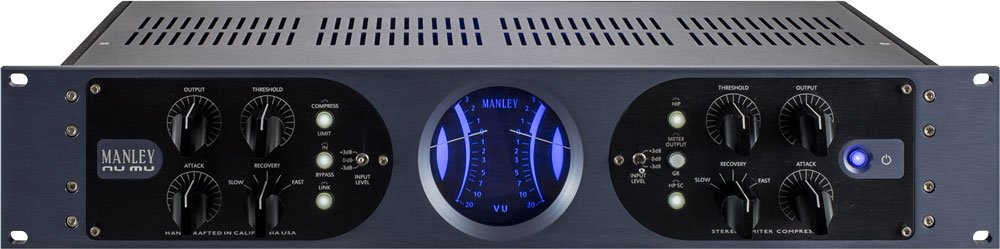

Nu Mu

Dual Compressors

Stereo Tube/Solid-state Limiter Compressor with Stereo Link

$4,420.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Manley Nu Mu Stereo Limiter Compressor uses the special T-Bar mod tube front end of the legendary Variable Mu with same super smooth side chain and timing characteristics followed by a high voltage discrete and FET solid-state amplifying and output stage for a faster and punchier audio path. It is like a "clean" version of the Variable Mu, especially suited for modern digital and electronic music where you don't necessarily need to color or mask the sound like we did in the early days of digital.

Featuring Manley's new HIP function, the Manley Nu Mu finesses dynamic control to bring up lower level details without knocking the life out of exciting transients. Smartly engineered to build efficiently and esthetically designed to elicit ravishing compliments from your clients, both visually and ergonomically, the Manley Nu Mu breaks new ground in performance and value, all proudly hand-built in California, of course!

Features

Manley IRON input transformers

4 x hand-matched 6BA6 vacuum tubes

Balanced XLR inputs & outputs

Manley HIP function raises soft dynamics without squashing louder passages

High Voltage Switched Mode Power Supply custom designed for our vacuum tube audio circuits

Specifications

Manley IRON input transformers

4 x hand-matched 6BA6 vacuum tubes

Transformer-Balanced XLR inputs

Manley HIP function raises soft dynamics without squashing louder passages

MANLEY POWER High Voltage Switched Mode Power Supply custom designed for our vacuum tube audio circuits

INPUT Level Preset 3-way switches -3dB, 0, +3dB

Continuously variable OUTPUT level controls

Unity Gain set INPUT to "0" and OUTPUT control to 11 o'clock. (Input source Z= 150 Ohms, Output load Z= 100 kOhms)

Maximum input level: (1 kHz Sine, <0.3% THD+N) -3 = +25 dBu, 0 = +21 dBu, +3 = +18 dBu

Maximum GAIN: 13dB

GAIN makeup: 10dB (gain above unity)

Output Headroom: 23dB (referenced to +4dBu)

Variable ATTACK control: 13msec - 130msec

RECOVERY switch 5 steps: 0.1s, 0.16s, 0.32s, 0.64s, 1.7sec.

Continuously variable THRESHOLD controls

Hardwired Relay Bypass Switch

Ratio Mode switches between LIMIT (1.5:1 to 12:1) or COMPRESS (1.2:1 to 3:1)

HP SC: High Pass Side Chain Filter -3dB @ 100Hz @ 6dB per Octave

Stereo Link establishes Left-Master dynamic control for THRESHOLD, ATTACK, and RECOVERY controls

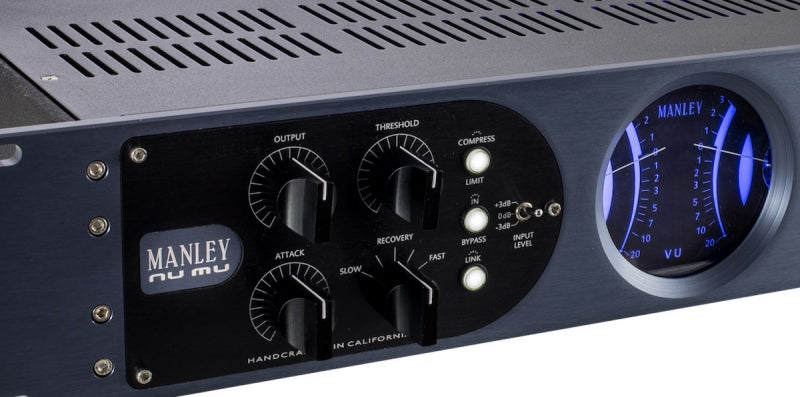

Beautiful illuminated stereo VU meters read Gain Reduction or Output Level

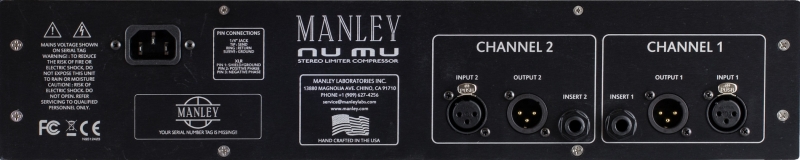

Sidechain INSERT per channel via 1/4" TRS jack TIP=SEND, RING=Return, SLEEVE=Ground

Maximum Output: +27dBu (18Vrms) into 100K Ohm load; +24.5dBu (13Vrms) into 600 Ohm load. (1Khz Sine, < 0.3% THD+N, BW 20Hz - 20kHz).

Frequency Response: - 0.8dB @ 20Hz, -0.5dB @ 50kHz

Total Harmonic Distortion: <0.05% THD+N (1kHz Sine, +4dBu, BW: 20Hz - 22kHz)

Noise floor: -85dB typical (BW: 20Hz - 22kHz)

Dynamic Range: 112dB

Signal to Noise Ratio: 89dB (referenced to +4dBu)

Common-Mode Rejection Ratio (CMRR): 74dB (BW: 20Hz - 22kHz, +4dBu, 1kHz Sine)

Output Impedance: 100 Ohms

Input Impedance: -3dB= 1 kOhms, 0dB= 2.5 kOhms, +3dB= 4.5 kOhms

AUTOMUTE warmup delay: 30 Seconds

Power consumption: 35 Watts

Standby Power Consumption: Watts

Operating mains voltage: 90 to 254 VAC (internal universal supply)

Mains Voltage Frequency: 50-60Hz

Dimensions: 19" x 3 1/2" x 7" (occupies 2u)

Unit Weight: 8.5 lbs.

Shipping weight: 11.5 lbs.
