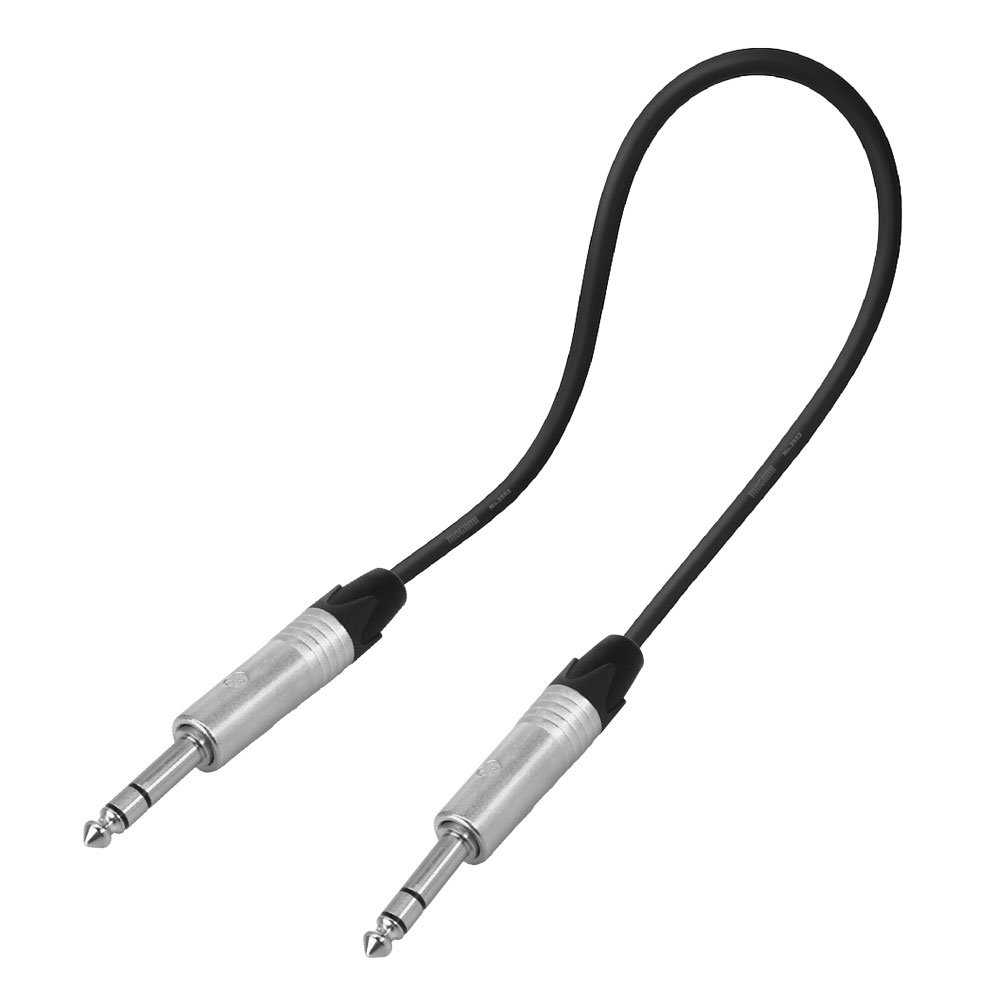

MAMMOTH CABLES  |  SKU: 24906

MM2552 TRS-TRS 50'

1/4 TRS (6.3mm) Cables

Made with Mogami General Purpose W2552 Mic Cable and Neutrik NP3X (14" TRS / 14" TRS) Connectors. Length: 50 feet

$106.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Mogami W2552 Mic Cable A specially developed high performance yet economical series of low impedance balanced microphone cables. These cables are small in size and special rubber - like PVC jacket is extremely flexible and exhibits good resistance to rough handling and abrasion. High grade insulation material is designed to minimize heat shrinkage during soldering which allows easy termination to XLR type connectors. Available in both overall and individually sheilded types.

Here is an extremely limp and flexible cable for all types of audio/visual and industrial audio applications. XLPE insulation and a strong rubber - like outer jacket makes this cable ideal where a durable yet economical cable is needed.

Neutrik NP3X The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features

Delivers clear, balanced audio for professional signal transmission.

Built with ultra-flexible cable that handles easily in tight or mobile setups.

Durable rubber-like jacket resists abrasion and rough use.

Heat-resistant insulation allows clean and easy soldering for long-lasting connections.

Fitted with slim, heavy-duty Neutrik TRS connectors for reliable performance.

Strain relief design protects against cable wear and bending stress.

Ideal for studio gear, patch bays, instruments, and audio interfaces.

Specifications

General Specifications

Product Name: Mammoth Cables MM2552 TRS - TRS 1 foot

Cable Type: Low impedance balanced audio cable

Cable Length: 1 foot (approximately 30 centimeters)

Configuration: TRS to TRS (Tip-Ring-Sleeve)

Cable Construction (Mogami W2552)

Conductor: Two conductors of 0.08 square millimeters (28 American Wire Gauge), oxygen-free copper

Insulation: Cross-linked polyethylene (XLPE)

Shield: Spiral shield, 90 percent coverage, oxygen-free copper

Capacitance: 67 picofarads per meter between conductors

Outer Diameter: Approximately 4 millimeters

Jacket Material: Rubber-like polyvinyl chloride (PVC), flexible and abrasion-resistant

Heat Resistance: Low shrinkage insulation for easy soldering

Flexibility: Extremely limp and highly flexible for tight routing and portable use

Connector Specifications (Neutrik NP3X)

Connector Type: 3-pole 6.35 millimeters (1/4 inch) A-gauge TRS phone plug

Shell Diameter: 14.5 millimeters, suitable for 15.88 millimeter jack pitch

Contact Material: Precisely machined one-piece tip contact, no rivets

Strain Relief: Neutrik chuck type strain relief system

Cable Entry Range: 4 millimeters to 7 millimeters

Housing: Die-cast slimline metal shell

Application: Professional audio interconnects including mixers, interfaces, and patchbays

Assembly Specifications:

Termination Method: Hand-soldered

Heat Shrink Tubing: Used for insulation stability and strain relief

Compatibility: Analog audio equipment, mixers, preamps, interfaces, and patch bays

Shield Connection: Shield typically connected to XLR pin one and TRS sleeve
