SRT215

The ultimate workhorse loudspeaker

Industry-leading 1600W Class-D amplifier with transparent system limiting and protection

Superior sound with Advanced Impulse™ DSP tuning

Custom transducers and SymX™ Horn for unmatched clarity and accuracy

SRT Mix Control™ built-in 4-channel digital mixer with Bluetooth

Complete wireless control via the SRT Connect™ app

Wirelessly link 2 SRT speakers together for music streaming applications plus control

Dual-angle pole mount plus angled design for use as a floor monitor

Acoustic Performance

Frequency Response:"10 dB: 42 Hz " 20 kHz, "3 dB: 46 Hz " 20 kHz

Maximum SPL Peak: 133 dB

Horizontal Coverage: 90

Vertical Coverage: 60

Monitor Angle: 45

Transducers

Low Frequency Driver: 15 in / 381 mm with ferrite

High Frequency Driver: 1.4 in / 36 mm polymer compression driver

Power Amplifiers

System Power Amplification: 1600 watts peak

Low Frequency Amplifier Power: 1400 watts peak

High Frequency Amplifier Power: 200 watts peak

THD: <1%

Cooling: Convection

Design: Class D

System Processing

Voicing: 5 speaker modes

Subwoofer HPF: Off, SR18S, DRM18S, Var

Input EQ: 3-band

Delay: 0 " 100 ms

Equalization

Low: ±12 dB @ 80 Hz

Mid: ±12 dB @ 2.5 kHz

High: ±12 dB @ 5 kHz

HPF: 80 Hz " 150 Hz (Variable)

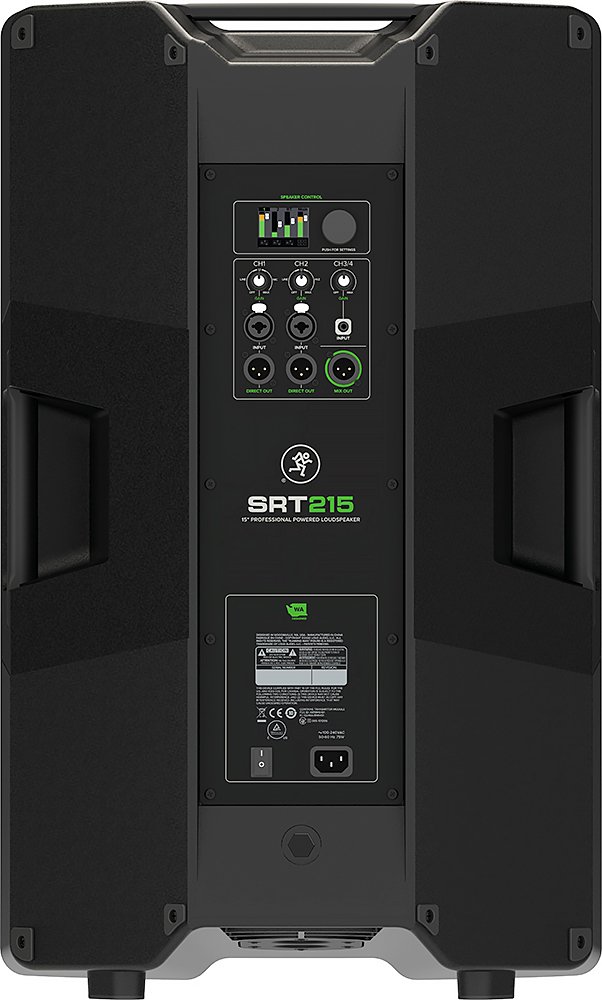

Input/Output

Input Type: 2x Female XLR Balanced, 1/4" Balanced, 1/8" Stereo

Mic-Line Impedance: 20 kΩ balanced

1/4" TS, Wide-Z™ Impedance: 100 kΩ balanced

Direct Out and Mix Out: Male XLR Balanced

Mix Out Impedance: 300 Ω balanced

Main Control: Rotating Knob

Bluetooth Information

Protocol: 4.2

Function: Audio Streaming and User Interface Control

Class: Class 1

Electronic Crossover

Type: 24 dB / octave

Frequency: 2.0 kHz

Line Input Power

Detachable Line Cord: ~100 " 240 VAC, 50 " 60 Hz, 110W

AC Connector: 3-Pin IEC 250 VAC, 10 A male

Power Supply Type: Switchmode

Safety Features

Input Protection: Peak and RMS limiting, power supply and amplifier thermal protection

Display LEDs: Defeatable front power, speaker control

Status Info: Input and output levels, voicing mode, sub HPF, EQ, and delay settings

Construction Features

Basic Design: Asymmetrical

Enclosure Material: Black Polypropylene

Enclosure Finish: Light Black Texture

Grille Material: 16-18 gauge perforated steel with nylon net backing

Grille Finish: Powder-coated black

Handles: Two on each side and one partial on top

Display LEDs:

Front: Power / Signal

Rear: Speaker Control

Operating Temperature: 0 " 40 C (32 " 104 F)

Physical Properties

Height: 28.8 in / 732 mm

Width: 17.6 in / 447 mm

Depth: 15.4 in / 391 mm

Weight: 37.1 lb / 16.8 kg
