Description

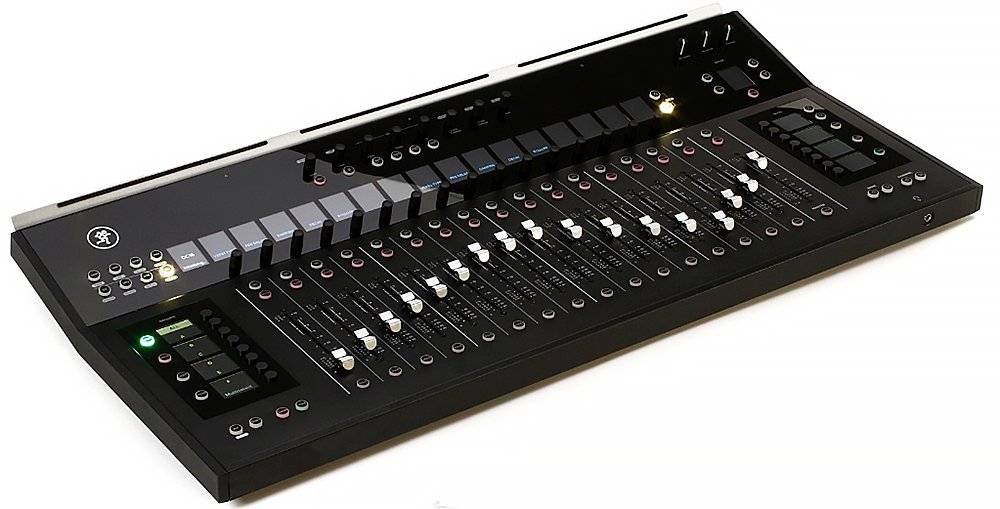

The Mackie DC16 is a dedicated Dante-connected control surface for the AXIS system. The D16 provides visual feedback via large, full-colour channel displays, and offers the ability to dock up to three iPads on the SmartBridge - with smart sensing that knows when an iPad is in place.

The Mackie AXIS Digital Mixing System delivers an ultra-fast workflow through unmatched visual feedback and customization for professional production and system integration. With full Dante interoperability, the modular AXIS system combines the power of the 32-channel DL32R digital mixer and innovative DC16 control surface to deliver a forward-thinking, modular digital mixing solution with more features per price than any other digital mixer available.

Features

Dedicated Dante-connected control surface for the AXIS system

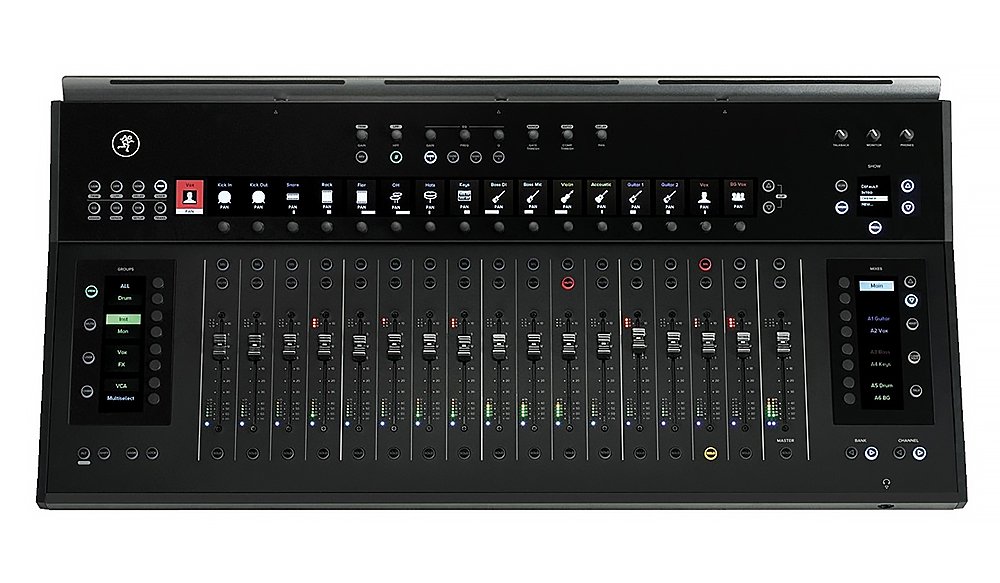

17 full channel strips with Alps 100mm motorized touch-sensitive faders and per channel encoders
Dedicated selected channel section with controls for fast access to important parameters
Mix selector and view groups deliver innovative navigation without preset banks
Ergonomic layout with generous working space for easy access to all controls

Unmatched Visual Feedback


Large, full-colour backlit channel ID screens with class-leading readability
Flexible channel labeling including name, colour and icon
6-segment LED channel meters and 3-segement GR meters per channel
Dedicated show display with snapshot control

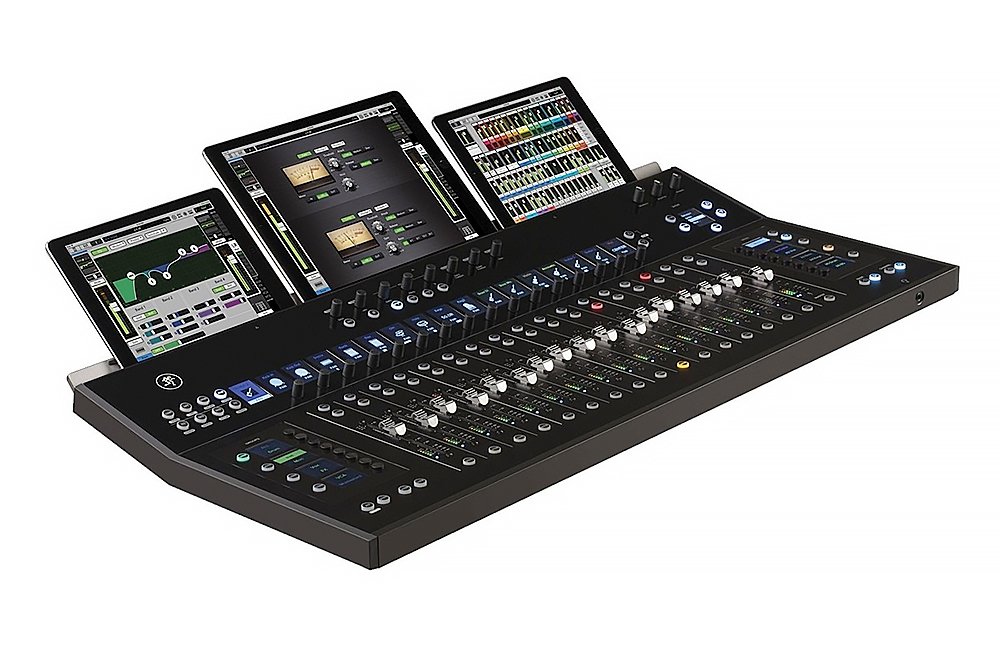

Surface to Wireless Mixing via SmartBridge


Automatically senses presence of up to three iPad devices and changes Master Fader operation to deliver tight integration and customized functionality
Central iPad follows dedicated hardware controls for selected channel
Unique history and fixed display iPad modes provide flexible workflow options
Control up to four channels simultaneously from control surface and iPad devices
Grab any iPad and go for instant wireless mixing from anywhere in the venue
Wired recording and playback to central iPad
Built-in charging for all three iPad devices
Dedicated Wi-Fi router connection point

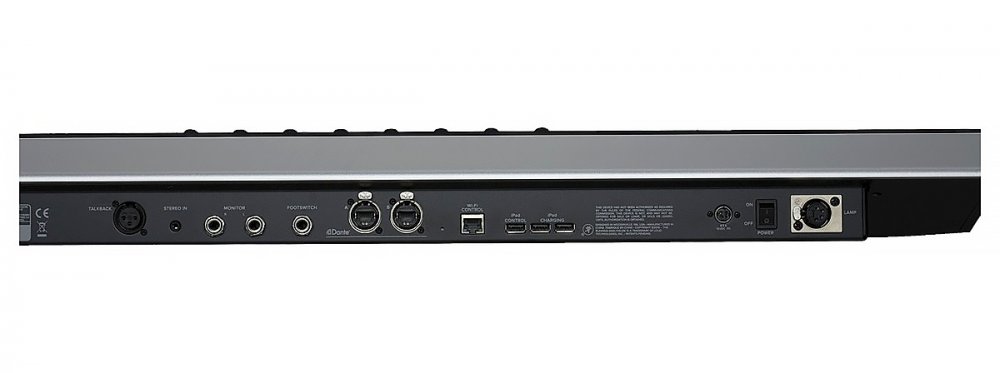

Additional I/O for your AXIS system


4x4 Dante via dual locking etherCON
XLR talkback input
1/8" stereo input
Control room/phones outputs

Specifications

Dimensions (W x D x H): 935 x 447 x 84 mm
Weight: 17 kg (37.5 lbs)
