LYNX STUDIO TECHNOLOGY  |  SKU: 23709

Mesa

Multi-Channel Converters

4 analog ins, 2 TRS outs, dual headphones, ADAT/S/PDIF, Word Clock, touchscreen UI, MicroSD recording, Thunderbolt 3, Mac/Win DAW support

$3,470.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

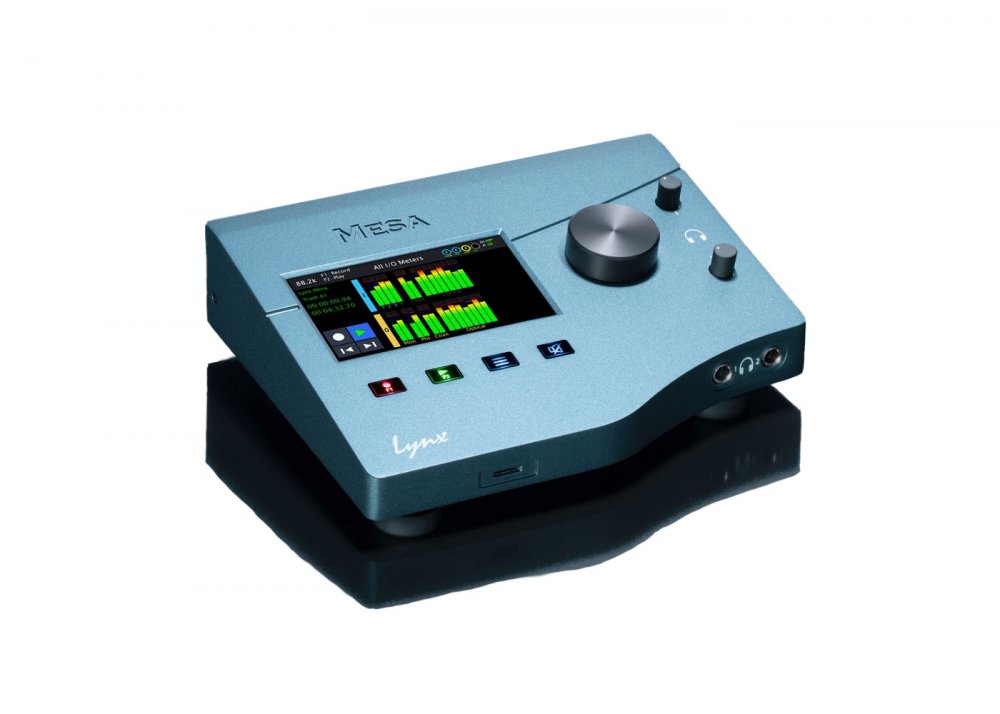

The Lynx Mesa is a premium desktop Thunderbolt 3 audio interface and standalone A/D-D/A converter designed for professionals who demand exceptional sound quality in a compact and portable form. Perfect for home studios, mobile recording rigs, or commercial production environments, Mesa offers four analog inputs (Mic/Line/DI selectable) and two balanced TRS outputs, along with dual headphone outputs featuring independent level controls. Whether you're capturing live performances, producing in the studio, or managing playback for events, Mesa ensures crystal-clear fidelity and versatile connectivity. A built-in MicroSD card slot expands its role, allowing Mesa to function as a primary or backup recording solution-ideal for field recording and redundancy.

At the heart of Mesa is a high-contrast capacitive touchscreen-identical to the interface found in the acclaimed Lynx Hilo 2-providing a seamless standalone user experience. For even greater control, users can access all functions via the included Mesa Control software. Mesa integrates effortlessly into any workflow with Thunderbolt 3 connectivity and compatibility with all major DAWs across Mac and Windows platforms, including Pro Tools, Logic Pro, Cubase, and Ableton Live. With professional-grade S/PDIF coaxial and optical (ADAT-capable) I/O, Word Clock in/out, and intuitive touch and tactile controls-including dedicated Menu/Meters and All Mute buttons-Lynx Mesa is a forward-thinking interface built for superior audio capture and effortless control in any setting.

Features

Compact desktop interface with premium audio conversion.

Four analog inputs and two balanced monitor outputs.

Dual headphone outputs with separate volume controls.

High-contrast touchscreen for easy standalone operation.

Includes Mesa Control software for computer-based access.

Built-in MicroSD card slot for primary or backup recording.

Delivers Aurora(n)-level audio quality and clarity.

Thunderbolt 3 connection ensures fast, stable performance.

Combo inputs accept mic, line, and instrument signals.

S/PDIF coaxial and optical I/O, plus 8-channel ADAT support.

Word Clock I/O for professional studio sync.

Works with all major DAWs on Mac and Windows.

Preset audio routing enables immediate plug-and-play use.

Hardware buttons for quick access to menus and mute functions.

Specifications

General Specifications

Product Type: Desktop Thunderbolt 3 audio interface and standalone A/D/A converter

Form Factor: Compact desktop design

Touchscreen: Hi-contrast capacitive touchscreen (same as Hilo 2)

Control Software: Mesa Control (included)

Standalone Operation: Yes

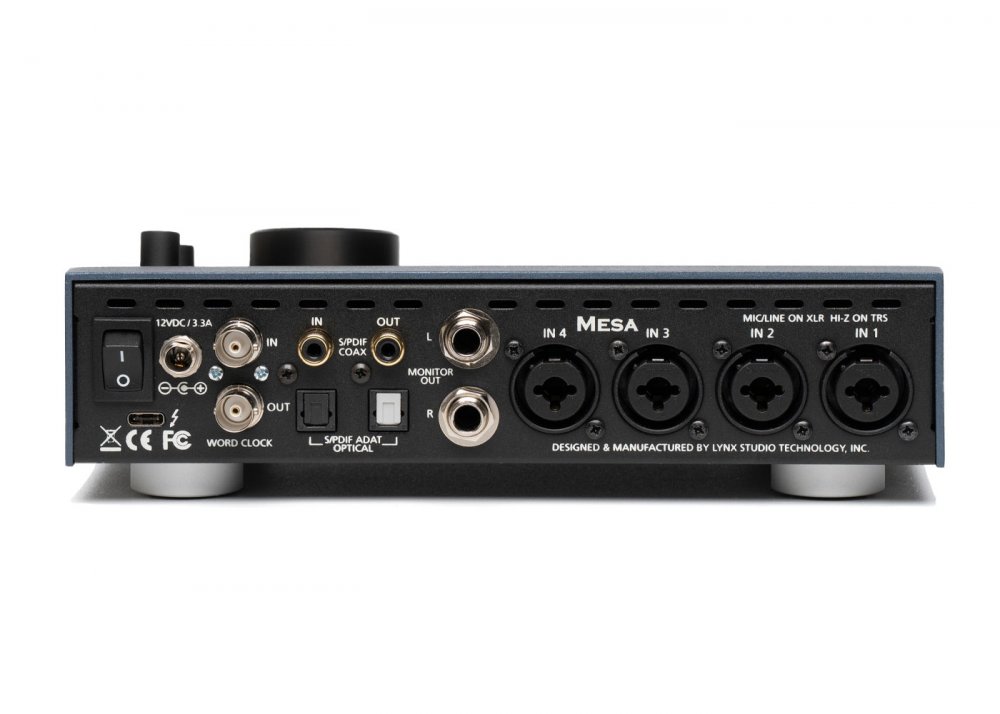

Analog Inputs/Outputs

Analog Inputs: 4 combo XLR/TRS inputs (Mic, Line, DI selectable per channel)

Analog Outputs: 2 x 1/4'' balanced TRS monitor outputs

Headphone Outputs: 2 x independent with individual level controls

Digital I/O

S/PDIF Coaxial: Input and Output

Optical Port: Supports S/PDIF (2-channel) and ADAT (8-channel)

Word Clock: Input and Output

Recording and Playback

Recording Media: MicroSD card slot (for primary or backup recording)

Playback Sources: MicroSD card or Thunderbolt 3 interface

Computer Interface

Connection: Thunderbolt 3

Compatibility: macOS and Windows

DAW Support: Pro Tools, Logic Pro, Ableton Live, FL Studio, Cubase, GarageBand, and others

User Interface and Controls

Preset Routing: Pre-configured audio routing setups for immediate use

Physical Controls: Dedicated Menu/Meters button, All Mute button
