Lynx Studio Technology LM-DIG
MPN #LM-DIG
$560.00
Save 2.3%, MSRP $573.00

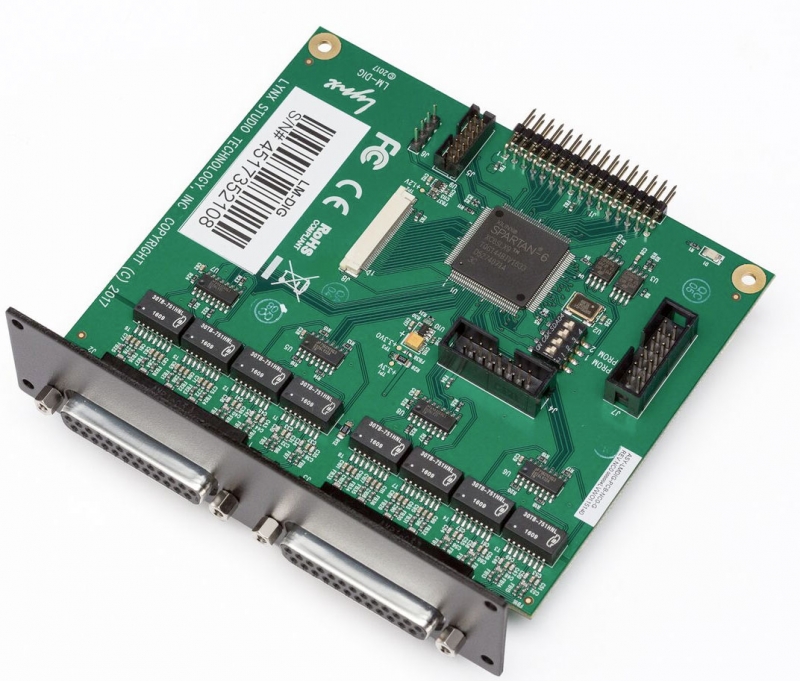

The LM-DIG is a 16 channel AES/EBU expansion module for the Aurora(n)
It integrates seamlessly with the mixing and routing engine on the Aurora(n) and allows the Aurora(n) to replace any current Aurora system that requires AES/EBU connectivity.
The LM-DIG provides 16 channels in and 16 channels out of 24-bit AES/EBU, with bit-perfect transmission at sample rates of up to 192kHz. AES/EBU is a world standard for digital interfacing, and the addition of the LM-DIG to the Aurora(n) means that studios and engineers can quickly and easily integrate its superior audio quality and precise conversion/routing tools with almost any professional-quality recording system, control surface, or other tools that use the AES/EBU standard.
More Expansion For larger applications that require even more channels and varieties of interfacing, the LM-DIG offers expansion ports that support daughterboard add-ons. Coming soon, an optional daughterboard will allow for expansion to an additional 16 channels of AES/EBU for a total of 32 channels. Also, support for 16 channels of ADAT digital I/O will be available via another optional daughterboard.
Features
16 input and 16 output channels on two 25-pin female D-subs, Yamaha digital I/O pinout24-bit AES/EBU (AES3) data formatBalanced, Transformer-coupled, 110 ohm, RF filtered, electrical interface44.1 kHz to 192 kHz sample rates supported
Specifications
The LM-DIG module can be installed into any existing Aurora(n)-8, -16 or -24 with an easy and free firmware update. Lynx is also making the LM-DIG available pre-installed in the Aurora(n). These models are:
Aurora(n) 8-DIG
Aurora(n) 16-DIG
Aurora(n) 24-DIG
