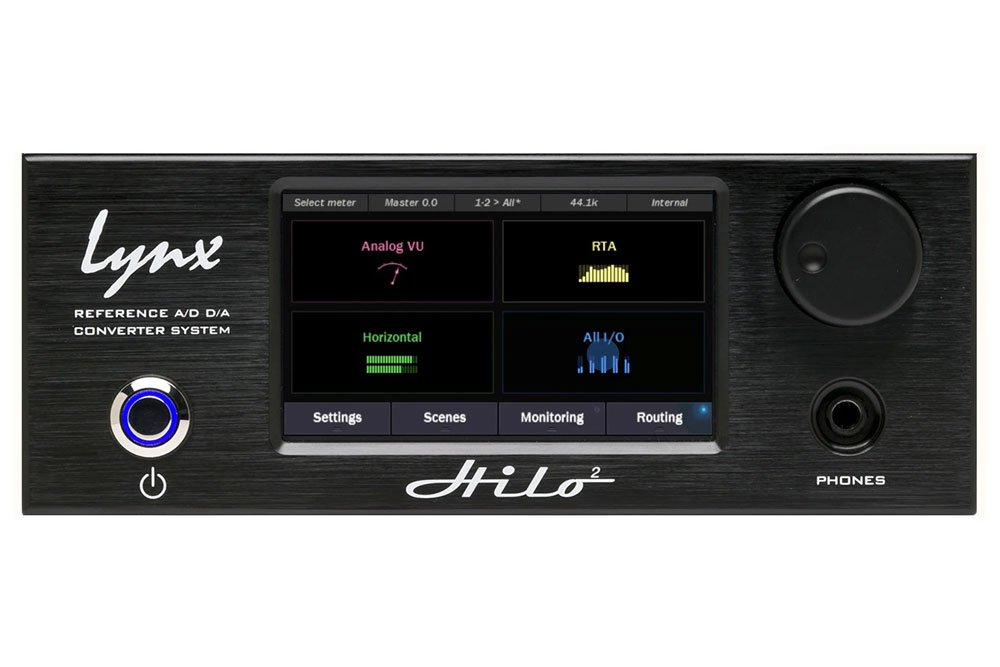

Lynx Studio Technology Hilo 2 w/ LT-TB3 - Black
MPN #LYN-HILO2-TB3
$5695.00
Save 13.5%, MSRP $6587.00
Reference A/D D/A Converter System Two-channel 24-bit / 192 kHz Analog I/O Headphone Amplifier, Flexible monitor controller
Hilo is for professionals who demand the purest audio quality. Engineered to be a true all-in-one device, Hilo offers class-leading AD/DA conversion, built-in metering and analysis, multiple ins and outs, hyper-flexible routing and monitoring control " all easily saved and recalled via touchscreen, whatever work you do.
Mastering with an analog chainMixing with multiple speakersLocation sound recordingVoice recording and overdubbingAudiophile listeningArchiving
ANALOG INPUTS
2 Balanced XLR connections with 8 trim level settings
ANALOG OUTPUTS
2 Balanced XLR connections with 8 trim level settings2 Balanced TRS connections Monitor Out Headphone TRS connection
DIGITAL INPUTS & OUTPUTS
AES/EBU: Transformer-coupled XLR connector S/PDIF via Coaxial or Optical connectorADAT via Optical Connector (8 channels at 48 kHz) Computer connectivity via LT-USB, LT-TB3or LT-DANTE
Features
Pristine, independently coupled 2 in, 6 out, AD/DA conversion with digital expansion up to 16x16.Unique touchscreen interface. Forever upgradable through our free firmware updates.Future-proof LSlot design with swappable USB, Thunderbolt and DANTE cards.Real-time meters and analysis tools, hyper-flexible routing and monitor control.Powered by mains or 9-18v DC battery packs for location recording.Lynx's class-leading transparent audio quality.Hilo 2: Upgraded conversion technology provides even more transparent performance.Hilo 2: SynchroLock 2 sample clock provides faster locking and better tracking of external clocks with 7ppm absolute accuracy.Hilo 2: In-plane switching LCD with capacitive touch provides significant increase in brightness, uniform off-axis viewing, and improved touch responsiveness.Hilo 2: Upgrade path to higher sample rates above 192kHz and DSD on input and output.Hilo 2: Selectable linear and minimum phase filters on line I/O.
Specifications
Analog Performance
Line in L/R (Preliminary)
THD+N: -116dB @ 1kHz, 20kHz filter, +22dBu trimDynamic range: 122dB @ A-weighted, -60dBFS signal methodFrequency response: ±0.01dB, 20"20kHzCrosstalk: -140dB maximum @ 1kHz, -1dBFS signalFull-scale trim settings: +0dBV, +2dBV, +4dBV, +6dBV, +18dBu, +20dBu, +22dBu, +24dBuFemale XLR connectors
Line out L/R (Preliminary)
THD+N: -116dB @ 1kHz, 20kHz filter, +22dBu trimDynamic range: 122dB @ A-weighted, -60dBFS signal methodFrequency response: ±0.02dB, 20"20kHzCrosstalk: -135dB maximum @ 1kHz, -1dBFS signalFull-scale trim settings: +0dBV, +2dBV, +4dBV, +6dBV, +18dBu, +20dBu, +22dBu, +24dBuMale XLR connectors
Monitor out L/R
THD+N: -107dB @1kHz, -1dBFS, 20kHz filter, volume at maxDynamic range: 121dB, A- weighted, -60dBFS signal methodFrequency response: ±0.02dB, 20-20kHzCrosstalk: -135dB maximum @ 1kHz, -1dBFS signalOutput level at max: +24dBu or +10dBu, jumper selectable1/4" TRS connectors
Headphone out
THD+N: -107dB @1kHz, -1dBFS, 20kHz filter, volume at maxDynamic range: 121dB, A-weighted, -60dBFS signal methodFrequency response: ±0.02dB, 20-20kHzCrosstalk: -130dB maximum @ 1kHz, -1dBFS signalOutput level at max: +19dBu1/4" headphone jack
Digital I/O
AES/EBU: transformer-coupled on XLR connectorsS/PDIF I/O coax: transformer-coupled on RCA jacksS/PDIF I/O optical: on optical connectorsADAT I/O: 8 channels at 48 kHz when selected on optical connectors
Other
Sample Rates
All standard rates up to 192 kHz using SynchcroLock sample clock generator
Synchronization Sources
InternalExternal word clock I/O: 75ohm TTL signal on BNC connectors AES/EBU or S/PDIF inputs
Computer Connectivity
Windows 64-bit drivers provided by LynxMacintosh macOS USB drivers provided by AppleMacintosh macOS Thunderbolt drivers provided by Lynx
LSlot Expansion Port
Supports Lynx LSlot expansion cards with up to 16 input and outputs simultaneously
LCD Display
480 x 272 LCD Touch Screen
Software
Hilo Remote
