MPN #LCT540S

$949.99

Save 4.9%, MSRP $999.00
Financing available
Free shipping in Canada. Conditions

1" true condenser studio microphone, cardioid pattern, low-cut, pad, shock mount, magnetic pop filter



Your mic for ultra-detailed studio recordings
Our unique approach towards electronics and capsule design makes the microphone better than human hearing. With the LCT 540 S, we set a new benchmark in terms of capturing fine-grained details of your recording source.

Record details of your voice and instruments that usually wouldn?t even be audible. Make every detail count
With its cutting-edge circuit and capsule design, the LCT 540 S features an impressive dynamic range of 132 dB to capture everything from loud to subtle. You won?t hear the self-noise of the mic even after heavily compressing the signal. Material recorded with the LCT 540 S is fit for extreme processing.

Our hearing threshold is very frequency-dependent. It is less sensitive towards low and very high frequencies and most sensitive around 2 " 5 kHz. With our specific and unique approach towards circuit and capsule design, we were able to realize self-noise that'll stay below the threshold of hearing across the entire frequency spectrum.

To measure the self-noise of the LCT 540 S, we built a unique device. It's ten times more massive than conventional ones, weighing over 4500 kg or 9900 lbs in total. This amount of mass will dampen frequencies up to a 1/10,000th of their sound pressure. The frequency range from 20 Hz to 20,000 Hz is dampened by 60 dB, up to 80 dB on the higher frequencies.

Every single LCT 540 S undergoes a series of measurements followed by adjustment of the polarization voltage to achieve the same sensitivity in every LCT 540 S we will ever produce. This way, you can form a pair when you buy another one later on.
  • 1" true condenser studio microphone
  • Self-noise below the threshold of human hearing
  • Ideal for extreme processing
  • Low-cut filters and attenuation
  • Cardioid polar pattern
  • Acoustical operating principle: Pressure gradient transducer, externally polarized
    Transducer Ø: 25 mm, 1 in
    Polar pattern: Cardioid
    Sensitivity: 41 mV/Pa, -28 dBV/Pa
    Self-noise: 4 dB (A)
    Max. SPL for 0.5 % THD: 136 dBSPL, 0 dB attenuation
    Signal / noise ratio: 90 dB (A)
    Dynamic range: 132 dB (A)
    Pre-attenuation pad: 0 dB, -6 dB, -12 dB
    Low-cut filter:
    linear
    80 Hz (6 dB/oct)
    160 Hz (6 dB/oct)
    Internal impedance: 68 ?
    Supply voltage: 48 V ± 4 V
    Current consumption: 3.6 mA
    Mic enclosure: Zinc die cast
    Connector: Gold-plated 3-pin XLR
    Microphone dimensions: 158 x 52 x 36 mm, 6.22 x 2.04 x 1.42 in
    Microphone net weight: 371 g, 13.1 oz

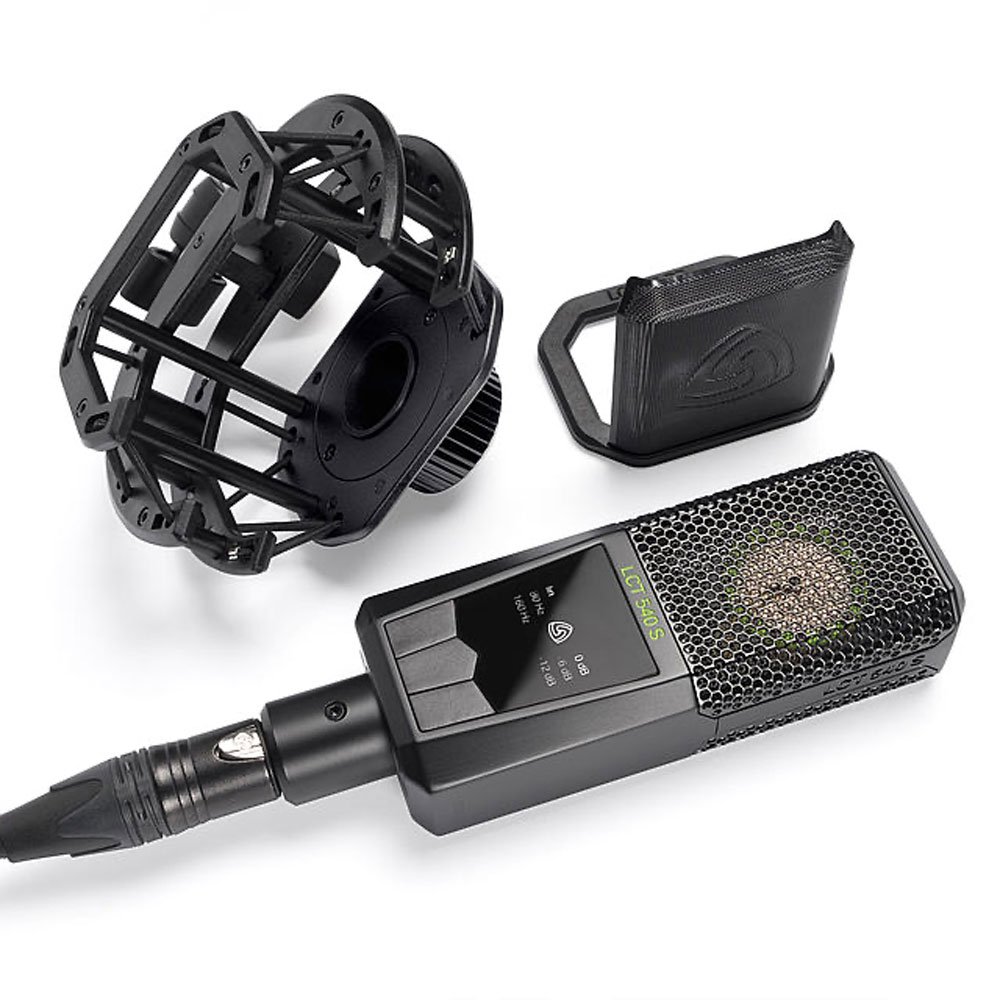

    Included: Shock mount, Magnetic pop filter, Windscreen, Transport bag
