MPN #DTP640REX

$499.99

Save 3.7%, MSRP $519.00
Free shipping in Canada. Conditions

Dual-capsule kick drum microphone, cardioid pattern, switchable sound characteristics

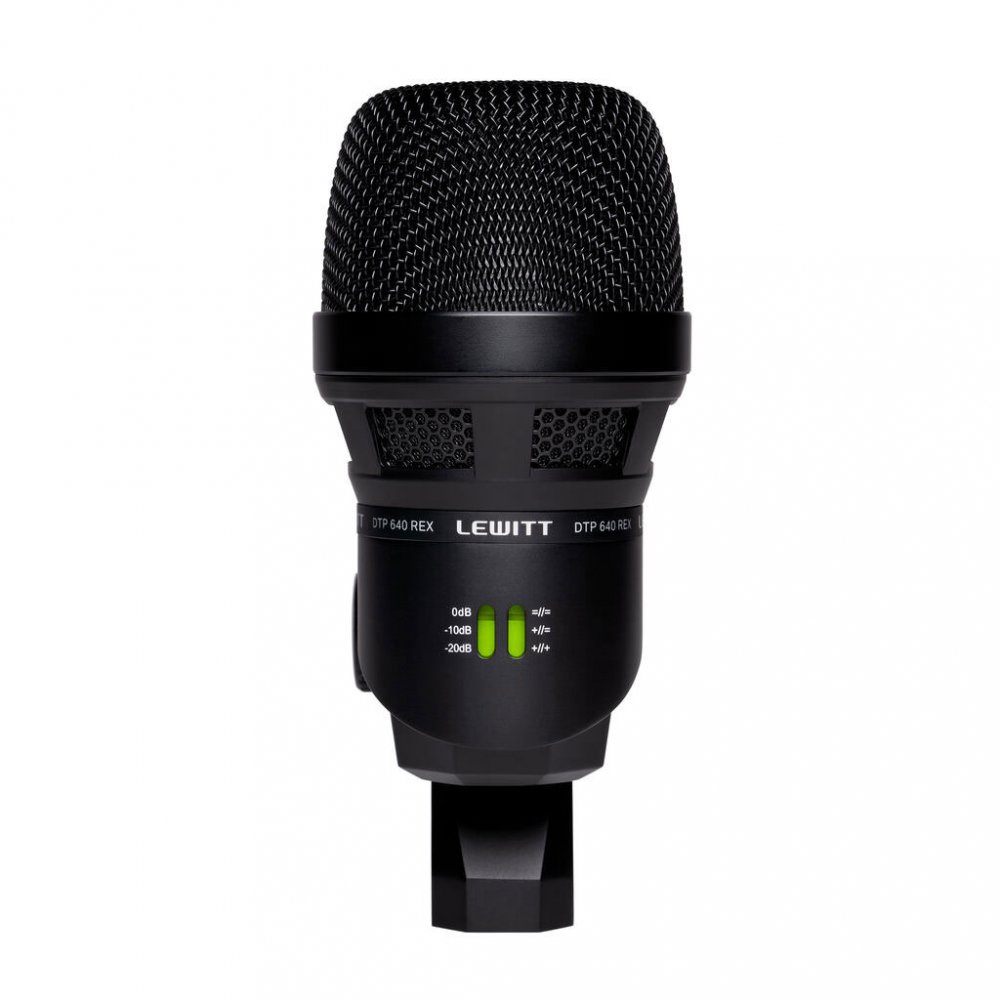

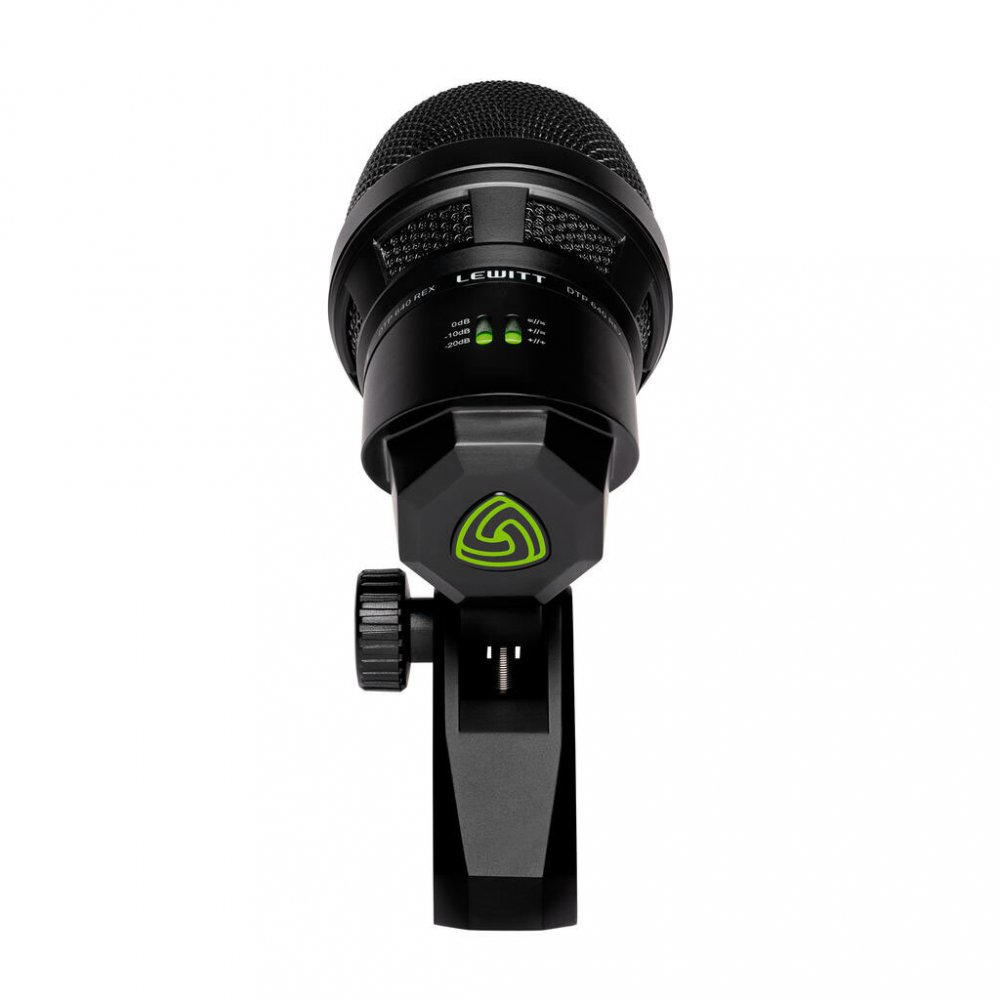

The DTP 640 REX is a dual-element microphone specifically designed to capture the sound of your drums and percussion instruments. It consists out of two phase-aligned capsules, a condenser and a dynamic one. You can switch between three sounds for more flexibility for studio and live applications.

Unique sound for bass drums and other bass-heavy instruments.

Two capsules for the best of your source.
We put two phase-aligned microphones in a single housing. The dynamic side ensures accurate attack reproduction of the kick drum, while the condenser element captures the drum's low end. Each element has a dedicated output.

This enables you to shape the kick drum sound in unique ways.

Cuts a good figure on your drums and bass.
With the DTP 640 REX, you get massive yet clear kick drum and bass recordings, in the studio and on stage.

The capsule is specifically designed to replicate low frequencies with precision and punch.

Hear and feel that kick.
Dynamic =//= Condenser
Both elements with neutral frequency response.

Dynamic +//= Condenser
Dynamic element boosts low frequencies; condenser stays neutral.

Dynamic +//+ Condenser
Dynamic boosts the range of 4-6 kHz, condenser boosts low frequencies.
  • Dual-element instrument microphone
  • Dynamic and condenser capsule in one housing
  • Separate outputs for both capsules
  • For kick drum and other bass-heavy sources
  • Three switchable sound characteristics
  • Cardioid polar pattern
  • Type: Dynamic, moving coil, Condenser, permanently polarized
    Acoustical operating principle: Pressure gradient transducer
    Transducer Ø: 31.7 mm, 1.25 in
    Transducer Ø: 22.4 mm, 0.88 in
    Polar pattern: Cardioid
    Frequency range (dynamic): 20 ... 16,000 Hz
    Frequency range (condenser): 20 ... 20,000 Hz
    EFR, ?Enhanced Frequency Response' settings
    Sensitivity, = // = FFR:
    0.4 mV/Pa (-69 dBV), dynamic
    2 mV/Pa (-54 dBV), condenser
    Sensitivity, + // = Dynamic EFR:
    0.4 mV/Pa, -69 dBV/Pa, dynamic
    2 mV/Pa, -54 dBV/Pa, condenser
    Sensitivity, + // + Dual EFR:
    Condenser and dynamic matched at 1 mV/Pa, -60 dBV
    Self-noise: 28 dB (A)
    Max. SPL for 0.5 % THD: 150 dBSPL, 0 dB attenuation
    Dynamic range of mic. amp. (condenser): 122 dB
    Pre-attenuation pad:
    0 dB
    -10 dB
    -20 dB
    Rated impedance dynamic: 500 ?
    Rated impedance condenser: 200 ?
    Supply voltage: 48 V ± 4 V
    Current consumption: 2 mA
    Connector: Gold plated 3-pin and 5-pin XLR

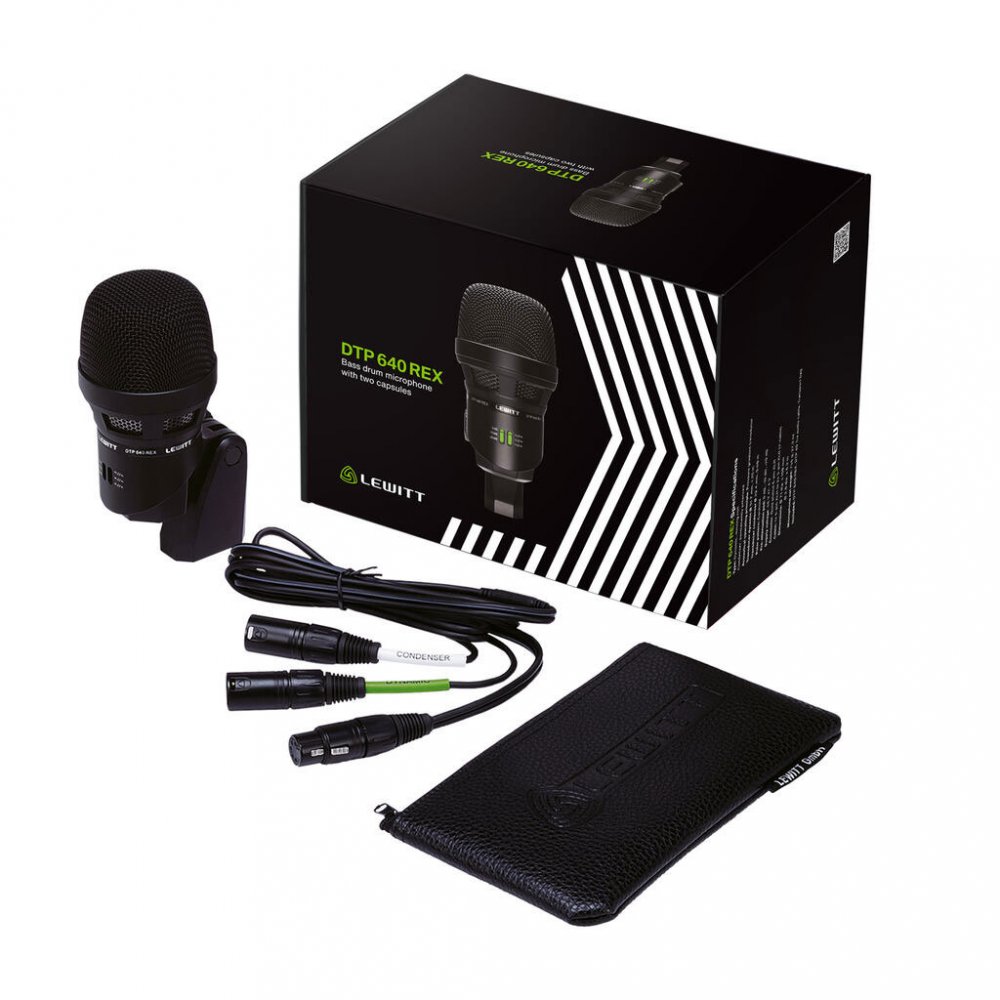

    Cable: 1.5 m (4.95?) dual shielded Y-cable, 5-pin XLR into two 3-pin XLRs
    Microphone dimensions: 71 dia. x 158 mm, 2.8 dia. x 6.2 in
    Microphone net weight: 755 g, 27.3 oz
