Lectrosonics M2T
MPN #M2T

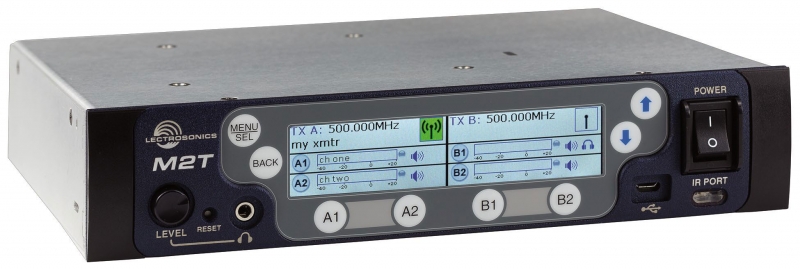

The M2T half-rack IEM/IFB transmitter houses two stereo transmitters to provide two stereo audio channels, and for up to four mono audio channels in a single rack space

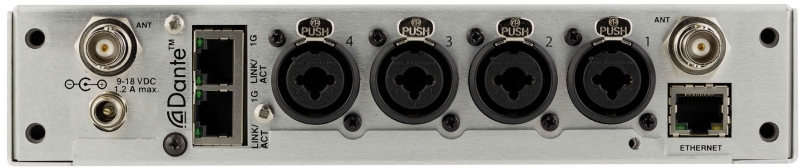

The audio inputs can be individually configured to be analog or Dante compatible. The analog input connectors are full-size XLR/TRS combo types for balanced line-level analog signals while the input preamp circuits use a special balanced amplifier with very high common mode rejection to minimize hum and noise. A Dante Ultimo interface via dual RJ45 connectors accepts Dante networked audio inputs and can cascade the digital stream to additional units via CAT6 cables. An additional RJ45 jack provides an Ethernet connection for programming and control via Wireless Designer software and a USB jack on the front panel allows for firmware updates. The transmitter features a full color, backlit LCD for high visibility in any environment, while the chassis is all-metal and can be racked singly or in pairs using included rack mount hardware.
Features
IEM (Wireless Monitor) with digital RF transmission24-bit digital audio2 independent stereo audio transmissions per 1/2 RV enclosureUSB port for firmware updatesFully Dante compatibleIR (infrared) port for fast setupUp to 50 mW per Rf carrierAll metal housingCompatible with Wireless Designer Software
Specifications
RF Power Output
Two carriers; two audio channels eachPower adjustable on each carrier to 10, 25 or 50 mW
Antenna Output: 2 x BNC sockets
Operating Frequencies: 470.100 - 607.975 MHz
Frequency Selection Steps: 25 kHz
Frequency Stability: ± 0.002%
Modulation: 8 PSK
Emission Designator: 200KG7E
Spurious Radiation: Compliant with ETSI EN 300 422-1
Equivalent input Noise: -128 dBV
Latency (overall system)
Digital Source: 1.0 ms plus Dante networkAnalog Source:
