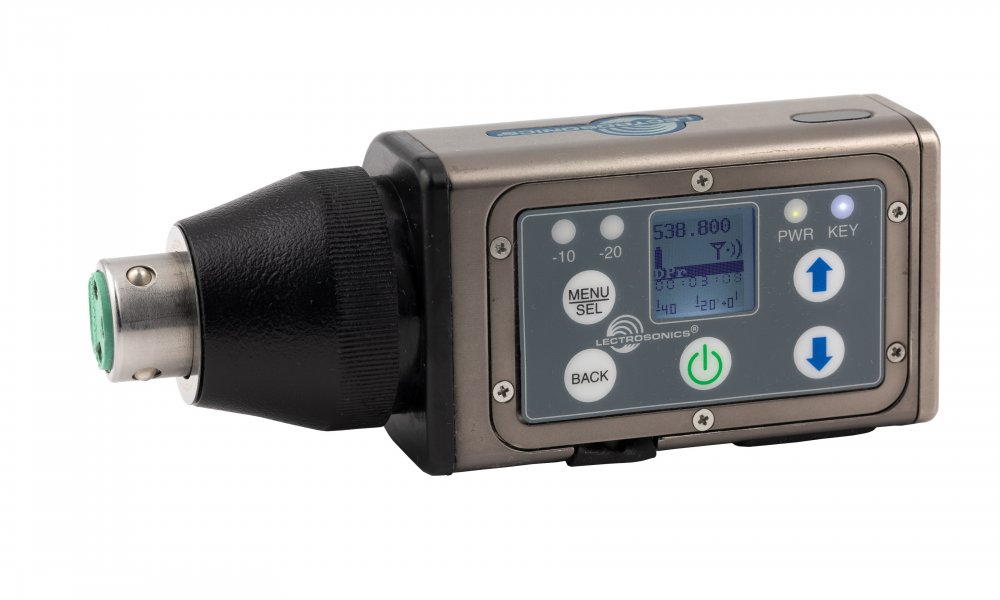

Lectrosonics DPR-A
MPN #DPR-A
The Lectrosonics DPR-A is a digital plug-on transmitter with on-board recording (either transmit or record)
The DPR is the same size and shape as the previous generation HM and HMa, but now is a fully digital transmitter, with excellent audio performance, particularly the low noise floor. In addition, the DPR can also be used as a recorder, with 24-bit/48 kHz .WAV files recorded onto microSDHC.
This unique digital plug-on transmitter design will ideally match any microphone or line level source via a stan- dard XLR connector. The DPR can tune in coarse or fine steps across the UHF television band from 470.100 to 607.950 MHz, with a selectable output power of 25 or 50 mW. The purely digital architecture utilizes AES 256-CTR encryption for high level security applications.
The transmitter is specially designed with high efficiency digital circuitry for extended operating time on two AA batteries, with status indicated by a multi-color LED. An IR (infrared) port is included to simplify setup with IR enabled receivers. Updates can be made via SD card.
The input amplifier uses an ultra low noise op-amp for quiet operation. It is gain controlled with a wide range, dual envelope limiter, providing over 30 dB of headroom above full modulation. A 24-bit A-D converter digitizes the audio, then filters out supersonic noise above
21 kHz.
The antenna is formed between the machined aluminum housing of the transmitter and the attached microphone or cable. It functions as a dipole radiator when attached to a hand-held microphone and somewhat like a ground plane antenna when connected with a cable or plugged directly into a mixer. The conical shaped collar on the input coupler is made of DuPontTM Delrin to improve the ERP of the antenna in the uppermost frequency bands.
Setup and adjustments are achieved through a backlit LCD, membrane switches and an intuitive menu struc- ture. The DPR also offer hands free setup and adjust- ment using audible tones via the LectroRM mobile app. Remotely, the DPR can be powered on and off, and the frequencies and audio levels can be adjusted. Other fea- tures include input gain adjustment in 1 dB increments over a 55 dB range and adjustable low frequency audio roll-off for 3 dB down points at 25, 35, 50, 70, 100, 120 or 150 Hz to control subsonic and very low frequency audio content.
Alternate Recording Function
The DPR transmitter may also be used as a stand alone recorder. The industry standard .wav (BWF) file format employed is compatible with essentially any audio or video editing software. The DPR can be jammed with timecode sync for each audio file alignment during post production.
Features
. Wideband UHF tuning range
. Accepts microphone or line level signals
. Selectable 5, 15, 48 volt phantom power
. Selectable 25/50 mW output power
. Adjustable low frequency roll-off
. Powered by two AA batteries
. IR (infrared) port for fast setup
. Remote controlled "dweedle" tones (audio tone set-up control)
. Time code jam sync
. Solid machined aluminum housing
. On board recording
. Encryption 256 Bit AES, CTR Mode
