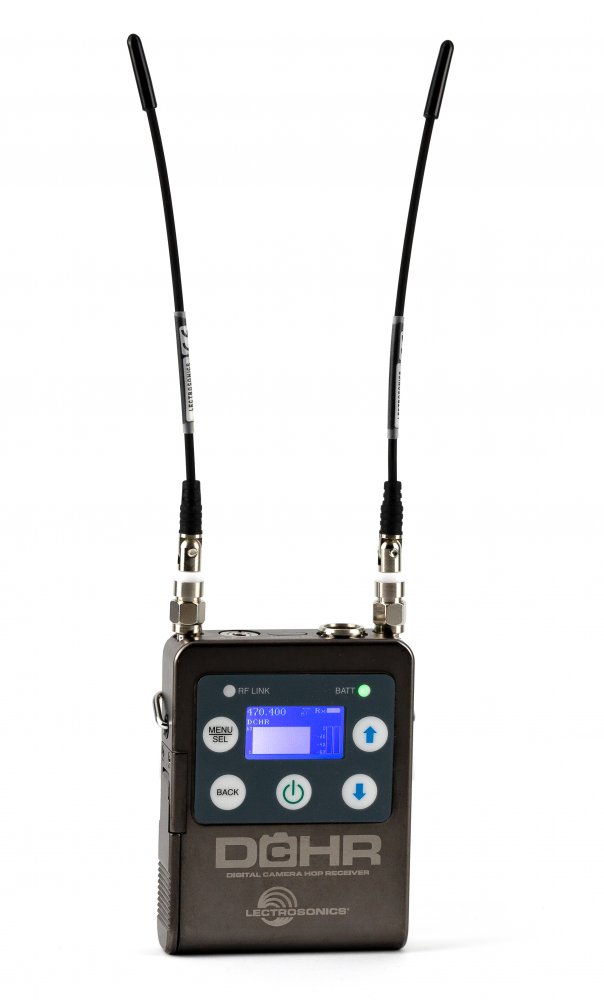

Lectrosonics DCHR
MPN #DCHR
The Lectrosonics Digital Camera Hop Transmitter is designed for use in film and television production
The transmitter can tune in coarse or fine steps across the UHF television band from 470.100 to 607.950 MHz, with a selectable output power of 10, 25 or 50 mW.
Studio quality, stereo audio performance is assured by high quality components in the preamp, wide range input gain adjustment and DSP-controlled limiting.
Features
. Tunes across entire UHF frequency range
. 256-bit encryption - AES 256-CTR
. Selectable RF power at 10, 25 and 50 mW
. AES and analog mic and line level inputs
. USB port for firmware updates
. Wide range input gain adjustment
. Compatible with Duet M2R receiver
. DSP-controlled input limiter
. Two AA battery power
. Solid machined aluminum housing
. Optional powering from external DC
Specifications
Operating Frequencies: US: 470.100 - 614.375 MHz
Modulation Type: 8PSK with Forward Error Correction
Audio Performance
Frequency Response:
D2 mode: 25 Hz - 20 kHz, +0\-3dB
Stereo modes: 20 Hz - 12 kHz, +0\-3dB
THD+N: 0.05% (1kHz @ -10 dBFS)
Dynamic Range: >95 dB weighted
Adjacent Channel Isolation: >85dB
Diversity Type: Switched antenna, during packet headers
Audio Output
Analog: 2 balanced outputs
AES3: 2 channels, 48 kHz sample rate
Headphone Monitor: 3.5 mm TRS jack
Level (line level analog): -50 to +5dBu
Latency: D2 mode: 1.4 ms, Stereo modes: 1.6 ms
Power requirements: 2 x AA batteries (3.0V)
Battery life: 8 hours; (2) Lithium AA
Power consumption: 1W
Dimensions: Height: 3.0 in. / 72 mm., Width: 2.375 in. / 60 mm., Depth: .625 in. / 16 mm.
Weight: 9.14 ounces / 259 grams (with batteries)
