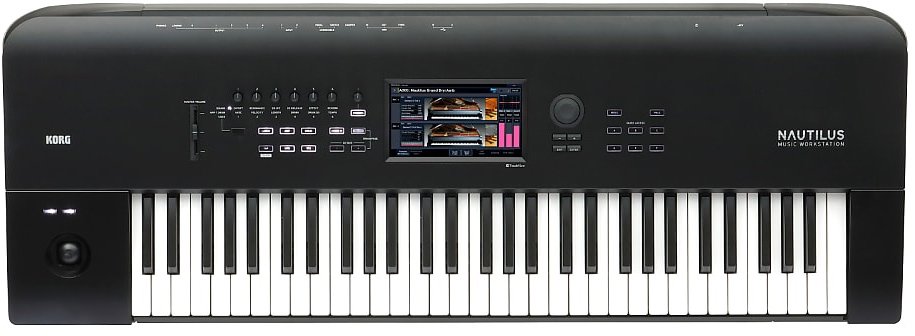

Korg Nautilus 61
UPC/EAN #4959112195240
MPN #NAUTILUS61
$2599.99
Save 27.8%, MSRP $3600.00
The Korg NAUTILUS 61 is a 61-key Synth/Workstation Natural Touch Semi-Weighted
NAUTILUS pushes the boundaries of what a performance synth and workstation is capable of. With the power of nine engines to drive a new approach to sounds, plentiful sampling, audio recording, effects and processing power, there is simply no other synth that delivers more to explore sonically, with the workflow to get you there faster than ever. Korg spent years refining all our digital, analog, processing and hardware technologies and delivering them in a way that helps the musician connect with their instrument. The result is the incredibly powerful, one-of-a-kind NAUTILUS.
Features
- Nine different sound engines offer massive expressive power
- New sounds offered over three broad categories
- The DYNAMICS knob makes delicate expression possible
- Make intuitive changes to sounds with the Realtime knobs
- A user interface designed for easy operation
- Convenient arpeggiator and drum track functions
- Set list mode that demonstrates its power in live performances
- Open Sampling System
- 16-Track MIDI Sequencer / 16-Track Audio Recorder
- 16 Onboard Effect Processors
- USB/MIDI Host Ports Accommodate MIDI Control Surfaces
- Smooth sound transitions that eliminate dropouts when changing sounds, regardless of the mode you're in
- 88-key model with piano touch, 73-key model with light touch and 61-key model available
Specifications
General
Disk Mode:
Load, save, utility, data filer function (save/load MIDI System Exclusive data), CD-R/RW (UDF format read/write), ISO9660 Level 1.
Controllers: Joystick, Switches 1 & 2
Arpeggiator Control: On/Off, Latch, Gate, Velocity, Length, Swing, Tempo
DRUM TRACK: On/Off, Swing, Drum SD, Tempo
Display: TouchView graphical user interface, 7 inch color TFT, WVGA (800 x 480 dots), adjustable brightness
Principal Specifications: Frequency Response: 20Hz-22kHz, +/-1.0dB, 10k load
THD+N: 20Hz-22kHz, 0.01%, 10k load (typical)
S/N: 95dB (typical)
Dynamic Range: 95dB (typical)
Crosstalk: 95dB, at 1kHz (typical)
Outputs: L/MONO, R, Individual 1-4 , 1/4" TRS Balanced
Output Impedance: 350 Stereo; 175 Mono (L/MONO Only),
Nominal Level: +4.0 dBu,
Maximum Level: +16.0 dBu (when load impedance is 600 or greater)
MAIN VOLUME slider controls only AUDIO OUTPUT (MAIN) L/MONO and R
Headphones:
1/4" stereo phone jack
Output impedance: 33 ,
Maximum Level: 60+60 mW (when load impedance is 33 ),
MAIN VOLUME knob (link with AUDIO OUTPUT (MAIN))
USB-B:
24-bit, Sample Rate: 48 kHz, 2 channels
(Digital output of the same signals as AUDIO OUTPUT (MAIN) L/MONO and R)
Inputs:
Audio Inputs 1 and 2
1/4" TRS Balanced
Input Impedance: 10 k
Nominal Level: LINE +4 dBu
Maximum Level: LINE +16 dBu
Nominal Level: MIC -22 dBu
Maximum Level: MIC -10 dBu
Source Impedance: 600
USB-B: 24-bit, Sample Rate: 48 kHz, 2 channels
Control Inputs: Damper pedal (half damper supported), Assignable switch, Assignable pedal
MIDI: In, Out, Thru
USB: USB A (TYPE A)
For connection to external USB devices (QWERTY keyboards, MIDI controllers, ethernet adaptors, and storage)
USB B (TYPE B)
MIDI/audio interface, MIDI: 1 (16 channel) input / 1 (16 channel) output, Audio: 2 channel input / 2 channel output
*2 USB high-speed ports (supports 480Mbps)
Disk Drives: 60 GB SSD (2.5")
Power Supply: AC power supply terminal, Power switch
Dimensions: (W x D x H)
88 key: 1,437 x 387 x 139 mm / 56.57" x 15.24" x 5.47"
73 key: 1,227 x 386 x 116 mm / 48.31" x 15.20" x 4.57"
61 key: 1,062 x 386 x 116 mm / 41.81" x 15.20" x 4.57"
Weight:
88 key: 23.1 kg / 50.93 lbs.
73 key: 14.6 kg / 32.19 lbs.
61 key: 13.0 kg / 28.66 lbs.
Power Consumption: 40 W
Accessories: AC cord, Quick Start Guide
Option:
XVP-20: Expression/Volume Pedal
EXP-2: Foot Controller
DS-1H: Damper Pedal
PS-1: Pedal Switch
PS-3: Pedal Switch
