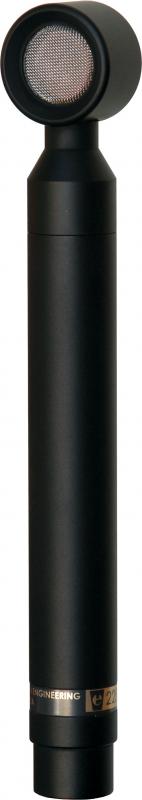

Josephson Engineering e22S
MPN #e22S
$2478.00
Save 1.7%, MSRP $2520.00
The Josephson e22S side-address cardioid was designed to meet the needs of noted recording engineer Steve Albini.
The physical profile allows unobtrusive placement, even with tight percussion layouts. Unique among studio condenser microphones, the e22S capsule geometry is optimized for spot miking performance. The circuit uses a cascode discrete FET front end, combined with a custom Lundahl output transformer. The electronics were designed to interface easily with either transformer or direct coupled mic preamps. The e22S has low self-noise, so it delivers low level detail, and handles high sound pressure levels for minimal distortion on extremely loud passages. The microphone housing is very rugged, with a precision machined, satin black chrome finish.
Specifications
Directional pattern: CardioidFrequency response: 20-20,000 Hz ±2 dB from curveSensitivity: 3.0 mV/PaRated impedance: 200 ohmsEquivalent noise level: 15 dB SPL A-weightedMaximum SPL: 144 dBWeight: 180 gDimensions: 21mm diameter, 190mm long, 30mm head
