JoeCo BlackBox BBR1-D
UPC/EAN #5060696120029
MPN #BBR1-D

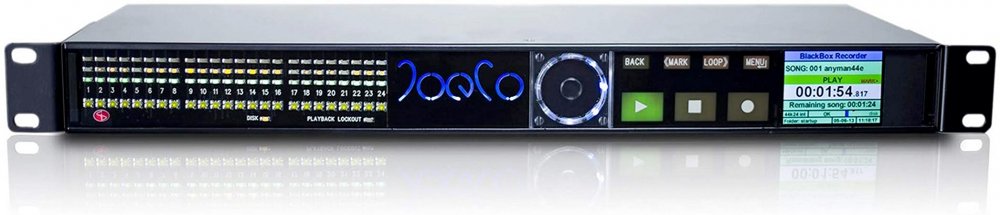

24 channel BLACKBOX Recorder " AES/EBU and unbalanced i/o
Three 25-way female D-type connectors, each carrying 8 channels of inputs and outputs, can be connected directly into the digital mixer to capture and return the signals without any additional A-D conversion, giving 12 stereo channels of AES/EBU inputs and 12 stereo channels of AES/EBU outputs. Analogue inputs are also still available (switchable). All other BlackBox Recorder features remain unchanged.
The AES/EBU interfaces can operate at up to 96kHz and conform to the AES standard (AES-3:2003). It is also still possible to chain multiple BBR1D units together to make larger multitrack recordings.

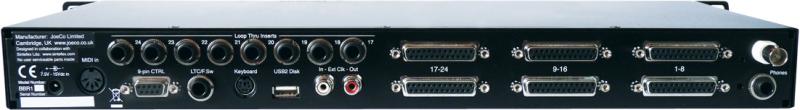

AES3 (2003) i/o via 3 x 25way D-sub connectors - upper row. (Yamaha format pin out standard). Word clock input on BNC. Unbalanced analogue as BBR1U (cable looms not supplied)
Specifications
General Specifications
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Bit depths: 16bit; 24bit
Disk interface: USB2
Format: FAT32
File type: Broadcast WAV (BWAV)
Media: USB2 hard disk (7200rpm recommended), USB2 flash drive - 200x minimum (except for MADI and DANTE systems which have more demanding data rates), SHDC (Class 10 with suitable adapter except MADI and DANTE)
Monitoring: 1 x 1/4" TRS jack socket, headphone mix/solo
Physical: 19" rack mounted 1U
Dimensions: (425mm x 150mm x 44mm)
Weight: < 2.4kg
Control and Synchronisation
MIDI: 1 x 5-pin DIN (open loop) - MIDI time code (MTC) and MIDI machine control (MMC) protocol
LTC: 1 x 1/4" TRS jack socket: Frame rates supported: 30fps, 29.97drop fps, 29.97non-drop fps, 25fps, 24fps, 23.98fps
Machine control: 1 x 9-pin D, SONY PII protocol
Audio clock synchronisation: 2 x RCA sockets, AES3 / SPDIF Format, also used for communications to slave units
Footswitch: momentary switch on ring of LTC, TRS socket
Keyboard: 1 x mini DIN PS2 connector, Standard 102 key
Power: 9v - 16V dc (< 25W). 2.1mm dc inlet. PSU supplied
Analogue Inputs:
Levels: -10dBu / +4dBu switchable
Max input level: +22dBu = 0dBFS
A-D conversion: 24bit, 96kHz
106dB S/N, 96dB THD+N (typical A-weighted)
Analogue Outputs:
Levels: -10dBu / +4dBu switchable
Max output level: +22dBu = 0dBFS
D-A conversion: 24bit, 96kHz
106dB S/N, 94dB THD+N (typical A-weighted)
