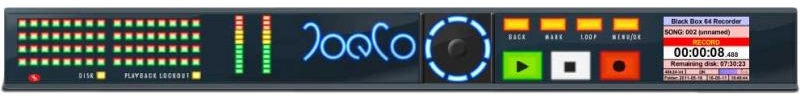

JoeCo BBR64-MADI
UPC/EAN #5060696120043
MPN #BBR64-MADI
64 channel BLACKBOX Recorder " MADI i/o plus 8 ch. balanced inputs
The recorder can capture the full 64 channels at standard sample rates directly to Broadcast WAV files on an external USB2 drive. Double sample rate MADI recording (up to 96kHz) is also accommodated.
The recorder sports both coaxial and optical MADI connections for interfacing with any MADI equipped console or other equipment. Additionally, the BBR64-MADI caters for 56-channel legacy MADI and can record a further 8 channels of analogue (balanced line in) for capturing the audience reaction or general ambience.
The BBR64-MADI will lock to or generate word clock, as well as locking to the received MADI data stream. The MADI input is echoed direct to the output to ease system integration. In addition to the PFL bus providing both hi-resolution metering and headphone monitoring, an additional "mix" feature has been added to the headphone output.

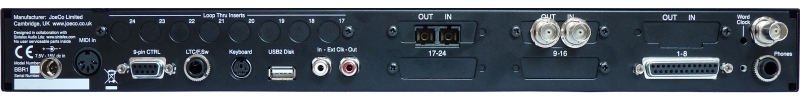

MADI coax (BNC) in and out. MADI optical in and out. Wordclock in or out (switchable BNC).
8 x balanced analogue inputs on 25w D-type (Tascam format)
Specifications
General Specifications
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Bit depths: 16bit; 24bit
Disk interface: USB2
Format: FAT32
File type: Broadcast WAV (BWAV)
Media: USB2 hard disk (7200rpm recommended), USB2 flash drive - 200x minimum (except for MADI and DANTE systems which have more demanding data rates), SHDC (Class 10 with suitable adapter except MADI and DANTE)
Monitoring: 1 x 1/4" TRS jack socket, headphone mix/solo
Physical: 19" rack mounted 1U
Dimensions: (425mm x 150mm x 44mm)
Weight: < 2.4kg
Control and Synchronisation
MIDI: 1 x 5-pin DIN (open loop) - MIDI time code (MTC) and MIDI machine control (MMC) protocol
LTC: 1 x 1/4" TRS jack socket: Frame rates supported: 30fps, 29.97drop fps, 29.97non-drop fps, 25fps, 24fps, 23.98fps
Machine control: 1 x 9-pin D, SONY PII protocol
Audio clock synchronisation: 2 x RCA sockets, AES3 / SPDIF Format, also used for communications to slave units
Footswitch: momentary switch on ring of LTC, TRS socket
Keyboard: 1 x mini DIN PS2 connector, Standard 102 key
Power: 9v - 16V dc (< 25W). 2.1mm dc inlet. PSU supplied
Analogue Inputs:
Levels: -10dBu / +4dBu switchable
Max input level: +22dBu = 0dBFS
A-D conversion: 24bit, 96kHz
106dB S/N, 96dB THD+N (typical A-weighted)
Analogue Outputs:
Levels: -10dBu / +4dBu switchable
Max output level: +22dBu = 0dBFS
D-A conversion: 24bit, 96kHz
106dB S/N, 94dB THD+N (typical A-weighted)
