JoeCo BBR64-DANTE
UPC/EAN #5060696120050
MPN #BBR64-DANTE
4 channel BLACKBOX Recorder " DANTE i/o plus 8 ch. balanced inputs
The records at 44.1kHz and 48kHz directly to Broadcast WAV files on an external USB2 drive. (Higher sample rate recording is also accommodated at a reduced track count.)
The BBR64-DANTE connects to any Dante?-enabled device from a range of console and converter manufacturers including Allen&Heath, Yamaha, MIDAS, DiGiCo and Focusrite to name but a few. Designed to support standard network components and switches, it can also record 8 channels of analogue (balanced line in) alongside 56 channels of Dante for capturing audience and ambience.
The BBR64-DANTE will lock to or generate word clock, as well as locking to the incoming Dante audio stream. In addition to the PFL bus providing both hi-resolution metering and headphone monitoring, an additional "mix" feature has been added to the headphone output.
Discover how Dante technology can take the stress out of capturing live multi-channel audio via network. This series of speed draw video animations shows why it's currently one of the hottest AV networking solutions around.

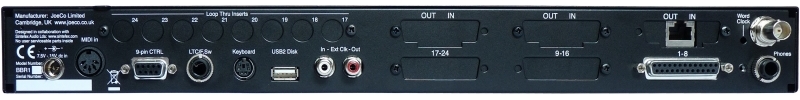

Standard DANTE Ethernet connection on RJ45 connector. Wordclock in or out (switchable BNC).
8 x balanced analogue inputs on 25w D-type (Tascam format)
Specifications
General Specifications
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Bit depths: 16bit; 24bit
Disk interface: USB2
Format: FAT32
File type: Broadcast WAV (BWAV)
Media: USB2 hard disk (7200rpm recommended), USB2 flash drive - 200x minimum (except for MADI and DANTE systems which have more demanding data rates), SHDC (Class 10 with suitable adapter except MADI and DANTE)
Monitoring: 1 x 1/4" TRS jack socket, headphone mix/solo
Physical: 19" rack mounted 1U
Dimensions: (425mm x 150mm x 44mm)
Weight: < 2.4kg
Control and Synchronisation
MIDI: 1 x 5-pin DIN (open loop) - MIDI time code (MTC) and MIDI machine control (MMC) protocol
LTC: 1 x 1/4" TRS jack socket: Frame rates supported: 30fps, 29.97drop fps, 29.97non-drop fps, 25fps, 24fps, 23.98fps
Machine control: 1 x 9-pin D, SONY PII protocol
Audio clock synchronisation: 2 x RCA sockets, AES3 / SPDIF Format, also used for communications to slave units
Footswitch: momentary switch on ring of LTC, TRS socket
Keyboard: 1 x mini DIN PS2 connector, Standard 102 key
Power: 9v - 16V dc (< 25W). 2.1mm dc inlet. PSU supplied
Analogue Inputs:
Levels: -10dBu / +4dBu switchable
Max input level: +22dBu = 0dBFS
A-D conversion: 24bit, 96kHz
106dB S/N, 96dB THD+N (typical A-weighted)
Analogue Outputs:
Levels: -10dBu / +4dBu switchable
Max output level: +22dBu = 0dBFS
D-A conversion: 24bit, 96kHz
106dB S/N, 94dB THD+N (typical A-weighted)
