JBL  |  SKU: 22260

SRX812

Passive Monitors

Two-way full range speaker with a 12" woofer

$1,999.99 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

SRX812 is a two-way full range passive portable speaker with a 12" woofer made for use as a light-duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX812 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.

Applications Live performance systems Mobile and fixed DJ systems Sound system rental and tour Permanent installations

Features

Features

Premium JBL Transducers

Tunings available for Crown amps and dbx signal processors

Fully supported in Audio Architect

Power Handling: 3200W Peak, 1600W Program, 800W Continuous

Frequency Range: 41Hz-20kHz

Frequency Response: 57Hz-20kHz

Max SPL: 129dB (Peak)

Coverage Pattern: 90 x 50

Amplification options: Passive/Bi-Amp

Specifications

System Type: Passive 12", two-way, bass-reflex
Maximum SPL Output: 123dB (Continuous), 129dB (Peak)
Frequency Range (-10dB): 41hz - 20khz
Frequency Response (-3 dB): 57hz - 20khz
Sensitivity: 94dB
System Power Rating: 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance : 8 Ohm
Inputs: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes: Passive/Bi-Amp

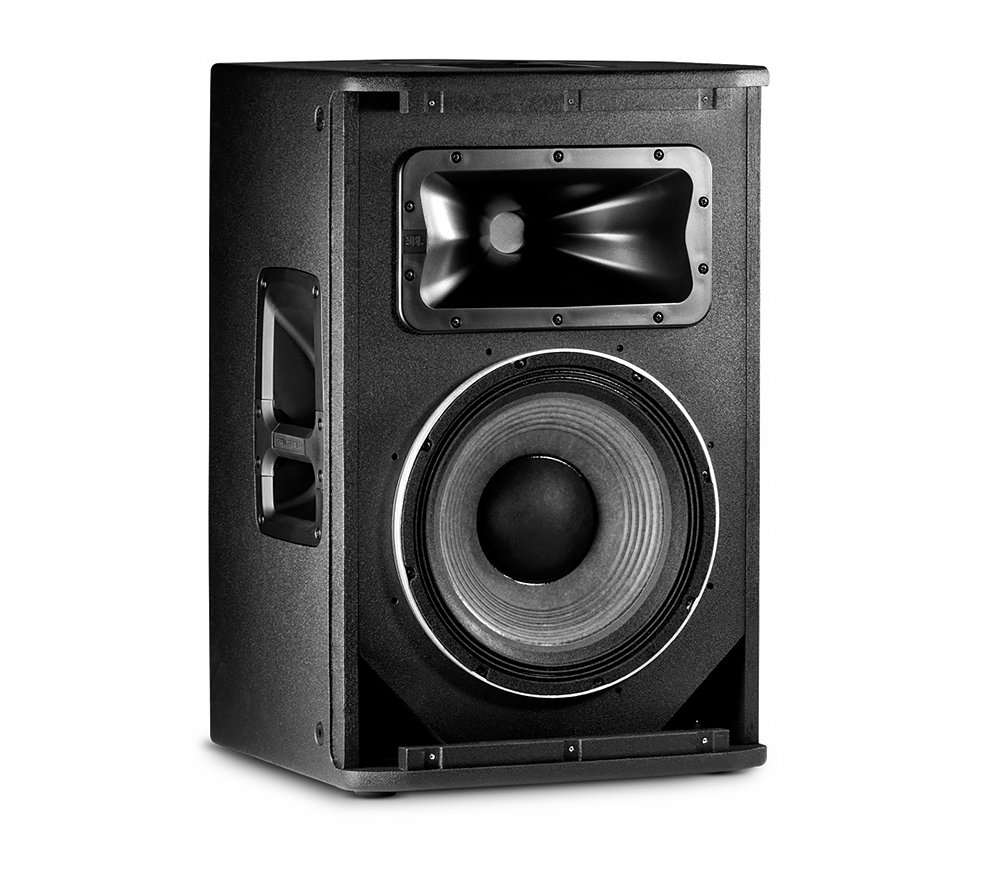

LF Driver: 2272H
HF Driver: 2432H
Coverage Pattern: 90 x 50
Crossover Frequency: 1.9khz
Enclosure: 18mm Duraflex coated plywood
Monitor Angle: 50
Suspension/Mounting: Dual 36mm pole socket, 12 x M10 Suspension points

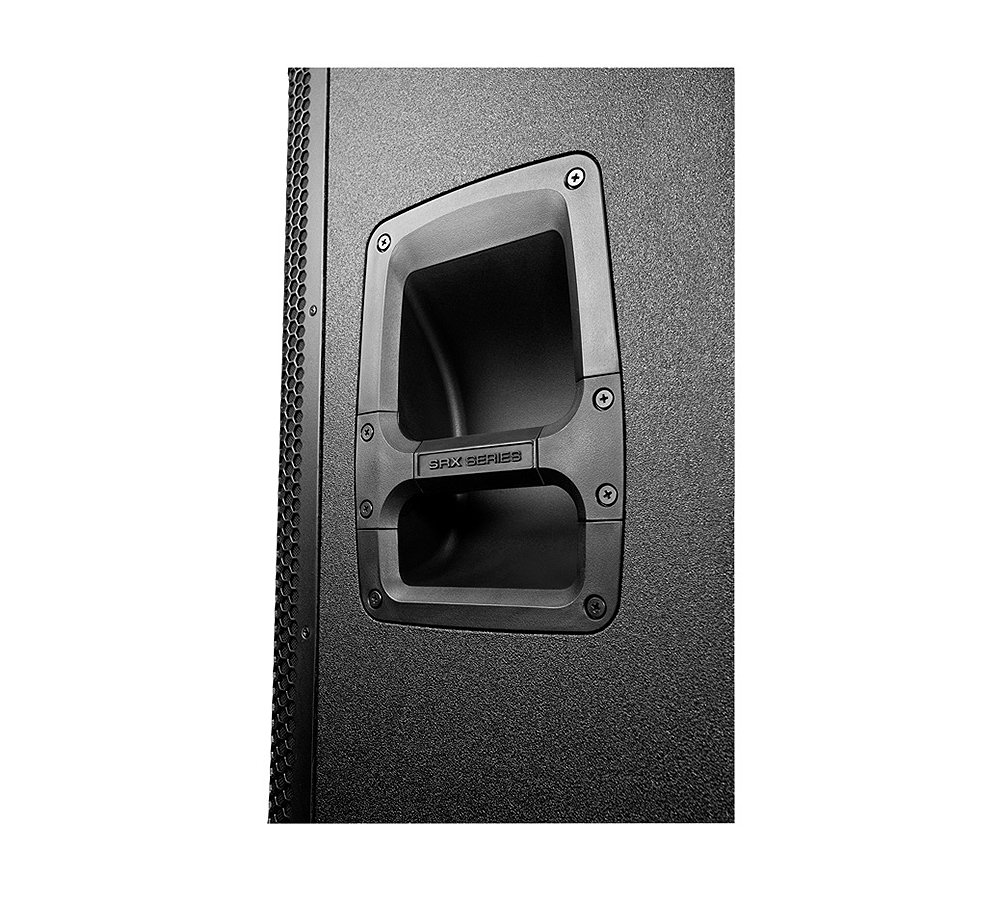

Handles: 3
Finish: Obsidian Duraflex™ finish
Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D): 429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in)
