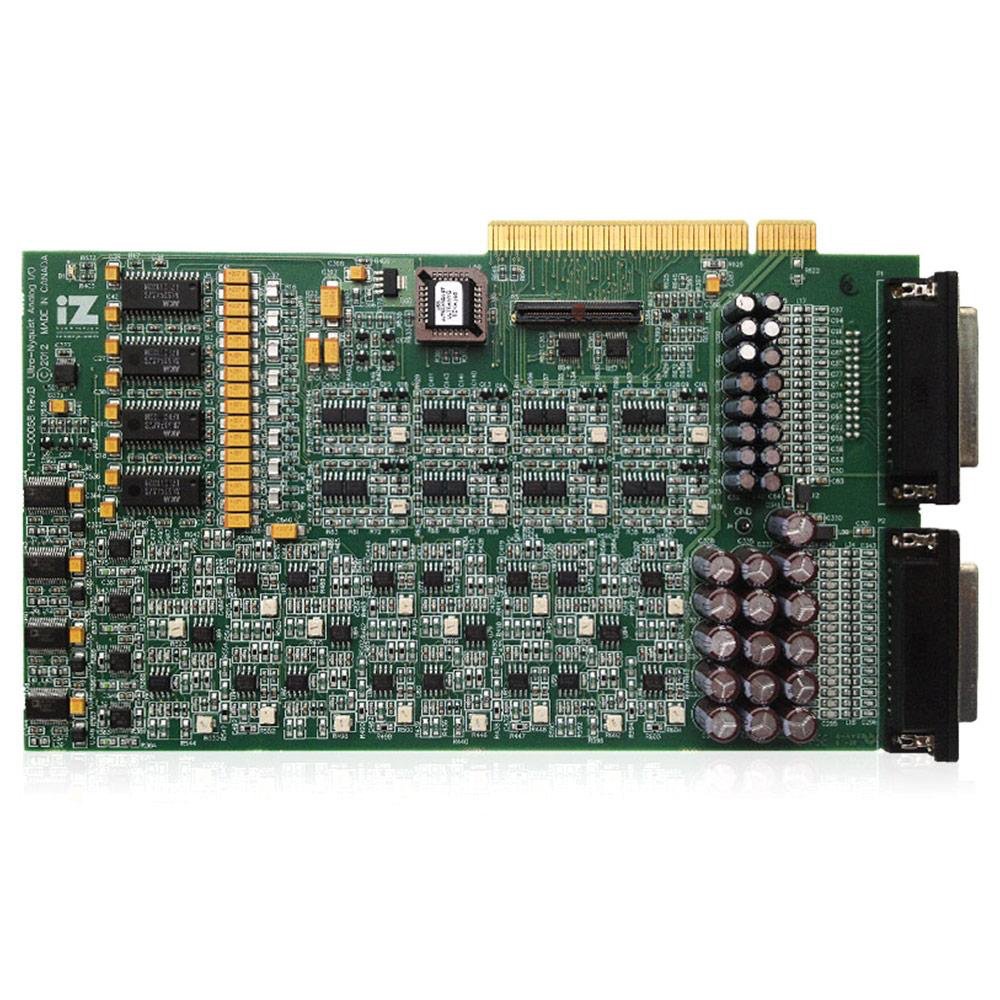

iZ RADAR Ultra-Nyquist 192kHz 8 I/O Analog Card
MPN #UNyquist192

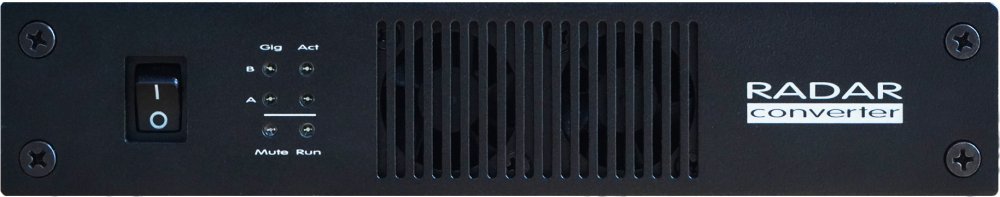

8-channel analog I/O cards, up to 192kHz sample rate, for use with the RADAR Converter. Lower noise and distortion than even the famed S-Nyquist design
Ultra-Nyquist analog cards deliver the most pristine and euphonic conversion of any 8 I/O card RADAR has ever produced. With lower noise and distortion than even the famed S-Nyquist (192 kHz) and Nyquist (96 kHz) designs, Ultra-Nyquist sound cards will lift the blanket off any mix. Characterized by rich, warm tones, incredible presence and crystal clear highs, the Ultra Nyquist converters preserve audio integrity by providing the highest fidelity conversion possible on any recording.
Features
Up to 2 x 8 channel analog I/O cards may be installed for a total of 16 channels of analog I/O per Converter chassis.Chassis can be chained together for up to 256 I/O via Dante connectivity.Input Connectors (per 8 channel card): 1 x DB-25, 25-pin connectors (balanced) Tascam wiring standardOutput Connectors (per 8 channel card): 1 x DB-25, 25-pin connectors (balanced) Tascam wiring standardOperating Level: +4 dBu with selectable headroomInput and Output Level Select (maximum level): +18, +20, +22, +24 dB
Specifications
Dynamic Range: 24 bit mode 108 dB A-weighted, 16 bit mode 96 dB A-weighted
THD+N @ 1 kHz: 0.5 dB below full scale, less than .006% A-weighted
Frequency Response: 10-22kHz +/-.5 dB at 44.1 or 48 kHz, 10-45kHz +/-3 dB at 96 kHz, 10-80kHz +/-3 dB at 192 kHz
Sample Rates: 32, 44.056, 44.1, 47.952, 48, 64, 88.112, 88.2, 95.904, 96, 128, 176.224, 176.4, 191.808, 192 kHz
