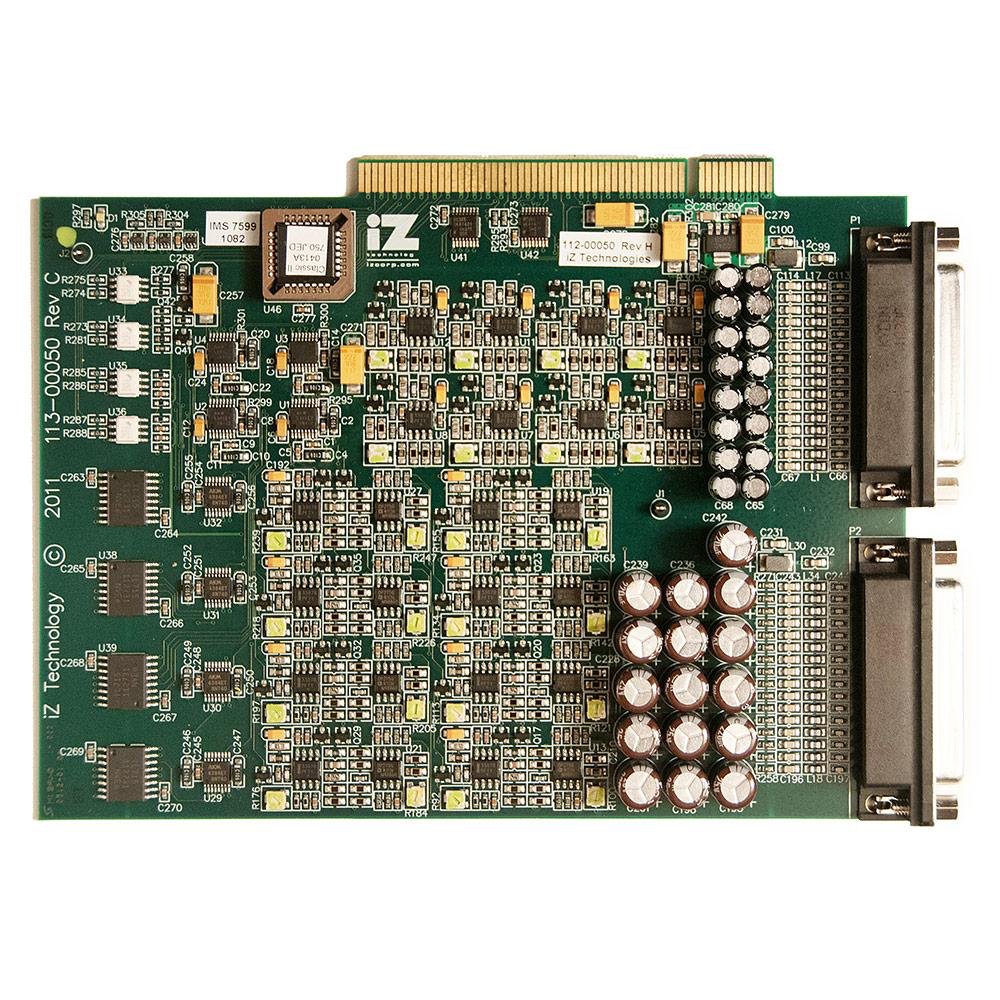

iZ RADAR Classic 96kHz 8 I/O Analog Card
MPN #Classic96

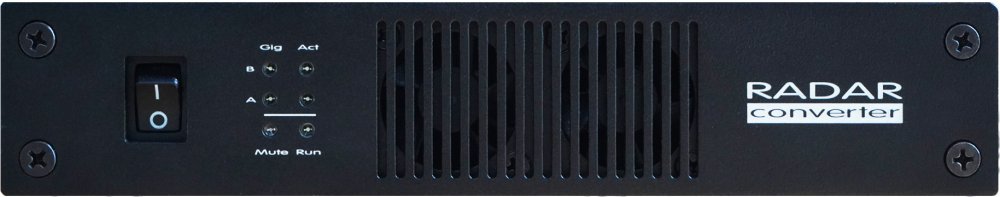

8-channel analog I/O cards, up to 96kHz sample rate, for use with the RADAR Converter
RADAR Classic 96 analogue cards maintain the high-quality, signature RADAR sound without compromising disk space. Never harsh or biting, Classic 96 converter cards are optimized to bring 8 I/O of clear, transparent sound to rock and live recording applications. The Classic 96 delivers the same warmth, bottom end, and performance characteristics as the historic Classic analogue I/O cards, but with the sample rate range extended up to 96 kHz.
Features
Up to 2 x 8 channel analog I/O cards may be installed for a total of 16 channels of analog I/O per Converter chassis.Chassis can be chained together for up to 256 I/O via Dante connectivity.Input Connectors (per 8 channel card): 1 x DB-25, 25-pin connectors (balanced) Tascam wiring standardOutput Connectors (per 8 channel card): 1 x DB-25, 25-pin connectors (balanced) Tascam wiring standardOperating Level: +4 dBu with selectable headroomInput and Output Level Select (maximum level): +18, +20, +22, +24 dB
Specifications
Dynamic Range: A/D 104 dB A-weighted, less than
0.003% THD+N with 1kHz: 0.5 dB below full scale.
D/A path 104 dB, less than 0.003% THD+N
Frequency Response: 10-22kHz +/-.5 dB at 44.1kHz,
10-45kHz +/-3 dB at 96kHz
Sample Rates: From 32 up to 96kHz
Latency with Dante PCIeR card: 2.36 ms @96kHz
4.21 ms @48kHz. Latency with DVS: 10.2 - 11.7 ms
Note: All latency based on 32 sample buffer size.
