Ik Multimedia iLoud MTM mkII (Single, White)
UPC/EAN #8025813934030
MPN #K iLoud MTM mkII WHT
Compact, high-resolution studio monitor, white version
Styled in a black finish, the IK Multimedia iLoud MTM is a compact, high-resolution studio monitor designed to deliver accurate, uncolored sound for professional recording studios, project studios, and broadcast applications. IK Multimedia's patent-pending Physical Response Linearization (PRL) system uses a precise model of the enclosure's design, construction, and materials, combined with electro-mechanical measurements of the real units, to correct the system's performance in real time, which results in a flat frequency response, accurate phase relationships, and a firm, balanced bass output that competes with other monitors that are twice the size.
The MTM features a 100W Class-D biamplifier which drives 70W to the two 3.5" high-performance woofers and 30W to the single, back-chambered silk-dome tweeter, which combine for a frequency response of 40 Hz to 24 kHz and a maximum SPL output of 103 dB. The iLoud MTM offers built-in acoustic self-calibration via the included ARC reference microphone, which automatically adjusts the built-in DSP for true phase-coherency and precise, defined, point-source sound. The rear panel also offers options to further customize user settings including LF extension, LF boost/cut, and HF boost/cut.
The included tilt mount allows you to set an angle from 0 to 20, which helps isolate the dispersion away from flat surfaces such as desktops or mixing boards. Horizontal support feet are provided and the base includes a thread to mount to mic stands for more installation options. The IK Multimedia iLoud MTM Monitor includes the ARC microphone, an ARC mic cable, a power cord, a tilt stand, a horizontal support, and a locking key.
Features
Ultra-flat frequency responsePhase-coherent soundExtended, controlled low endSuperior sound at short distancesPerfect for desks and small spacesARC self-calibration adjusts to any roomDSP-controlled for superior performance100W RMS total power per speaker40 Hz to 24 kHz frequency response0 - 20 tilting stand for ideal positioning
Specifications
Type: 2-Way/3-speakers bi-amped, digitally controlled studio monitor
LF drivers: 2 x 3.5" composite cellulose fiber, custom-made mid-woofers
HF drivers: 1" low distortion, back chambered silk dome tweeter
Acoustic design: DSP tuned bass reflex
Number of amps per speaker: 2
Amplifiers type: High efficiency Class-D
Total power: 100 W RMS
LF power: 70 W RMS
HF power: 30 W RMS
Crossover type: Digital, linear phase
Crossover frequency: 2.8 kHz
Frequency response: 48 Hz to 28 kHz ± 2 dB, 36 Hz to 32 kHz @ -10 dB
Phase response: System remains coherent within +/- 15 from 200 Hz to 20 kHz
Sensitivity at +4 dBu: -6 dBu signal generates a 94 dB SPL @ 1 m
Sensitivity at -10 dBV: -17 dBu signal generates a 94 dB SPL @ 1 m
Continuous, long term SPL free field, 1 m distance, one speaker, ANSI-2034 Weigthed Pink Noise: 97 dB
Peak SPL free field, 1 m distance, one speaker, ANSI-2034 Weigthed Pink Noise: 110.5 dB
Peak SPL, half space, 1 m distance, one speaker, ANSI-2034 Weigthed Pink Noise: 112.5 dB

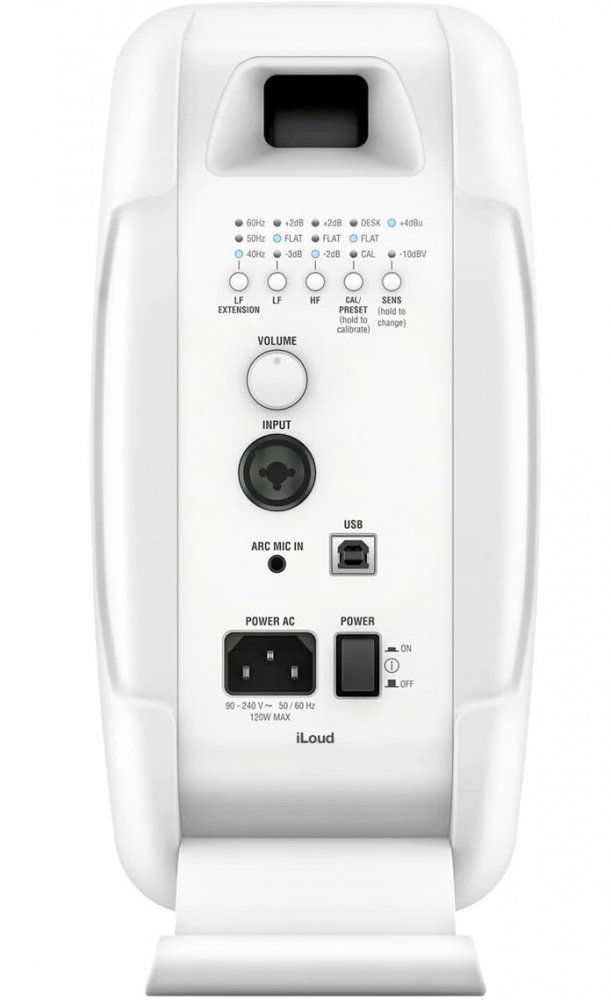

Placement setup: Manual switches for LF Extension, LF trim, HF trim, Desk position
LF extension switch: Sets -3 dB point of the frequency response at 40, 50, 60 or 80 Hz (LFE)
LF switch: Low shelf, +2 dB or -3 dB from 100 Hz down
HF switch: High shelf, +2 dB or -3 dB from 8 kHz up
Desk switch: -4 dB at 160 Hz and +1 dB at 1.8 kHz
Calibration: Fully automatic and built-in digital calibration
Full DSP control
Total Latency (TOF): 2.44 ms
Connectors: 1x combo XLR-1/4" TRS balanced input; 1/8" TS ARC microphone input, 1 x USB type-B, AC POWER socket
Power requirement: 90 to 240 V AC, auto-ranging, 50 or 60 Hz, 120 W max power consumption
Dimensions
Size: 264 mm/10.39" x 160 mm/6.3" x 130 mm/5.12"
Weight (per speaker): 2, 5 kg/5.5 lbs (speaker + foot)
Package includes
1 x iLoud MTM MKII monitor
Power cord
Tilting stand
Horizontal support feet
Locking key
System Requirements
X-MONITOR
Mac (64-bits)
Minimal: Intel Core 2 Duo Processor, 4 GB of RAM, macOS 10.15 or newer.
Windows (64-bits)
Minimal: Intel Core 2 Duo or AMD Athlon 64 X2 Processor, 4 GB of RAM, Windows 10 (64 bit) or newer.
Requires an OpenGL 2 compatible graphics adapter.
