IGS Audio Volfram Limiter
UPC/EAN #5904492024894
MPN #Volfram Limiter
Stereo FET compressor, dual mono version of the legendary 1176 archetype, pure A class circuit

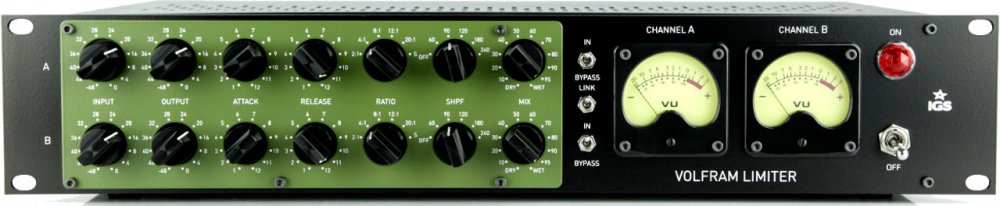

The Volfram Limiter is a dual mono version of the legendary 1176 archetype.
The core of versatility of sound of the 1176 lies in the balance between the Input, Output, and Release knobs.
The Legacy
The 1176 is a very well known and appreciated compressor in professional recording studios all over the world. Whoever heard how this compressor works with vocals will never be able to manage without one. Additionally the Volfram works great with drums, synths and any other sources.
Legendary FET design, two linkable channels, Wet/Dry mix knob for parallel compression.
Wet & Warm
It is a 45dB transistor amplifier equipped with a remarkable limiter. Compression is achieved with the FET transistors. At extreme settings the Volfram adds some pleasant distortion to the output. All manipulators are 12-pole (6-pole for ratio, HPF) switches. It is a pure A class circuit.
Specifications
DEVICE TYPE
Fet Compressor : BF245A, matched transistor
BASIC FEATURES
All stepped manipulators : Yes
Sidechain HPF : 240, 180, 120, 90, 60, Off
INPUT & OUTPUT

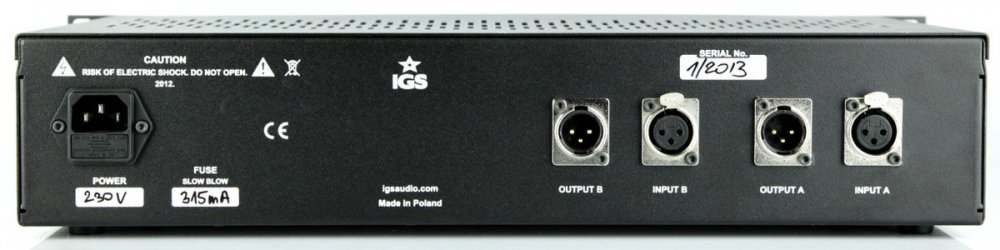

Input Impedance (balanced) : 10k Ohm
Output Impedance (balanced) : 600 Ohm, Carnhill transformer
LEVELS
Operating Level : +4dBu
Max input level : +18dBu
Max output level : +18dBu
Noise Level : 110dB A
Max. gain : 45 dB
Max Gain Reduction : 30 dB
TIME CONSTANTS
Attack : 20-800 microseconds (1 - slow, 12 - fast)
Release : 0.1 - 1,5 s (1 - slow, 12 - fast)
BANDWIDTH
Frequency response : 8 Hz - 22 kHz +/- 0.2dB
DISTORTION (@ 20 HZ - 20 KHZ)
Signal to Noise Ratio : >84dB
THD : 0.12 %
THD+N : 0.19 %
Crosstalk : 100dB
POWER
Power consumption : 20 Wats
Power supply : Internal
PACKING BOX
Dimensions : 70 x 50 x 30 cm
Shipping weight : 8 kg
