IGS Audio Springtime
UPC/EAN #5904492024450
MPN #Springtime 19"
4-channel analog studio reverb - add depth without losing detail - sounds amazing on drums, guitars, piano, vocals and more

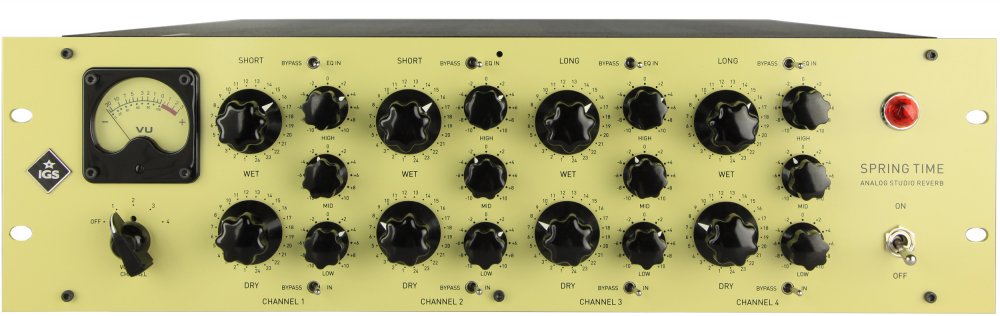

The IGS Springtime is a 4-channel analog studio reverb built using pairs of springs. One short and one long pair. Every channel has separate wet and dry volume knobs. Also, each channel has a 3 band EQ for the wet signal.
What it does
The Springtime fills your room with sound. It glues your mix and enriches the individual tracks. It adds lovely warm color to the midrange. Without EQ, it sounds perfect. With EQ, you can add more definition if you need it.
Everyday use
Try stereo buss send for music tracks to channel 3 and 4 (long springs), mono vocal to channel 1 (short) plus any solo, mono instrument to channel 2 (short). Sometimes even individual instruments can be sent to both kinds of springs in parallel. If you plug it into the insert use 100% Dry and 10% Wet. On sends use 100% Wet, 0% Dry.
Specifications
BASIC FEATURES
WET/DRY Mixer: 24-pole Elma Switches
Boost/Cut Range: +/- 15dB
Hard wire bypass: Yes
INPUT & OUTPUT
Input Impedance (balanced): 10k Ohm
Output Impedance (balanced): 50 Ohm
LEVELS
Operating Level: +22dBU
Dynamic Range: 120dB
Headroom (@ +4dBu): 18dB
BANDWIDTH
Frequency response: 20Hz-20kHz, +/-0.1dB
DISTORTION (@ 20 HZ - 20 KHZ)
THD+N: 0.001 @ 1kHz, +4dBU
FRONT PANEL
VU Meters: Output Reverb Level
POWER
Voltage: 90-240V AC, 10W
PACKING BOX
Dimensions: 480x480x133mm
Shipping weight: 10kg / 20lb
