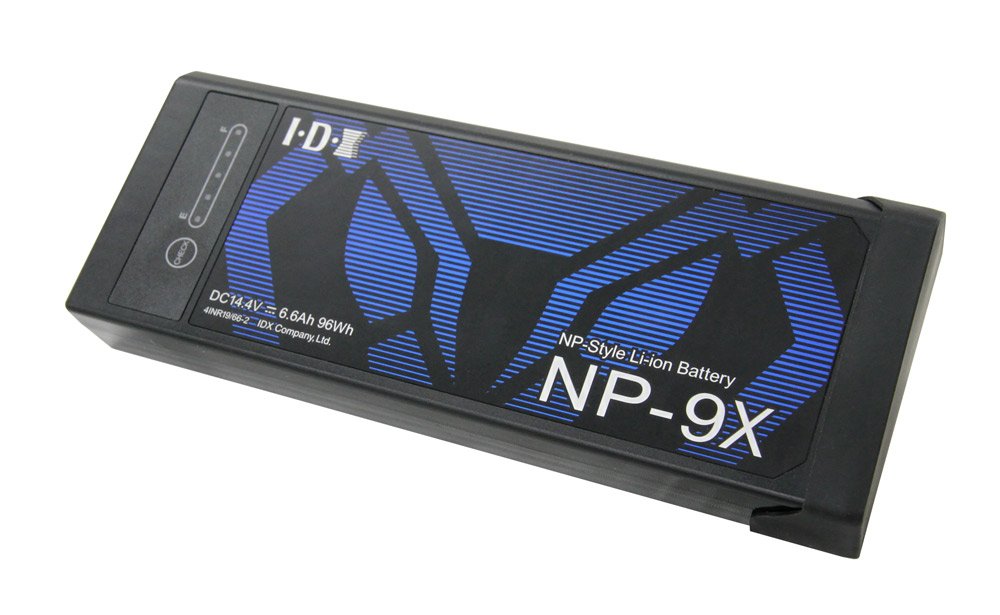

IDX NP-9X
MPN #NP-9X
96Wh Li-Ion NP-Style Battery w 2x D-Tap
NP-9X is the successor of the NP-L7S, the industry standard NP-style battery for powering audio equipment. It now features more capacity at 96Wh, two D-Tap outputs for powering additional accessories, and also a 5 LED power indicator to display remaining capacity in 10% increments. One of the D-Tap port is a D-Tap Advanced, which can also be used to charge the battery with the IDX VL-DT1 D-Tap charger. NP-9X is still compatible with all current accessories and chargers like the JL-2PLUS.
Features
96Wh capacity2x D-Tap OutputsCharging via D-Tap (only with our VL-DT1 charger)5 Power Indicator LEDs (displays remaining in 10% increments)Battery circuit protection ensures the NP-9X is protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperaturesThe highest grade Lithium Ion cells are used to ensure the NP-9X is one of the most reliable NP-style batteries on the market, as well as being the safest and most environmentally friendly in its battery classificationWeighing just over 1 lbs., the NP-9X is compact and durable, ideal for regular use and transportation to and from location
Specifications
Capacity: 96Wh (14.4V/ 6.6Ah)
Max Output Voltage: 16.8V DC
Nominal Voltage: 14.4V DC
Max Discharge Current: 4.6A? ( total of main connector and d-taps )
End Voltage: 11V
D-Tap: 50W each
D-Tap Advanced: Compatible only with IDX VL-DT1 charger
Battery Protection: Over charge, Over discharge, Over current, Thermal protection
Ambient Temperature: To charge: 32F ~ 104F (50F ~ 86F recommended)
To discharge: -4F ~ 113F (50F ~ 104F recommended)
To store: -4F ~ 104F
Dimensions: 7.26(W) x 2.80(H) x 0.97(D) inches
Weight: 1.15 lbs approx.
Included Accessories: Terminal cover
